Antelope Audio Orion 32+ | Gen 3 [15/19] Advanced user tips

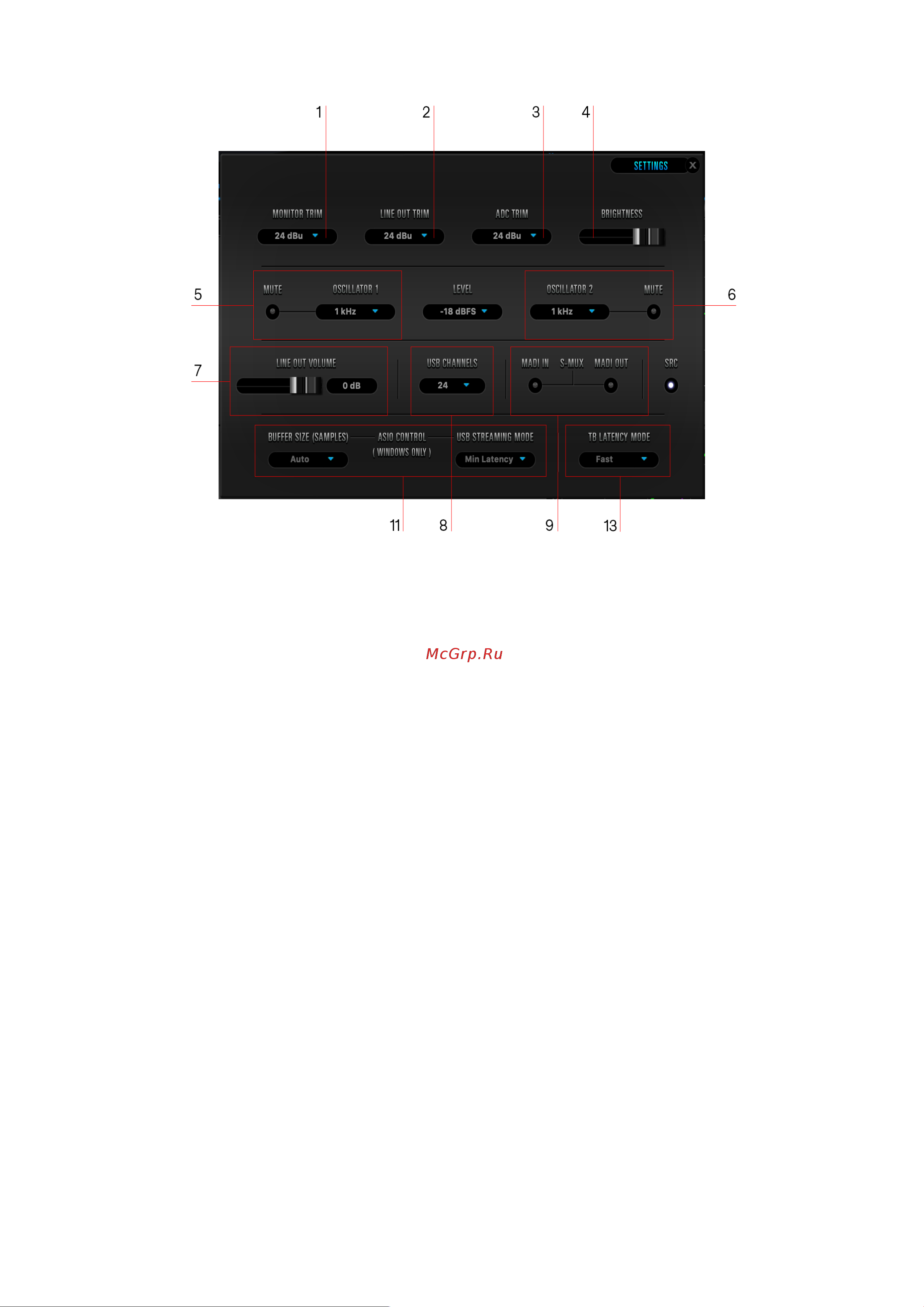

1. Monitor Trim

2. Line Out Trim

3. ADC Trim

4. Screen brightness slider

5. Oscillator 1 and Mute

6. Oscillator 2 and Mute

7. Line Out Volume

8. USB Channels Selector

9. S-MUX (MADI IN / OUT)

11. Windows, only: ASIO Control – Buffer Size & USB Streaming Mode

12. USB Streaming Mode Selector

13. Thunderbolt Latency Mode Selector

7. Advanced User Tips

Ground Loop Hum and Noise

The design of Orion32+ | Gen 3 minimizes the possibility of ground loop hum and noise.

However, we recommend the use of shorter, shielded cables and balanced connections for

all the audio signals of your system. All power cables of the system should be connected

to a dedicated outlet box or power conditioner unit to avoid ground current noise affecting

the audio signal path. It is also advisable to keep the layout of your signal and power

cables separate.

8. In The Box

• Orion32+ | Gen 3 64-channel AD/DA Interface

• Warranty Card
