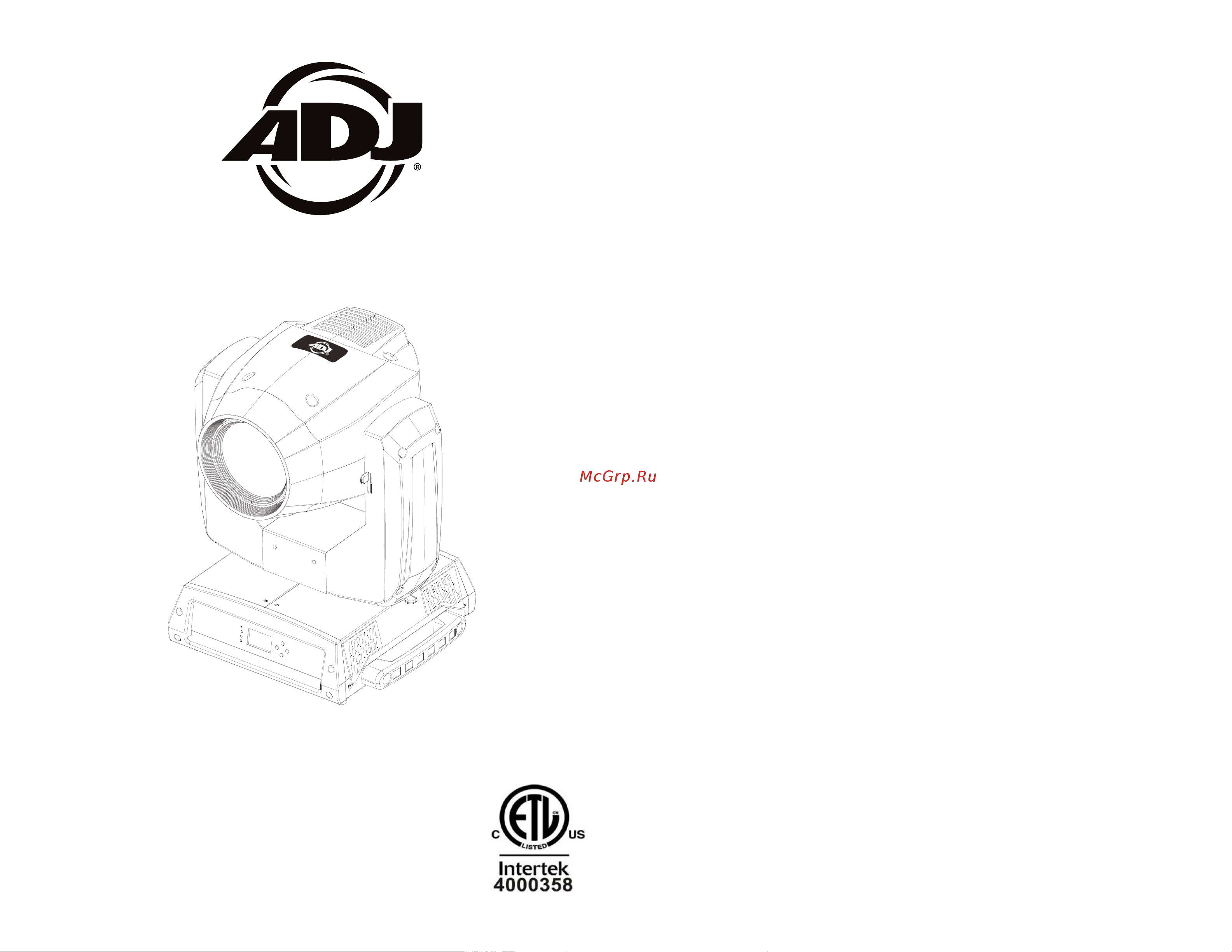

User Instructions
VIZI BSW 300
©2017 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent as-
sembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
Содержание
- Vizi bsw 300 p.1
- User instructions p.1
- Unpacking introduction customer support safety precautions features handling precautions registration mounting 9 cad drawing base layout 0 dmx set up 1 13 dmx control 4 dmx traits 5 22 system menu 3 31 offset menu 2 35 error information 5 dimmer curve chart 6 photometric chart 7 gobo replacement 8 fuse replacement 9 cleaning 9 trouble shooting 0 warranty 1 specifications 2 p.2
- Unpacking p.2
- Table of contents p.2
- Introduction p.2
- Customer support p.2
- Warning p.2
- Vizi bsw 300 p.2
- Caution p.4
- Power supply p.6
- Dmx 512 p.6
- Pin xlr dmx connectors p.7
- Pin 5 do not use p.7
- Pin 4 do not use p.7
- Notice p.7
- Not used p.7
- Ground shield p.7
- Either end of the cable also remember that dmx cable must be daisy chained and cannot be split p.7
- Data true signal p.7
- Data compliment signal p.7
- Conductor 5 pin xlr male in 3 pin xlr female out p.7
- Be sure to follow figures two and three when making your own cables do not use the ground lug on the xlr connector do not con nect the cable s shield conductor to the ground lug or allow the shield conductor to come in contact with the xlr s outer casing grounding the shield could cause a short circuit and erratic behavior p.7
- When longer runs of cable are used you may need to use a terminator on the last unit to avoid erratic behavior a terminator is a 110 120 ohm 1 4 watt resistor which is con nected between pins 2 and 3 of a male xlr connector data and data this unit is inserted in the female xlr connector of the last unit in your daisy chain to terminate the line using a cable terminator adj part number z dmx t will decrease the possibilities of erratic behavior p.7
- Vizi bsw 300 dmx set up p.7
- Special note line termination p.7
- Some manufactures use 5 pin dmx 512 data cables for data transmission in place of 3 pin 5 pin dmx fixtures may be implemented in a 3 pin dmx line when inserting stan dard 5 pin data cables in to a 3 pin line a cable adaptor must be used these adaptors are readily available at most electric stores the chart below details a proper cable conversion p.7
- Pin xlr to 5 pin xlr conversion p.7
- Vizi bsw 300 dmx control p.8
- Vizi bsw 300 17 channel mode p.8
- Use the controller s faders to control the various dmx fixture traits 5 for longer cable runs more than a 100 feet use a terminator on the last fixture p.8
- Universal dmx control p.8
- To control your fixture in dmx mode follow the set up procedures on pages 11 13 as well as the set up specifications that are p.8
- This function allows you to use a univer sal dmx 512 controller a dmx controller allows you to create unique programs tailored to your individual needs 1 the vizi bsw 300 has 2 dmx channel modes an 17 channel mode and 20 channel mode see pages 15 22 for detailed p.8
- Included with your dmx controller included with your dmx controller p.8
- For help operating in dmx mode consult the manual included with your dmx controller p.8
- Follow the instructions on page 24 to select your desired dmx channel mode and dmx address p.8
- Description of the dmx traits description of the dmx traits p.8
- Channel value function p.8
- Vizi bsw 300 17 channel mode p.9
- Channel value function p.9
- Gobo wheel 2 p.10
- Gobo wheel 1 p.10
- Gobo 5 gobo 6 gobo 7 p.10
- Gobo 2 gobo 3 gobo 4 gobo 5 gobo 6 p.10
- Gobo 1 gobo 2 gobo 3 gobo 4 p.10
- Gobo 1 p.10
- Channel value function p.10
- Aperture 1 aperture 3 aperture 2 p.10
- Vizi bsw 300 20 channel mode p.11
- Channel value function p.11
- Gobo wheel 1 p.12
- Gobo 5 gobo 6 gobo 7 p.12
- Gobo 1 gobo 2 gobo 3 gobo 4 p.12
- Channel value function p.12
- Gobo wheel 2 p.12
- This mode can be used as a precaution mode that in case the dmx signal is lost interrupted or power is lost the operating mode chosen in this setup is the running mode the fixture will go into when the dmx signal is lost you can also set this as the running mode you would like the unit to return to when power is applied p.13
- System menu when making adjustments press enter to confirm your setup then press and hold the menu button for at least 3 seconds to exit without making any adjust ments press the menu button the display will lock after 30 seconds press the menu button for 3 seconds to unlock p.13
- Setting adjustment for the gobo wheel 1 glass gobo wheel p.17
- Setting adjustment for gobo wheel 1 glass gobo wheel p.17
- Setting adjustment for color wheel 2 p.17
- Setting adjustment for color wheel 1 p.17
- R gobo p.17
- Adjustment of the tilt home position p.17
- Adjustment of the pan home position p.17
- Setting adjustment for the focus p.18
- Setting adjustment for the 2nd prism p.18
- Setting adjustment for the 1st prism p.18
- Setting adjustment for gobo wheel 2 p.18
- R pris p.18
- Angle fros p.18
- Setting adjustment for the rotating prism p.18
- Setting adjustment for the frost filter p.18
- Vizi bsw 300 photometric chart p.19
- Vizi bsw 300 dimmer curve chart p.19
- Adj products llc www adj com vizi bsw 300 instruction manual page 36 adj products llc www adj com vizi bsw 300 instruction manual page 37 p.19
- Fixture cleaning p.20
- The stepper motor might be damaged or the cable connected to the pcb is broken p.21
- The motor s drive ic on the pcb might be out of condition p.21
- See page 36 for error warnings contact adj customer service p.21
- One of the channels is not working well p.21
- Not responding to dmx control p.21
- Interface circuit interface circuit p.21
- Error warnings p.21
- Check the power connection and main fuse 2 be sure the fuse holder is completely and properly seated p.21
- Check the dmx connectors cables to see if they are linked prop erly 2 if the dmx led is on and no response to the channel check the address settings and the dmx controller polarity p.21
- Adj products llc www adj com vizi bsw 300 instruction manual page 40 adj products llc www adj com vizi bsw 300 instruction manual page 41 p.21
- Vizi bsw 300 warranty p.21
- Vizi bsw 300 trouble shooting p.21
- Unit does not work no light output and the fan does not work p.21
- Try using another dmx controller 4 check to see if the dmx cables run near or run alongside to high voltage cable it may cause damage or interference to dmx p.21
- Trouble shooting listed below are a few common problems that you may encounter with solutions p.21
- Web www adj com e mail info americandj com p.22
- The netherlands p.22
- Tel 323 582 2650 fax 323 725 6100 p.22
- Tel 31 45 546 85 00 fax 31 45 546 85 99 p.22
- Service adjgroup eu www adj eu p.22
- S eastern ave los angeles ca 90040 usa p.22
- Model vizi bsw 300 p.22
- Junostraat 2 p.22
- Ew kerkrade p.22
- Adj products llc p.22
- A d j supply europe b v p.22
