ADJ Products, LLC - www.adj.com - Vizi BSW 300 Instruction Manual Page 10 ADJ Products, LLC - www.adj.com - Vizi BSW 300 Instruction Manual Page 11
Power Supply: The ADJ® Vizi BSW 300 contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged into
the power source. With this switch there is no need to worry about the
correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fix-
ture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models
of dierent manufactures to be linked together and operate from a
single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The Vizi BSW 300 can be controlled via DMX-512 proto-
col. The Vizi BSW 300 has 2 DMX channel modes; 17 channel mode,
and 20 channel mode. The DMX address is set electronically using the
controls on the front panel of the unit. Your unit
and your DMX controller require a approved DMX-
512 110 Ohm Data cable for data input and data
output (Figure 1). We recommend Accu-Cable DMX
cables. If you are making your own cables, be sure
to use standard 110-120 Ohm shielded cable (This
cable may be purchased at almost all professional
sound and lighting stores). Your cables should be
made with a male and female XLR connector on
Vizi BSW 300 DMX Set Up
Figure 1

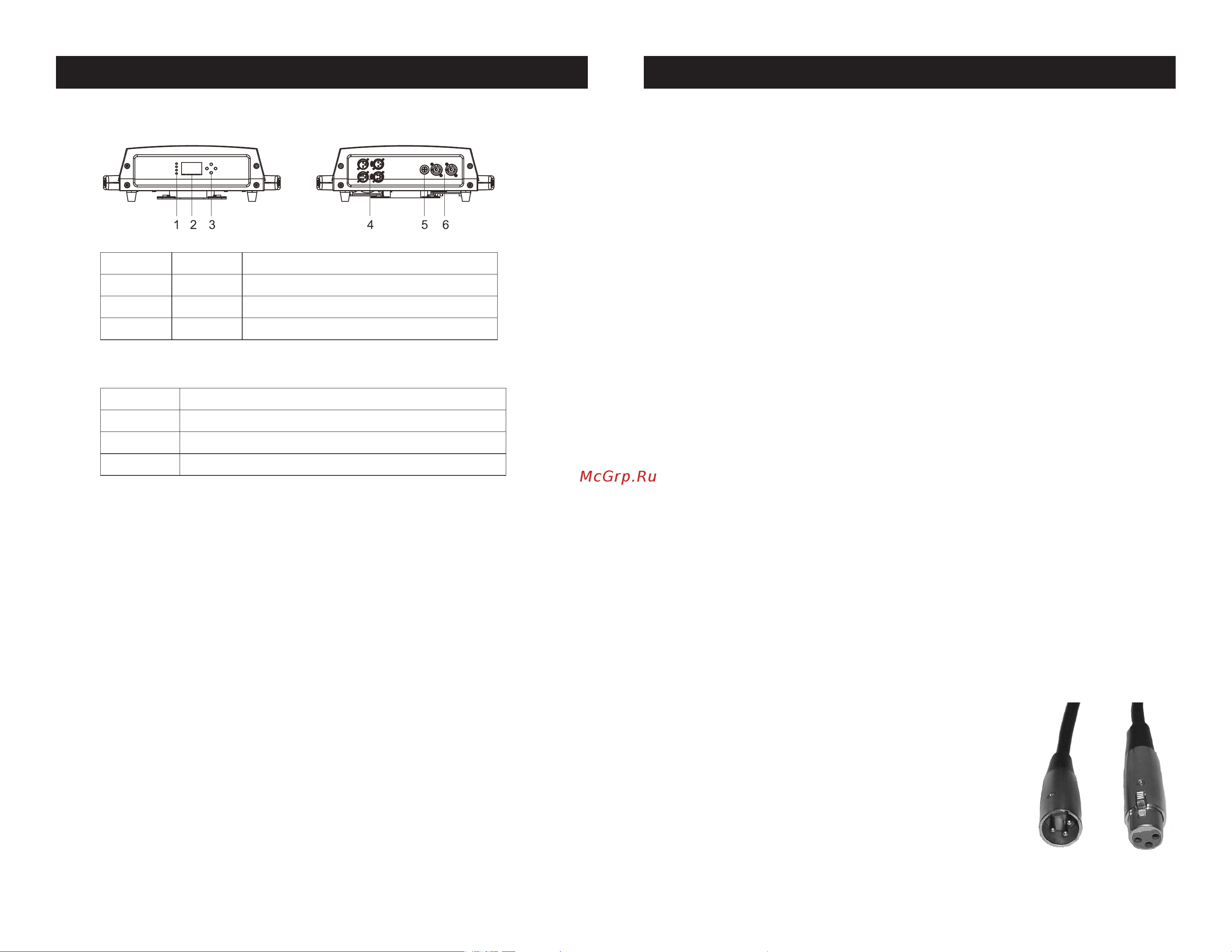

Vizi BSW 300 Base Layout
Frontview Rearview
1. LED:
MASTER On Mastermode
SL AVE On Slavemode
SOUND On Soundactivation
DMX On DMXinputpresent
2. Display:Toshowthevariousmenusandtheselectedfunction.
3. Button:
MENU Toenter/exit the menu, and move backwards in the menu
UP To moveupinthemenu
DOWN To movedowninthemenu
ENTER Toperformthedesiredfunctions
4. DMXinput/output: For DMX512operation,3 / 5‐pinXLRplug cable tolinktheunitstogether
5. Fuse(T10A):Protects theunitfromdamageofovercurrent.
6. PowerCable:Toconnect to themainssupply ornextxture.
