ADJ Products, LLC - www.adj.com - Vizi BSW 300 Instruction Manual Page 19ADJ Products, LLC - www.adj.com - Vizi BSW 300 Instruction Manual Page 18
Vizi BSW 300 20 Channel Mode
Channel Value Function
1 0 - 255 PAN MOVEMENT
2 0 - 255 PAN FINE
3 0 - 255 TILT MOVEMENT
4 0 - 255 TILT FINE
5 COLOR WHEEL 1
0 - 7 WHITE
8 - 15 RED
16 - 23 BLUE
24 - 31 LIGHT GREEN
32 - 39 YELLOW
40 - 47 ORANGE
48 - 55 MAGENTA
56 - 64 LIGHT BLUE
65 - 127 COLOR INDEXING
128 - 189 CLOCKWISE ROTATION FAST - SLOW
190 - 193 STOP
194 - 255 COUNTER-CLOCKWISE ROTATION SLOW - FAST
6 COLOR WHEEL 2
0 - 7 WHITE
8 - 15 PINK
16 - 23 CTO 3200K
24 - 31 UV PURPLE
32 - 39 YELLOW
40 - 47 GREEN
48 - 55 CTO 5600K
56 - 64 CYAN
65 - 127 COLOR INDEXING
128 - 189 CLOCKWISE ROTATION FAST - SLOW
190 - 193 STOP
194 - 255 COUNTER-CLOCKWISE ROTATION SLOW - FAST
7 GOBO WHEEL 1 (GLASS GOBO’S)
0 - 10 OPEN
11 - 21 GOBO 1
22 - 32 GOBO 2
33 - 43 GOBO 3
44 - 54 GOBO 4
55 - 65 GOBO 5
66 - 76 GOBO 6
77 - 87 GOBO 7
Vizi BSW 300 17 Channel Mode
Channel Value Function
17 SPECIAL FUNCTIONS
200 - 209 RESET ALL MOTORS
210 - 249 NO FUNCTION
250 - 255 SOUND ACTIVE

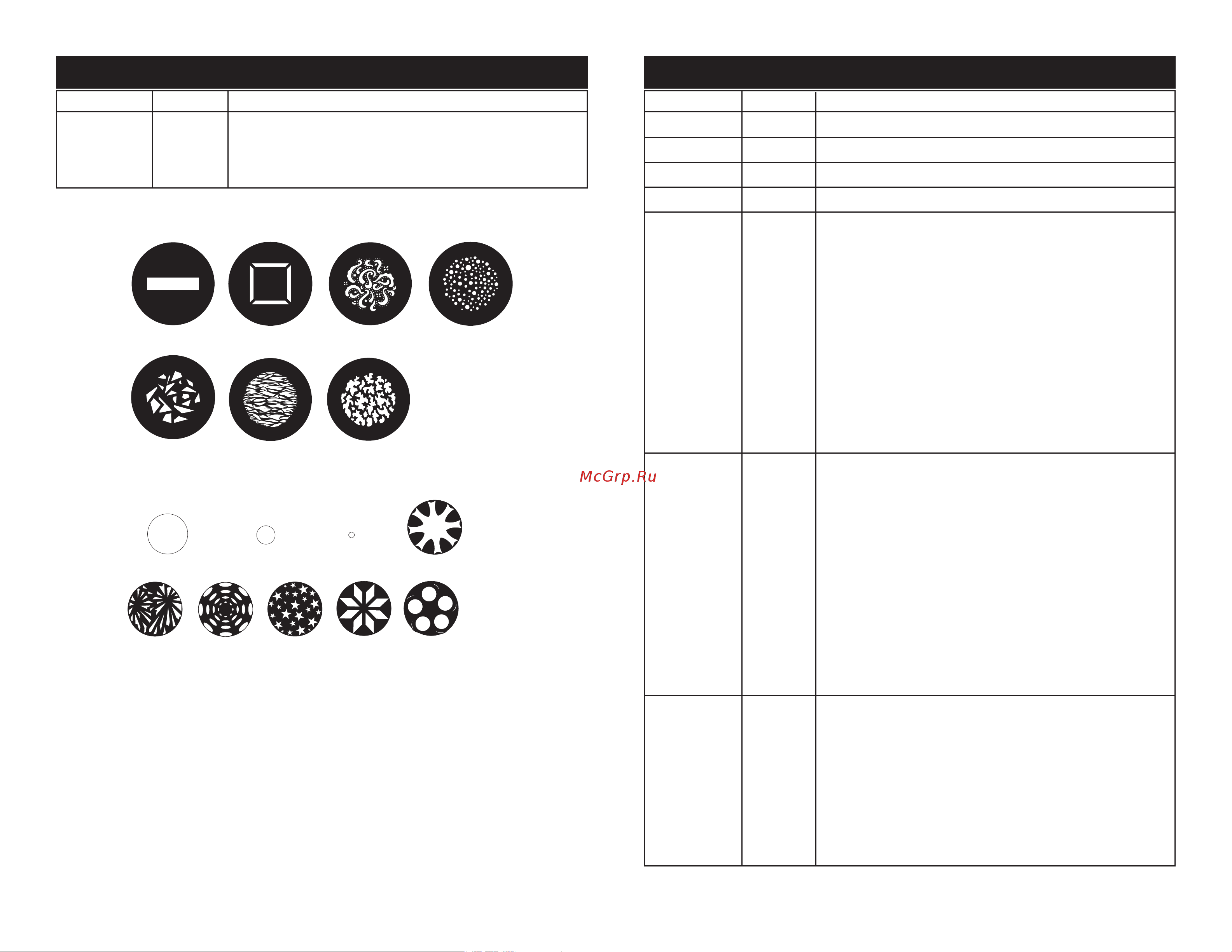

Gobo 1 Gobo 2 Gobo 3 Gobo 4
Gobo 5 Gobo 6 Gobo 7
Gobo 1
Gobo 2
Gobo 3 Gobo 4
Gobo 5 Gobo 6
Aperture 1 Aperture 3Aperture 2
GOBO WHEEL 1
GOBO WHEEL 2
