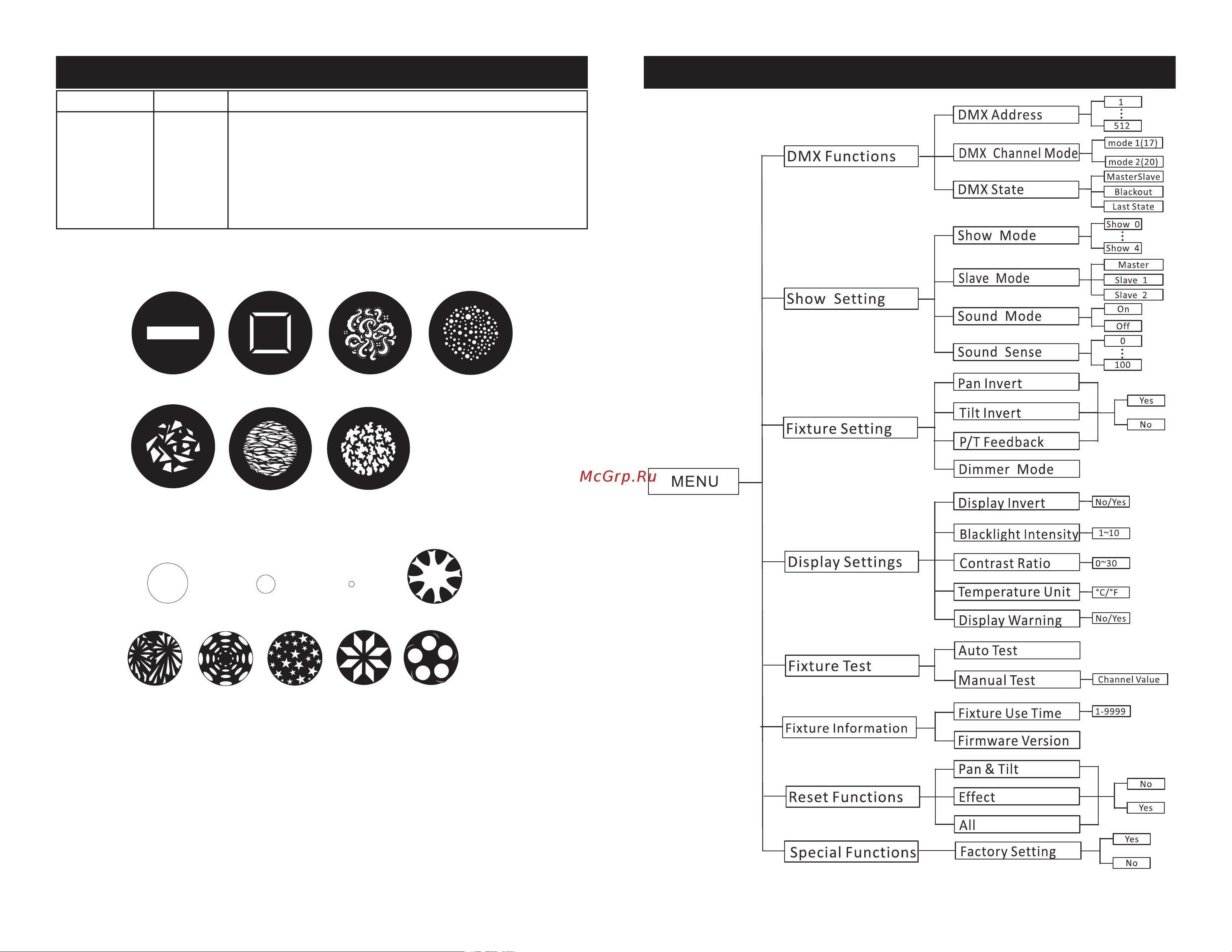

ADJ Products, LLC - www.adj.com - Vizi BSW 300 Instruction Manual Page 23ADJ Products, LLC - www.adj.com - Vizi BSW 300 Instruction Manual Page 22
Vizi BSW 300 System Menu Vizi BSW 300 20 Channel Mode
Channel Value Function
20 SPECIAL FUNCTIONS
160 - 169 EFFECT RESET (PRISM, FOCUS, & FROST
170 - 199 NO FUNCTION
200 - 209 RESET ALL MOTORS
210 - 249 NO FUNCTION
250 - 255 SOUND ACTIVE
Gobo 1 Gobo 2 Gobo 3 Gobo 4
Gobo 5 Gobo 6 Gobo 7
Gobo 1
Gobo 2
Gobo 3 Gobo 4
Gobo 5 Gobo 6
Aperture 1 Aperture 3Aperture 2
GOBO WHEEL 1
GOBO WHEEL 2
