ADJ Products, LLC - www.adj.com - Vizi BSW 300 Instruction Manual Page 7
ADJ Products, LLC - www.adj.com - Vizi BSW 300 Instruction Manual Page 6

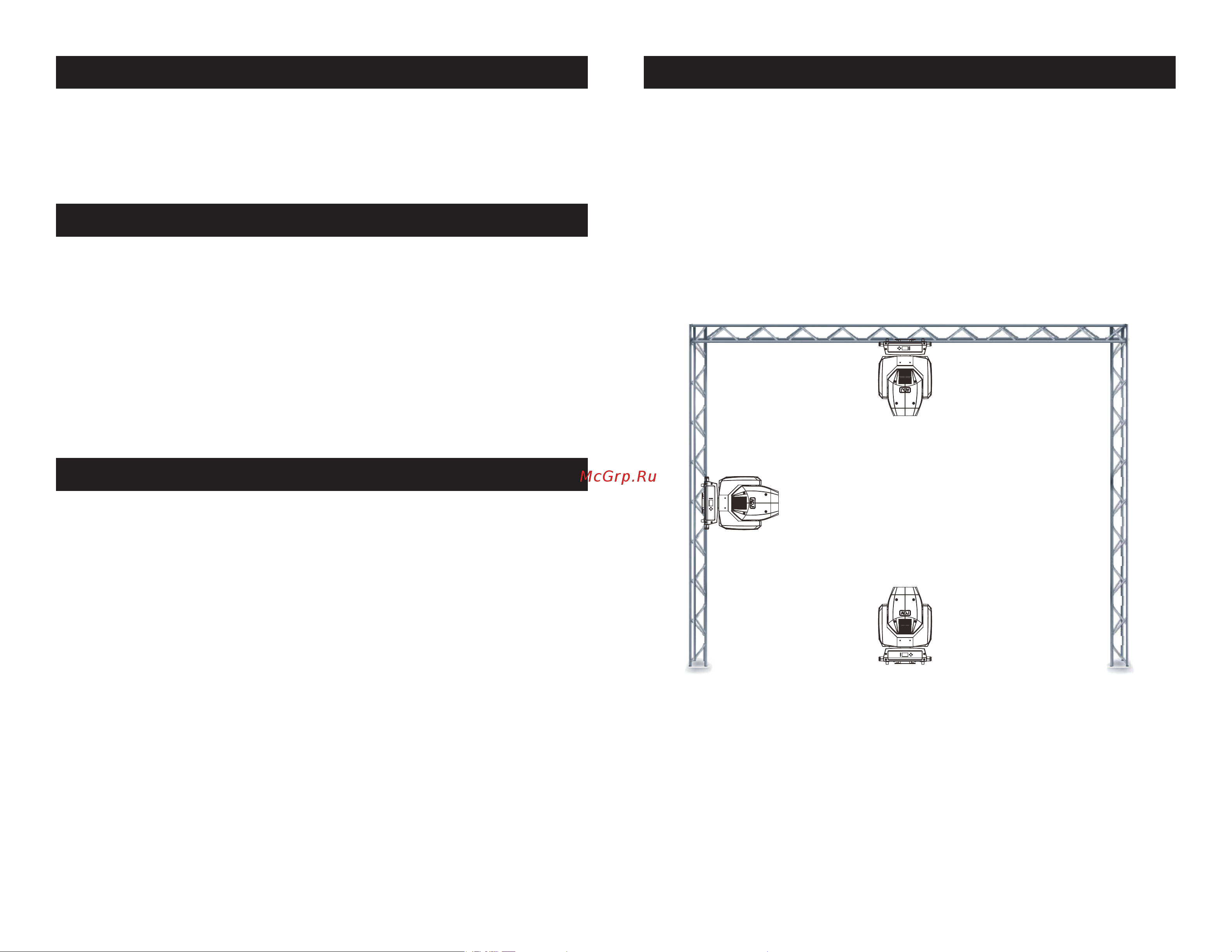

The Vizi BSW 300 is fully operational in three dierent mounting posi-
tions, hanging upside-down from a ceiling, sideways on trussing, or
set on a at level surface. Be sure this xture is kept at least 12m
(40ft) away from any ammable materials (decoration etc.). Always
use and install the supplied safety cable as a safety measure to
prevent accidental damage and/or injury in the event the clamp fails
(see next page). Never use the carrying handles for secondary attach-
ment.
Vizi BSW 300 Mounting
When installing the unit, the trussing or area of installation must be
able to hold 10 times the weight without any deformation. When
installing the unit must be secured with a secondary safety attach-
ment, e.g. and appropriate safety cable. Never stand directly below
the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculat-
ing working load limits, installation material being used, and perodic
safety inspection of all installation material and unit. If you lack these
qualications, do not attempt the installation yourself.
These installaiton should be checked by a skilled person once a year.
The Vizi BSW 300 carries a two year (730 Day) limited warranty.
Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) number.
The R.A. number must be clearly written on the outside of the return
package. A brief description of the problem as well as the R.A. num-
ber must also be written down on a piece of paper and included in the
shipping carton. If the unit is under warranty, you must provide a copy
of your proof of purchase invoice. You may obtain a R.A. number by
contacting our customer support team on our toll free customer sup-
port number. All packages returned to the service department not dis-
playing a R.A. number on the outside of the package will be returned
to the shipper at the shippers cost.
Vizi BSW 300 Product
Registration
To optimize the performance of this product, please read these operating
instructions carefully to familiarize yourself with the basic operations of
this unit. These instructions contain important safety information regard-
ing the use and maintenance of this unit. Please keep this manual with
the unit, for future reference.
Vizi BSW 300 General Instructions
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact ADJ®.
During operation the housing may become extremely hot. Avoid touch-
ing the unit with bare hands while in use.
ADJ® will not accept any liability for any resulting damages caused by
the non-observance of this manual or any unauthorized modication
to this unit.
Vizi BSW 300 Handling Precautions
