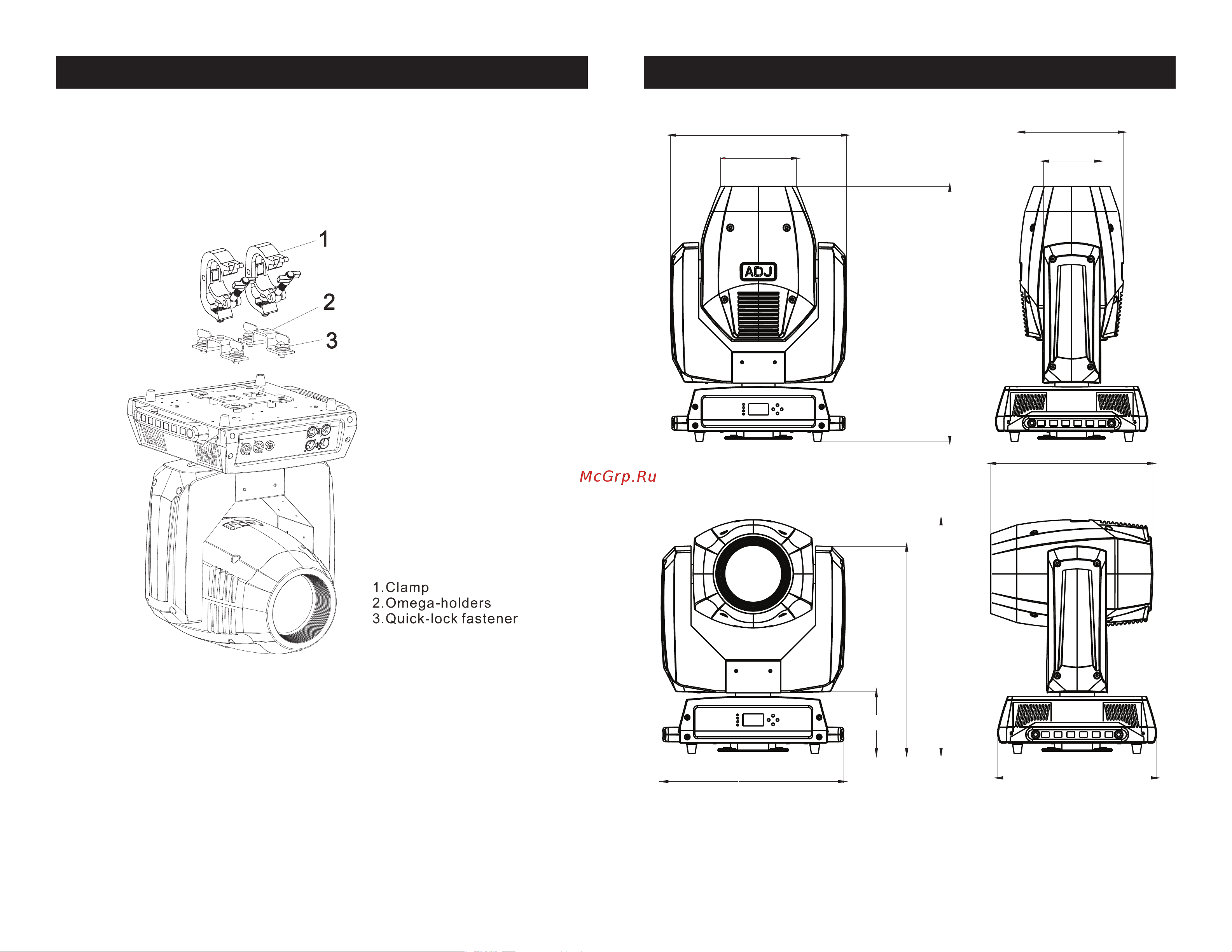

ADJ Products, LLC - www.adj.com - Vizi BSW 300 Instruction Manual Page 8
ADJ Products, LLC - www.adj.com - Vizi BSW 300 Instruction Manual Page 9
Screw one clamp each via a M12 screw and nut into the
Omega holders. Insert the quick-lock fasteners of the Omega
holder’s into the respective holes on the bottom of the Vizi BSW
300. Tighten the quick-lock fasteners fully clockwise. Install the
second Omega holder. Pull the safety-cable through the open-
ings located on the base plate and over the trussing system or
a safe xation spot. Insert the end in the carabine and tighten
the safety screw.
Vizi BSW 300 Mounting
NOTICE: The suitable enviromental temperature for this light-
ing xture is between -25˚ C to 45˚ C. Do not place this lighting
xture in an enviroment where the temperatures are under or
above the temperatures stated above. This will allow the xture
to run at its best and help prolong the xture life.
Vizi BSW 300 CAD Drawing
478.7mm/18.85”
424.9mm/16.72”
370mm/14.55”
126.6mm/5”
331.7mm/13”
325.5mm/12.80”
376.3mm/14.80”
162.1mm/6.40”
545.1mm/21.50”
221.2mm/8.70”
119.9mm/4.70”
