Operating Manual - MX-508 Stereo Microphone/Line Mixer

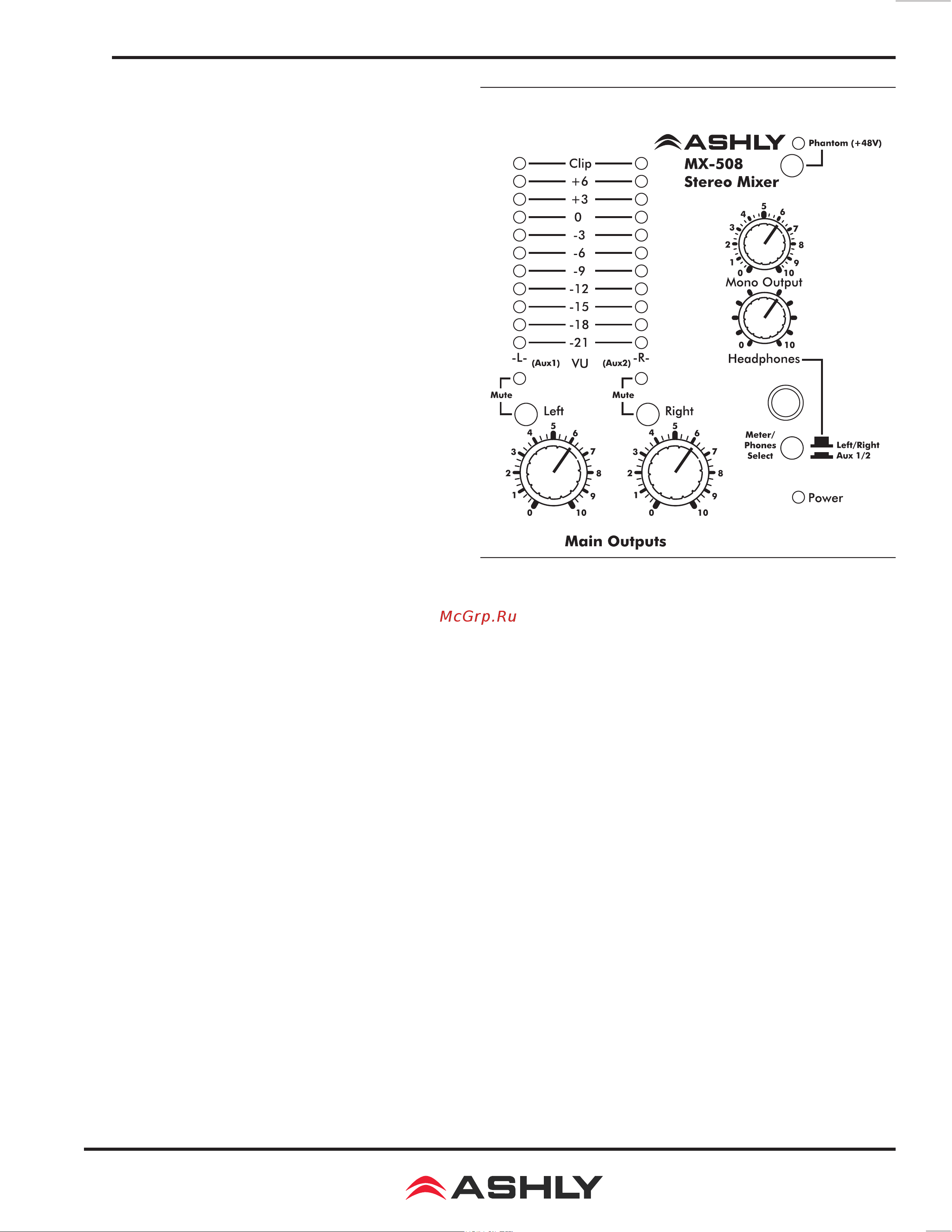

410 Output Meters

A pair of peak reading 10 segment LED meters

are used to indicate output level Green LED's are used

below 0 VU, yellow above 0 VU and red LED's indicate

clipping 0 VU is equivalent to +4 dBu (1228Vrms)

This meter pair is switchable (with the headphone output)

to either the Main Left and Right outputs or the Aux 1

and 2 outputs The red clip LED's will illuminate if the

summing amplifiers are clipping even if the main output

controls are off, in which case one or more inputs must

be turned down Note: The output meters are accurately

calibrated to the transformerless output levels, but not

necessarily the transformer-balanced outputs. See note

on Transformer Balanced Outputs.

411 Main Output Level

These controls determine the level of both

transformer balanced and transformerless output stages

for the Main Left and Right outputs

412 Main Output Mutes

These switches turn off both the transformer-

balanced outputs as well as the transformerless 1/4"

stereo outputs, and indicate the mute mode by lighting the

red LED near the switch The headphone and metering

functions continue uninterrupted even though there is no

signal on the mixer's main outputs.

413 Phantom Power Switch

This front panel switch enables the 48 Volt phantom

power supply for condenser microphones which can use this

feature One switch controls all the inputs If you have a mix

of condenser and dynamic microphones, the phantom power

will not affect the operation of the dynamic mics

414 Mono Output Level

This control adjusts the level of the summed mono

output It is completely independent of the Main Left and

Right masters

415 Headphones Level

This control adjusts the level of the designated output

signal (Mains or Aux) to the headphone jack

416 Meter/Phones Select

This switch selects either the Main Left/Right outputs or

the Aux 1/Aux 2 outputs to the LED meters and the headphone

jack

417 Headphone Output

This front panel 1/4" TRS connector feeds a standard

set of stereo headphones A selector switch that also controls

the level meter allows monitoring the main or Aux outputs
