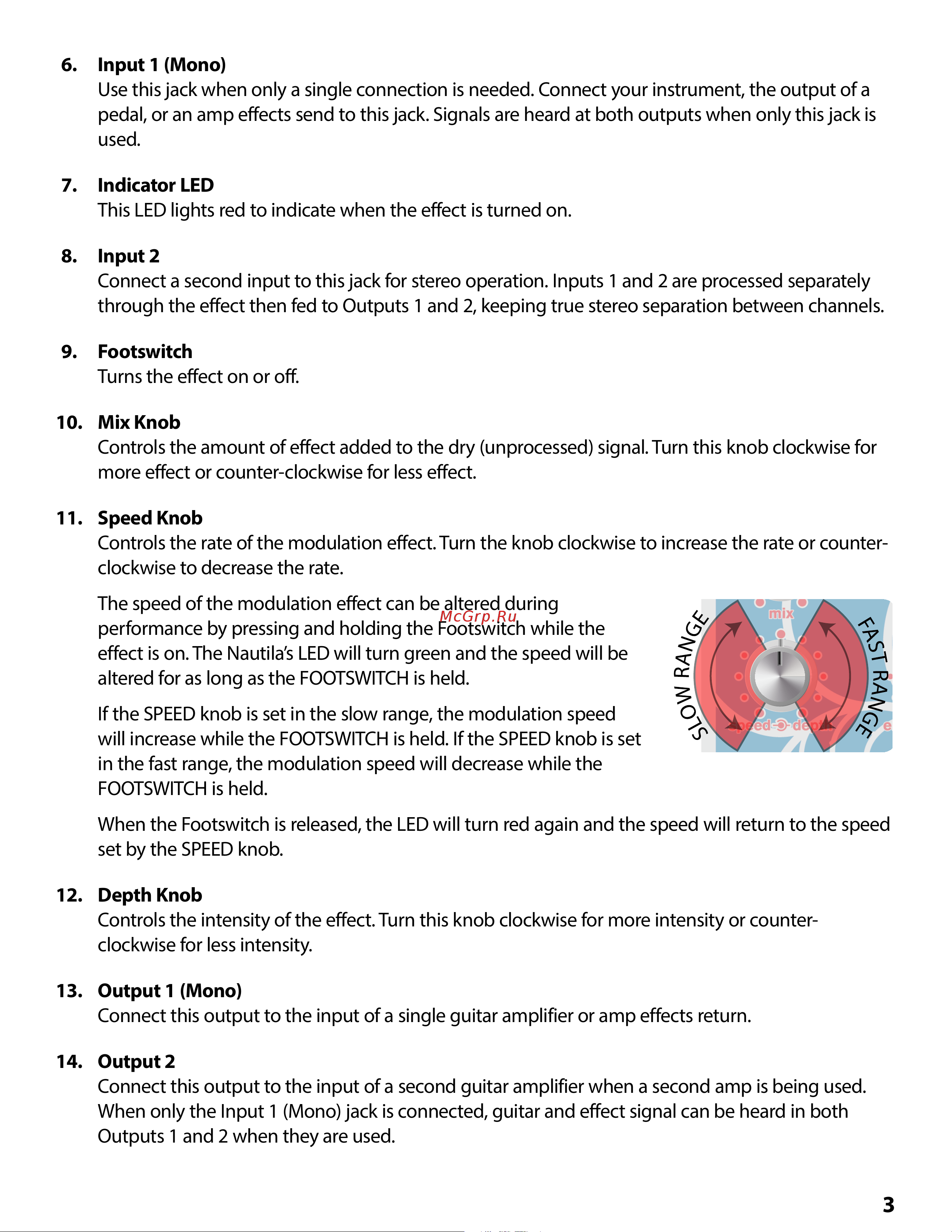

6. Input 1 (Mono)

Use this jack when only a single connection is needed. Connect your instrument, the output of a

pedal, or an amp effects send to this jack. Signals are heard at both outputs when only this jack is

used.

7. Indicator LED

This LED lights red to indicate when the effect is turned on.

8. Input 2

Connect a second input to this jack for stereo operation. Inputs 1 and 2 are processed separately

through the effect then fed to Outputs 1 and 2, keeping true stereo separation between channels.

9. Footswitch

Turns the effect on or off.

10. Mix Knob

Controls the amount of effect added to the dry (unprocessed) signal. Turn this knob clockwise for

more effect or counter-clockwise for less effect.

11. Speed Knob

Controls the rate of the modulation effect. Turn the knob clockwise to increase the rate or counter-

clockwise to decrease the rate.

The speed of the modulation effect can be altered during

performance by pressing and holding the Footswitch while the

effect is on. The Nautila’s LED will turn green and the speed will be

altered for as long as the FOOTSWITCH is held.

If the SPEED knob is set in the slow range, the modulation speed

will increase while the FOOTSWITCH is held. If the SPEED knob is set

in the fast range, the modulation speed will decrease while the

FOOTSWITCH is held.

When the Footswitch is released, the LED will turn red again and the speed will return to the speed

set by the SPEED knob.

12. Depth Knob

Controls the intensity of the effect. Turn this knob clockwise for more intensity or counter-

clockwise for less intensity.

13. Output 1 (Mono)

Connect this output to the input of a single guitar amplifier or amp effects return.

14. Output 2

Connect this output to the input of a second guitar amplifier when a second amp is being used.

When only the Input 1 (Mono) jack is connected, guitar and effect signal can be heard in both

Outputs 1 and 2 when they are used.
