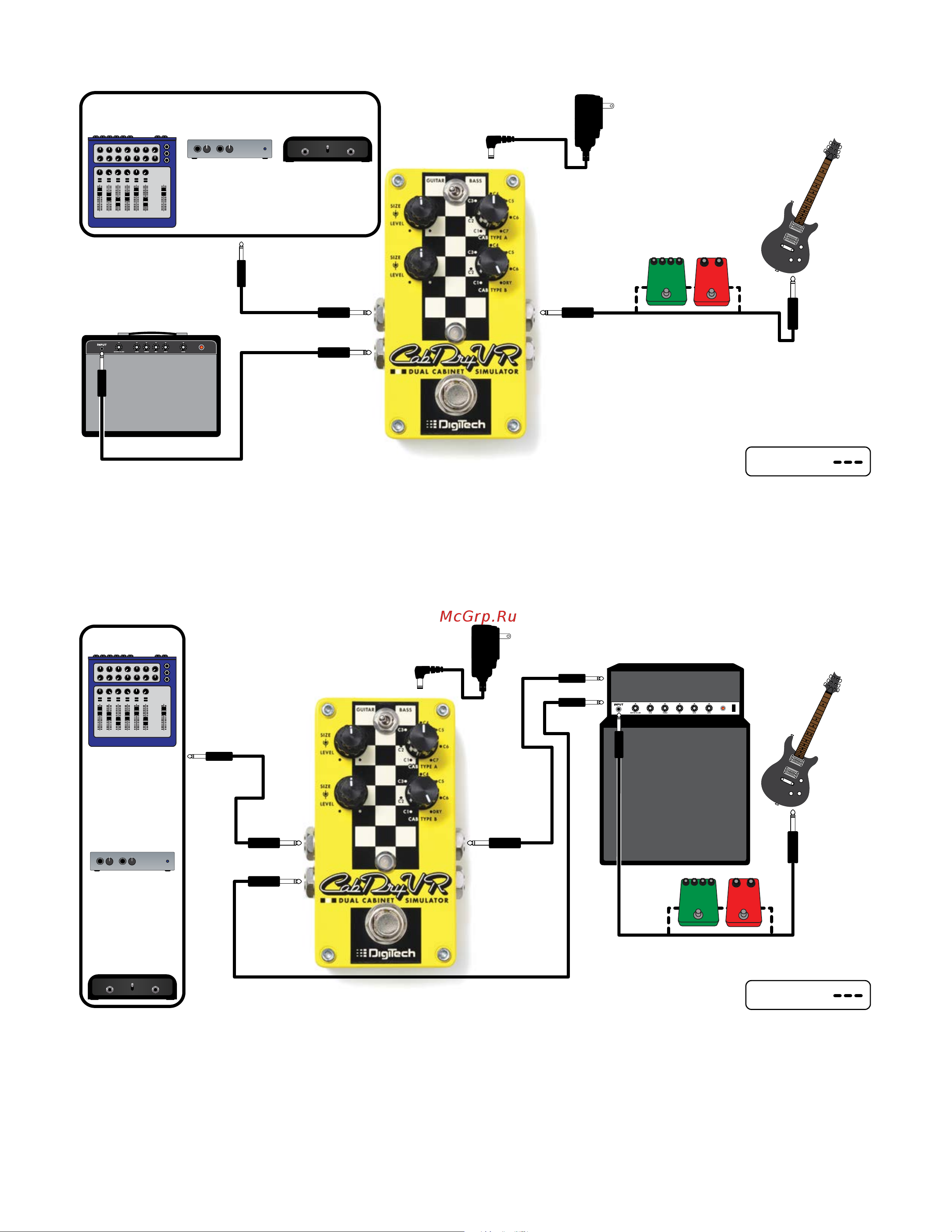

Single Instrument – Single Cabinet + Dry Out
CAB A IN
IN
CAB A OUT
CAB B OUT (Dry)
Optional
Use only unbalanced TS instrument cables for audio connections.
IN
Instrument
OUT
Other Effects
or DI
Box
INPUT THRU
0dB
20dB
40dB
PAD
or Audio
Interface...
Amp
Mixer...
I 2 3 4 5 6 M
Line In
1
Line In
2
HARMAN
Power Supply
(sold separately)
Single Instrument – Amp Preamp/FX Loop
Amp
Optional
Use only unbalanced TS instrument cables for audio connections.
Instrument
OUT
Other Effects
IN
or DI
Box
INPUT THRU
0dB
20dB
40dB
PAD
Mixer...
I 2 3 4 5 6 M
or Audio
Interface...
Line In
1
Line In
2
CAB A IN
CAB A OUT
FX SND
FX RTN
CAB B OUT (Dry)
IN
HARMAN
Power Supply
(sold separately)
NOTE: Using this application, the guitar signal will pass through the amplifier's preamp before being sent
through the CabDryVR and on to the mixer or audio interface preamp. The CAB B output should be set to Dry so
that the real amplifier will operate normally, without any amp simulation.
