If the shoulder portion of a passenger belt with a

free‐falling latch plate is pulled out all the way, the

child restraint locking feature may be engaged.

If this happens, let the belt go back all the way and

start again.

Engaging the child restraint locking feature in the

right front seating position may affect the

passenger sensing system, if equipped. See

Passenger Sensing System

on page 2‑84

for

more information.

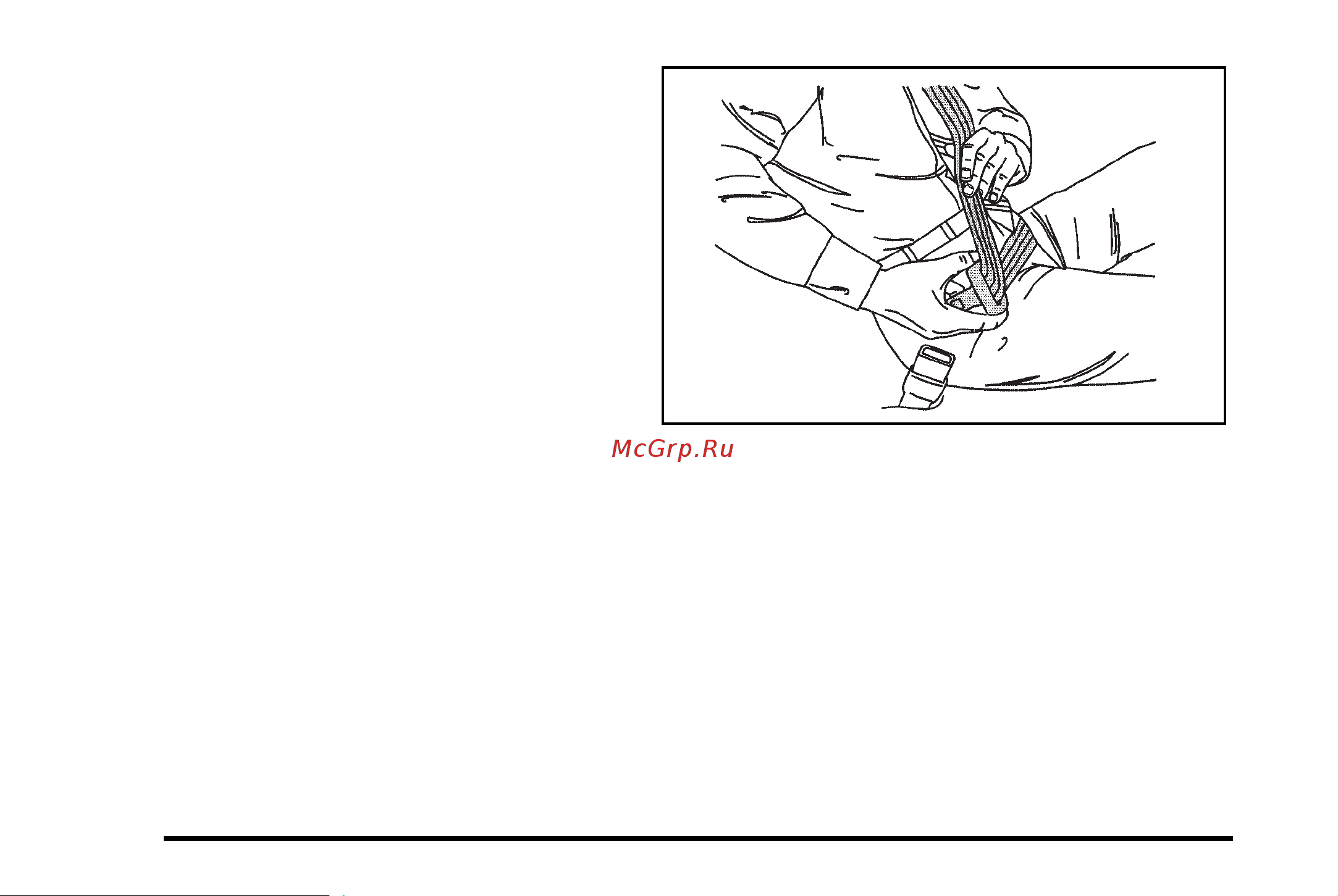

If the belt stops before it reaches the buckle, for

lap‐shoulder belts with cinching latch plates, tilt the

latch plate and keep pulling the safety belt until it

can be buckled.
