HLE 71, HLE 71K
English
11
WARNING
The gearbox becomes hot during
operation. Never touch the gear housing
– risk of burns!
WARNING
Never grab the blade when making
adjustments – risk of injury!

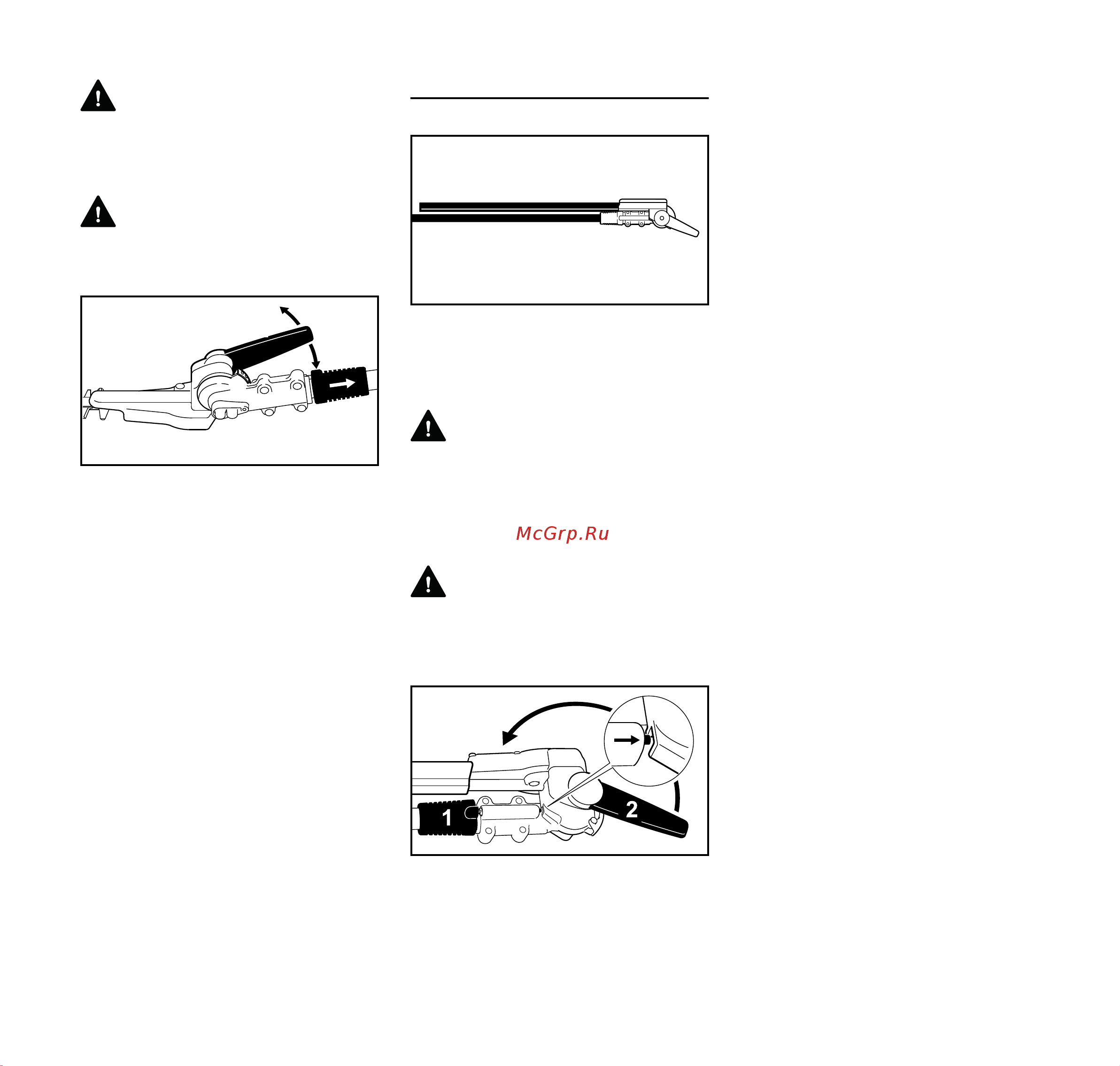

N Pull back the sliding sleeve (1) and
use the lever (2) to move the joint by
one or more holes in the perforated
strip
N Release the sliding sleeve (1) again
and allow the bolt to engage in the
perforated strip (3)
When the bolt is engaged (after
completion of adjustment), the sliding
sleeve will be flush with the housing
again.
Transport position
For compact transport of the machine, in
this version, the cutter bar can be swung
parallel to the shaft and locked in this
position.
WARNING
The cutter bar must only be moved from
working position into transport position
or the other way around when the motor
is switched off and the blades are
covered by the blade guard.
WARNING
The gearbox becomes hot during
operation. Never touch the gear housing
– risk of burns!
N Switch off the motor
N Slide on the blade guard
N Pull back the sliding sleeve (1) and
use the lever (2) to pivot the joint
upward toward the shaft until the
cutter bar is parallel to the shaft
N Release the sliding sleeve (1) again
and allow the bolt to engage in the
position provided for this in the
housing
When the bolt is engaged (after
completion of adjustment), the sliding
sleeve will be flush with the housing
again.
3
277BA009 KN
2
1
277BA010 KN
3
277BA011 KN
