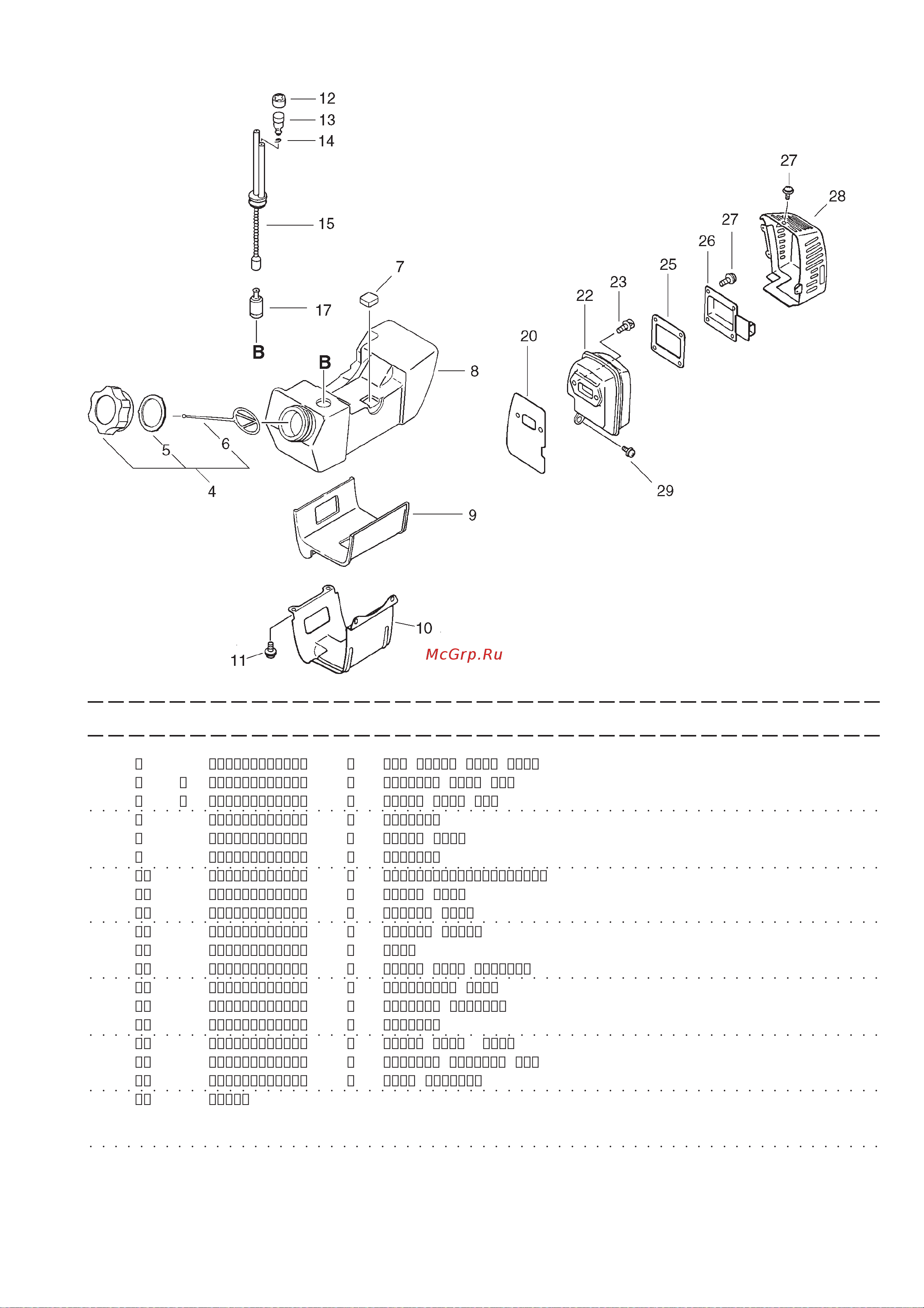

- 7 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
4 131004‑55530 1 CAPASSY,FUELTANK
5 + 131016‑55830 1 GASKET,FUELCAP
6 + 131051‑56030 1 CLIP,FUELCAP
7 131923‑11120 3 CUSHION
8 131010‑46931 1 TANK,FUEL
9 131924‑43130 1 CUSHION
10 131910‑43130 1 BRACKET,FUELTANK(BL)
11 900238‑05014 2 SCREW5*14
12 131328‑40630 1 COVER,VENT
13 131300‑56430 1 VALVE,CHECK
14 132013‑26630 1 CLIP
15 132010‑43130 1 PIPE,FUEL(INNER)
17 131205‑19830 1 STRAINER,FUEL
20 145510‑42231 1 GASKET,MUFFLER
22 145610‑47530 1 MUFFLER
23 900162‑05020 2 BOLT,H.S.5*20
25 145866‑43131 1 GASKET,MUFFLERLID
26 145867‑47530 1 LID,MUFFLER
27 900238‑04010 7 SCREW4*10
28 145871‑43130 1 COVER,MUFFLER
29 900238‑05014 1 SCREW5*14
SRM-4605 5 Muffler, Fuel Tanks
