Husqvarna 137 (2005) parts [2/6] R parts list

Husqvarna 137 (2005) parts [2/6] R parts list
1

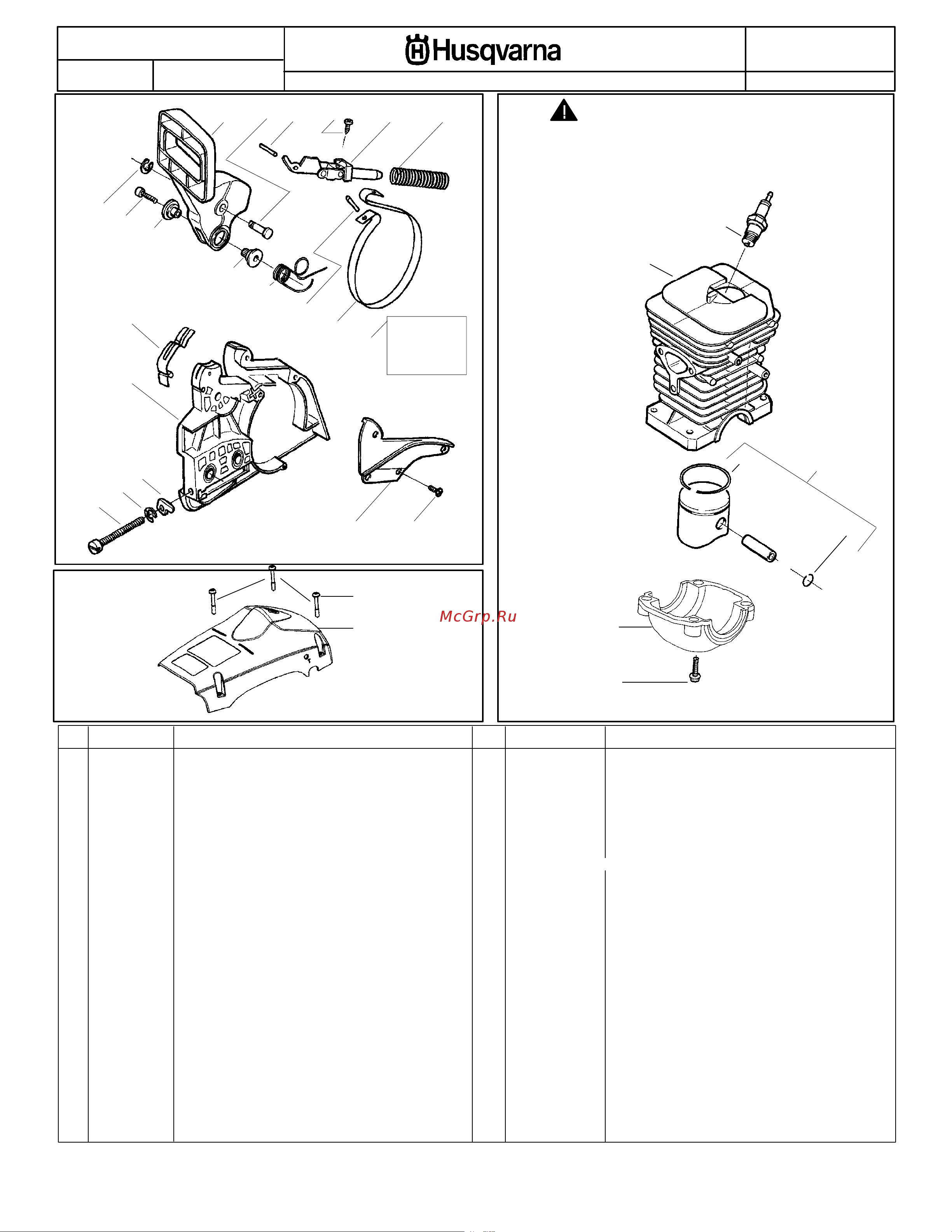

Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530165405--01
137 Export
DATE
12/07/04
Replaces
r PARTS LIST
10/28/04 -- 530165405--01
1 530071348 Kit-- Lever & Link Assy.
2 530029879 Pin--Pivot
3 530015915 Pin--Link
4 53001591 1 Screw
5 530054741 Assy--Front Link
6 530016237 Spring--Chain Brake
7 530024419 Retainer
8 530016384 Screw
9 530056531 Journal--Right
10 530029881 Journal--Left
1 1 530015910 Spring--Handguard
12 530015913 Pin--Spring
13 530052232 Band--Brake
14 530054802 Assy--Chain Brake
15 530029878 Spring--Position
16 530049483 Cover--Clutch
17 530015826 Pin--Bar Adjusting
18 530038593 Retainer
19 5300161 10 Screw--Bar Adjusting
20 530053035 Cover--Chain Brake Spring
21 53001591 1 Screw
22 530016154 Screw
23 530059960 Shield--Cylinder
24 952030150 Spark Plug (RCJ--7Y)
25 530069940 Kit--Cylinder (36cc) (incl.#29 pg. 1 & #26 pg. 2)
Description
26 530069944 Kit--Piston (36cc) (Includes pin and 27, 28)
27 530029805 Ring--Piston (36cc)
28 530015697 Piston Pin Retainer
29 530049794 Cap--Crankcase
30 530015897 Screw
530031 135 Scrench
530037418 Decal--International Warning
530047839 Decal--Warning
Part No. Ref. Part No. DescriptionRef.
22
23
25
26
30
29
Chain
Brake
Assembly
1
3
45
6
13
11
10
2
9
8
7
15
16
21
18
19
20
14
= NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)K
12
27
28
24
17
W ARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
