2
Note: Illustration may differ from actual model due to design changes

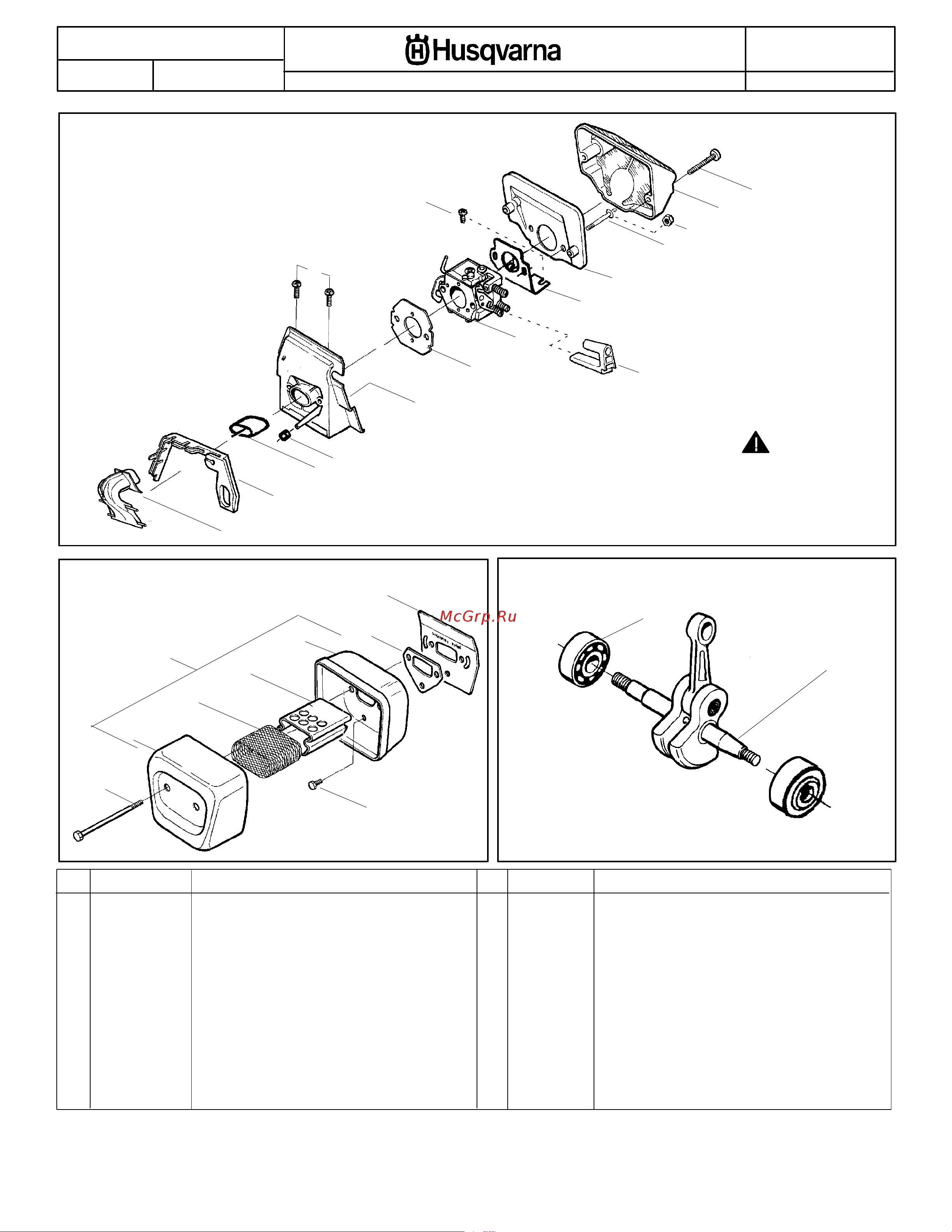

PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530165405--01
137 Export
DATE
12/07/04
Replaces
r PARTS LIST
10/28/04 -- 530165405--01
1 530029813 Assy--Turbo Air Cleaner
2 530019203 Seal -- Turbo Clean
3 530029814 Sleeve--Intake
4 530053435 Seal--Impulse
5 530015814 Screw
6 530037465 Adapter -- Carb.
7 530019172 Gasket--Carburetor
8 530071987 C ar bur et or -- W -- 29
9 530035587 Grommet--Final
10 530047767 Plate -- Support
1 1 530015896 Screw
12 530036582 Air Filter -- Bottom
13 530015968 Stud -- Carb.
14 530016008 Nut
Description
15 53002981 1 Air--Filter -- Top
16 530015899 Screw
17 530016044 Bolt--Muffler
18 530069415 Kit--Muffler (Includes 17,19,20,21,22,25 )
19 530037254 Cover--Muffler
20 530029810 Screen--Spark Arrestor
21 530037246 Diffuser--Muffler
22 530037251 Body--Muffler
23 530019205 Gasket--Muffler
24 530037640 Plate--Muffler
25 530015902 Bolt--Muffler support
26 530056363 Assy. --Bearing and Seal
27 530029794 Assy--Crankshaft & Rod
Part No. Ref. Part No. DescriptionRef.
6
3
7
8
9
13
16
15
12
5
26
27
4
1
2
= NEW PART NUMBER FOR THIS IPLn
D
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
10
11
14
W ARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
20
22
21
25
18
19
17
23
24
