Operating Manual - ne24.24M Matrix Processor

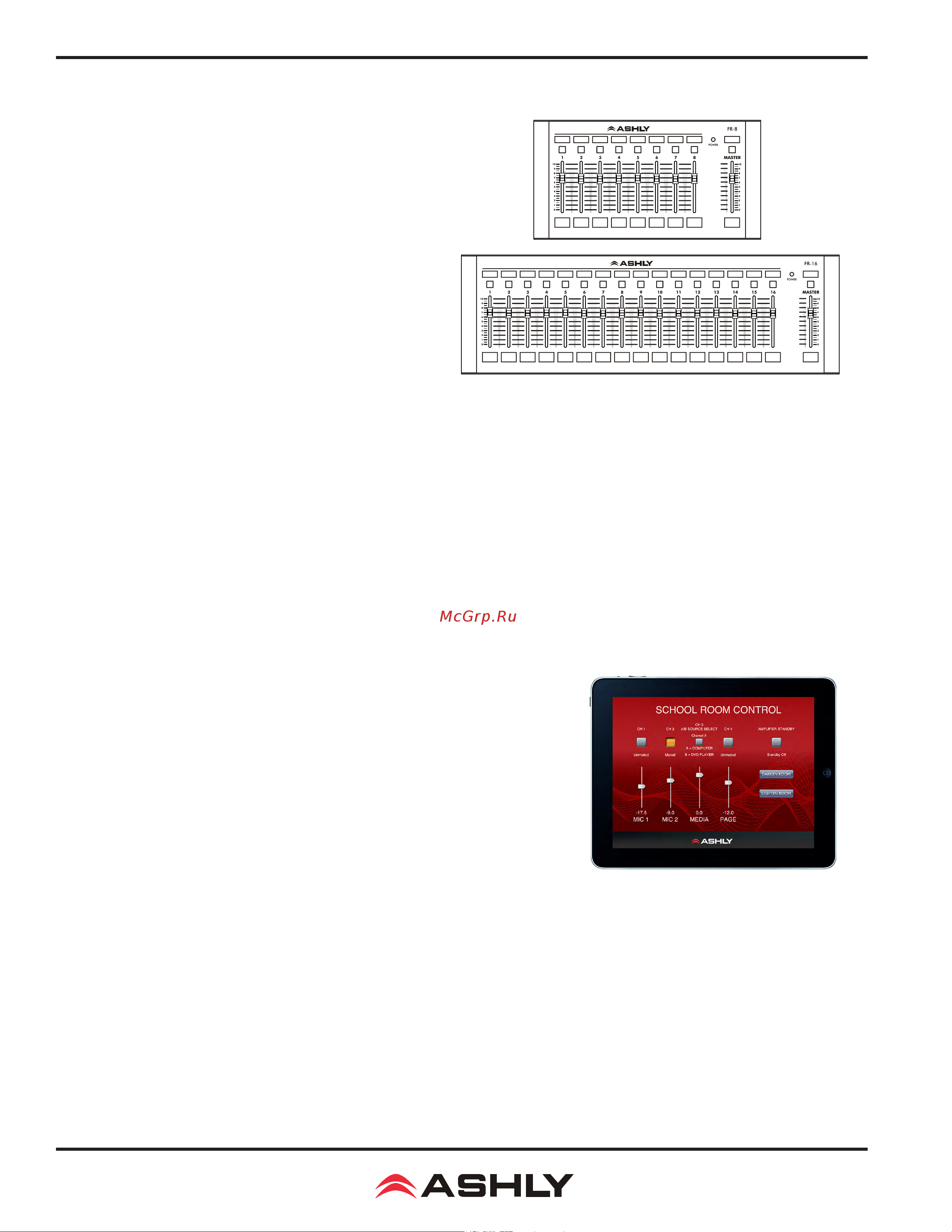

10.7 FR-8 and FR-16 Networked Programmable Fader Controllers

The FR-8 and FR-16 are Ethernet based remote con-

trollers for all Ashly NE products with DSP capabilities. Each

fader and it’s push button LED can be programmed to adjust

the signal level for one input or output or group, select input

source, or mute the signal. The FR remotes are ideal for net-

worked sound systems in meeting rooms, houses of worship,

courtrooms, or other applications where simple but program-

mable real-time level control is required.

Once installed on a network shared by the ne24.24M,

the FR-8 or FR-16 will appear in the Protea

software device

menu tree and must be assigned to the ne24.24M before pro-

gramming. Primary features include:

• 8 or 16 Assignable Faders with Master

• Push Button Switches with LED

• Mute/Unmute per Fader

• A/B Source Select per Fader (optional)

• Two Signal Level Indicators per Fader

• User Dened Signal Level LED Threshold

• Assignable Fader Scaling

• Front Panel Lockout

• Communication Failure Indicator

• Automatic IP Addressing

• User Dened Label Inserts

• Powered by IEEE 802.3af Power over Ethernet

• Wall Box or Panel Cut-Out Mounting

See the FR-8/16 owners manual on the Ashly website for further details.

10.8 Ashly Remote Application for iPad®

A custom and secure touch-screen control surface for the iPad

can be designed

using the <Ashly Remote> application, available free on iTunes

or via the Ashly website

products section. Controls, labels, and images are combined to manage key NE24.24M

functions over a wireless network connection.
