Inst allation

For optimal performance of the AV 40, please read the following directions carefully before

installation.

Precautions

Connections: Your AV 40 monitors have a variety of inputs for use with a multitude of devices.

Soundcards or other devices with RCA line outputs (e.g., M-Audio Delta Audiophile 24/96) can be

connected to the RCA inputs on your left speaker’s back panel. Professional audio devices with

balanced or unbalanced 1/4” outputs should be connected to the 1/4” TRS back panel inputs. If

your soundcard or portable music player has an 1/8” output, you can connect it to the front panel

aux input, using the provided 1/8” to 1/8” cable.

Correct Power Operation: Since the AV 40 contains ampliﬁers, it must be connected to a power

outlet. Before connecting power, please make sure that the On/Off switch on the back of the AV 40

is set to the off position.

Acoustic/Traction Pads

In order to minimize vibrations and maximize physical stability, we recommend you use the provided

acoustic/traction pads on the bottoms of the AV 40 monitors.

Speaker Wire Connections

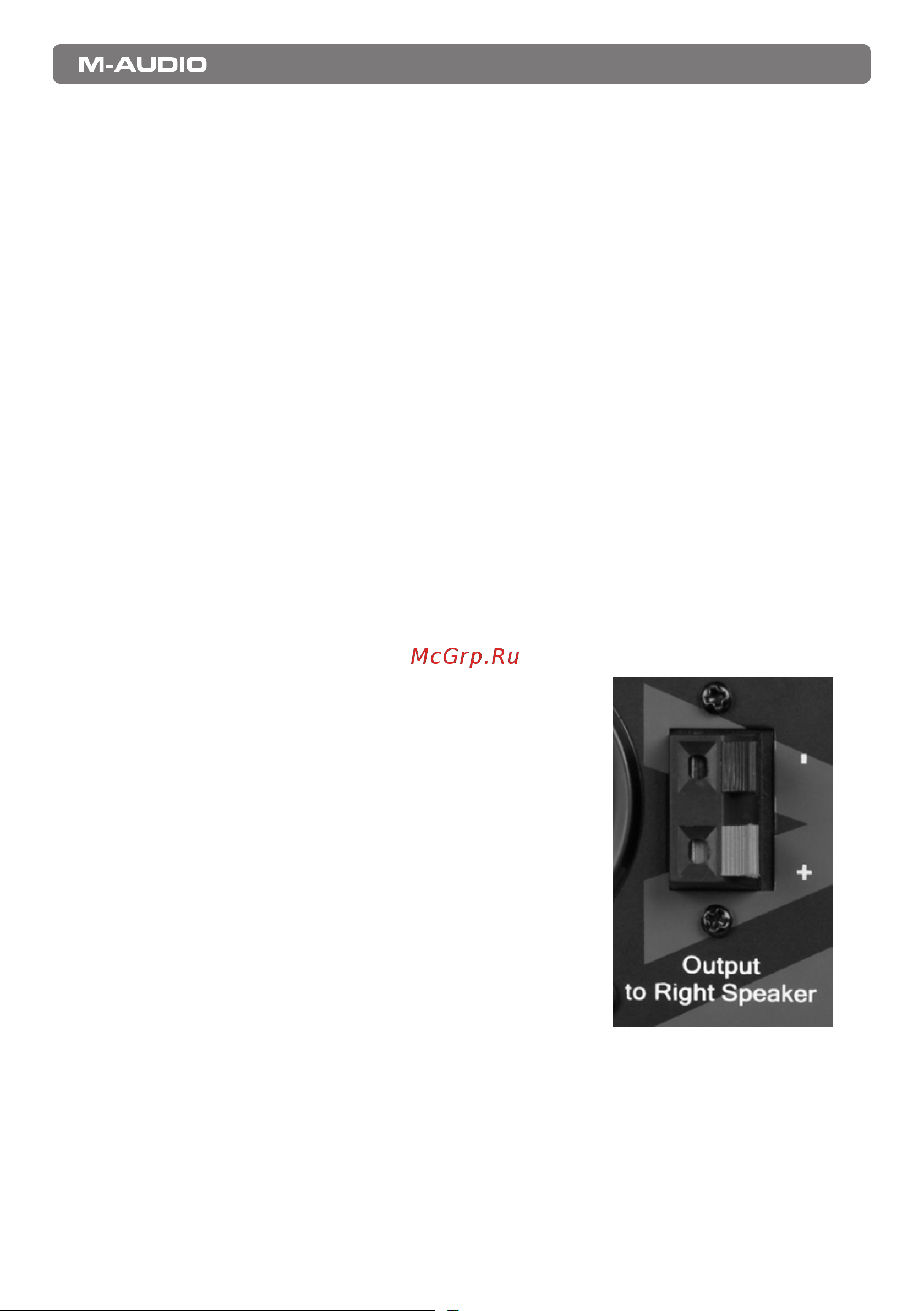

Use the red and black cable included in the AV 40 package to

connect the Left and Right speakers via the red /black spring-clip

terminals on the back of each speaker.
