Installing your Slot-In PC

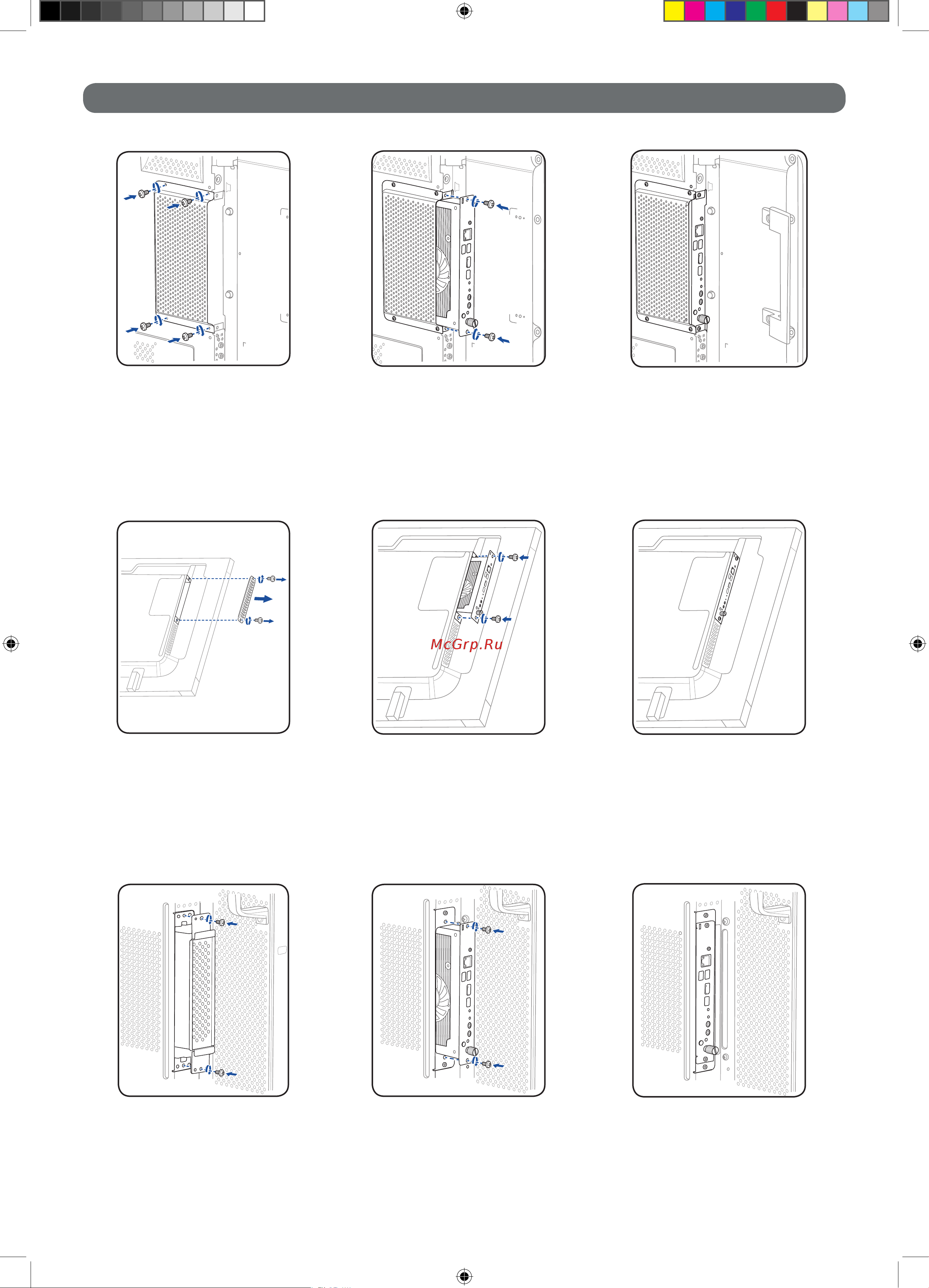

Installing on an NEC display with OPS slot (XS-Series)

1. Remove the screws on the slot cover

plate of the display.

NOTE: If needed, remove the carrier handle

on the display.

2.WiththefanofyourSlot-InPCfacing

forward, carefully insert your Slot-In PC

into the slot until it latches into the two

connectors.

NOTE: Do not apply too much force when

inserting your Slot-In PC. Doing so may

damage your Slot-In PC or the slot itself.

3. Secure your Slot-In PC to the display

with the screws you removed earlier. If

needed, reattach the carrier handle of the

display.

NOTE: Ensure that the screws are tightened

correctly (1.39 to 1.89 N full-load).

Installing on an NEC display with OPS slot (V-Series / P-Series / XUN-Series / XHB-Series / XUHD-Series)

1. Remove the screws on the slot cover

plate of the display.

NOTE: If needed, remove the carrier handle

on the display.

2.WiththefanofyourSlot-InPCfacing

forward, carefully insert your Slot-In PC

into the slot until it latches into the two

connectors.

NOTE: Do not apply too much force when

inserting your Slot-In PC. Doing so may

damage your Slot-In PC or the slot itself.

3. Secure your Slot-In PC to the display

with the screws you removed earlier. If

needed, reattach the carrier handle of the

display.

NOTE: Ensure that the screws are tightened

correctly (1.39 to 1.89 N full-load).

Installing on an NEC Display with Dual slot

1. Remove the screws on the slot cover

plate of the display.

To use OPS devices, install and secure

a Dual slot adapter, using the screws

you removed earlier, into the display.

2.WiththefanofyourSlot-InPCfacing

forward, carefully insert your Slot-In PC

into the slot until it latches into the internal

connector.

NOTE: Do not apply too much force when

inserting your Slot-In PC. Doing so may

damage your Slot-In PC or the slot itself.

3. Secure your Slot-In PC to the display with

screws.
