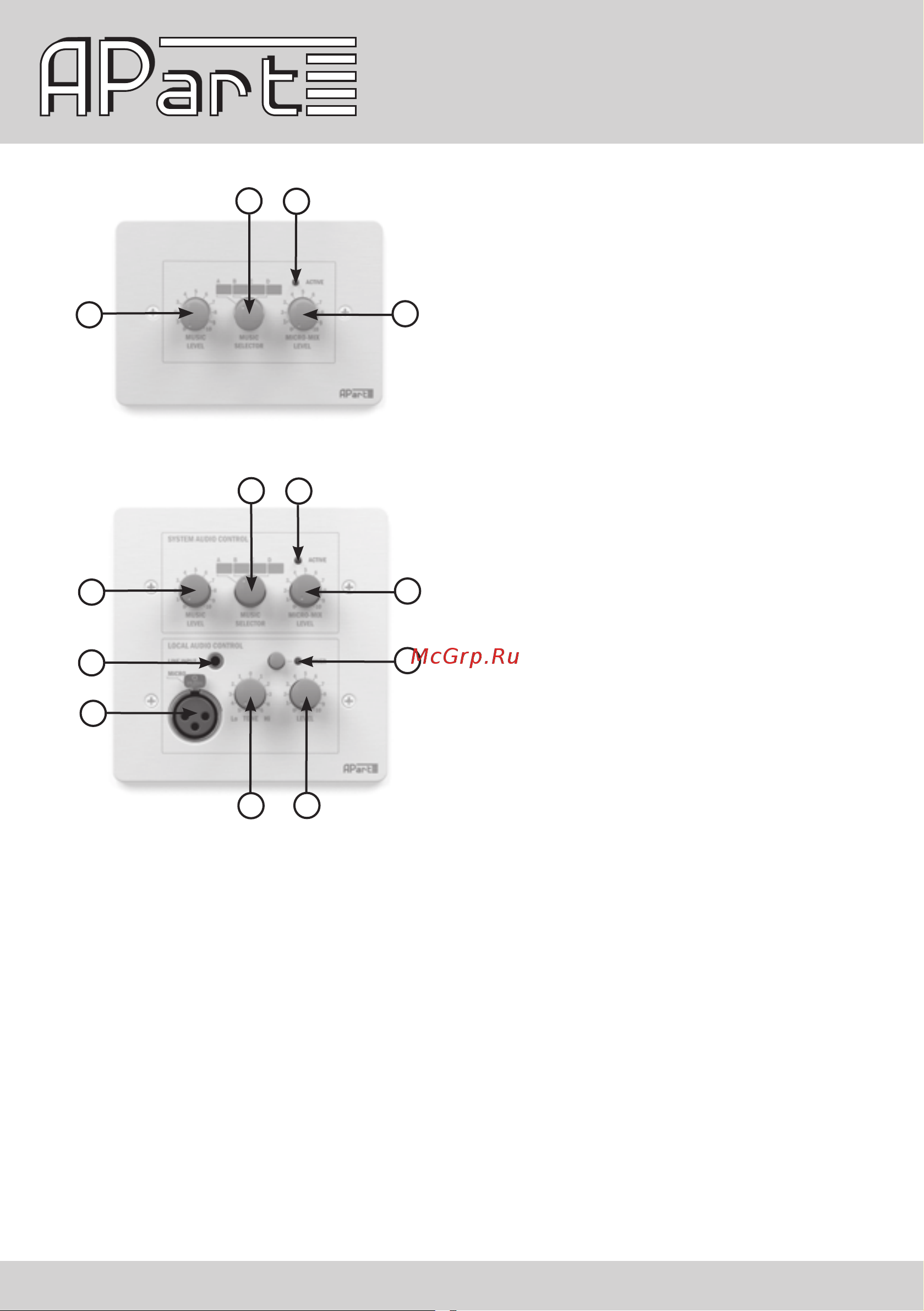

1) Music level

2) Music source selector

3) Microphone mix level

4) Active led

1) Music level

2) Music source selector

3) Microphone mix level

4) Active led

5) Front XLR microphone connector

6) Minijack line input connector

7) Power on/off with control led

8) Local audio tone control

9) Local audio level

The APart PM1122R and PM1122RL remote control panels for PM1122 preamplier have been designed to

t into a standard in-wall box from BTicino. PM1122R ts into a 503E/NP box, PM1122RL ts into a 506E/

NP box. Mounting screws are provided with the remote panels.

PM1122R supports music level control, line source selection and microphone mix level control. PM1122RL

adds a dual local source input. This can be a microphone signal on the front XLR mic connector and/or a

stereo/mono line or headphone output on the front minijack connector. Headphone outputs from IPod’s,

portable MP3 players or computer line outputs are supported. Phantom power can be applied to the XLR

mic connector by setting a jumper at the rear of the PM1122RL. The local source level and tone can be set

on the PM1122RL front panel using the dedicated tone and level potmeters. Local source signal output is

always mono (stereo signals on minijack are mixed to mono line level). Press the front ‘power’ button so that

the power led lights up to allow input of local audio sources.

Connection between PM1122 and remote panel is made by a standard CAT5 cable wired according to

T-568B. Wire length can be up to 300 meters. Maximum wire length depends on multiple factors, such

as cable quality and external inuence from high power lines etc. The ‘active’ led on the front (PM1122RL

only) lights up when the connected PM1122 preamplier is switched to remote mode. You can use only one

PM1122R/RL per zone.

pm1122R

pm1122RL
