1) Trim potmeter to preset maximum allowed music level. This level can not be exceeded!

2) Music level jumper position down: music level is controlled by front potmeter.

3) Trim potmeter to preset maximum allowed microphone level. This level can not be exceeded !

4) Microphone level jumper position down: mic level is controlled by front potmeter.

5) Music level jumper position up: music level is preset by trim potmeter and can not be controlled by

front potmeter.

6) Microphone level jumper position up: microphone level is preset by trim potmeter and can not be

controlled by front potmeter.

g.1:

g.2:

7) Trim potmeter to preset maximum allowed music level. This level can not be exceeded !

8) Music level jumper position down: music level is controlled by front potmeter.

9) Phantom power jumper open: no phantom power applied to front XLR connector.

10) Trim potmeter to preset maximum allowed microphone level. This level can not be exceeded !

11) Microphone level jumper position down: mic level is controlled by front potmeter.

12) Music level jumper position up: music level is preset by trim potmeter and can not be controlled by

front potmeter.

13) Phantom power jumper closed: phantom power applied to front XLR connector.

14) Microphone level jumper position up: microphone level is preset by trim potmeter and can not be

controlled by front potmeter.

g.3:

g.4:

g.1

g.2

g.3

g.4

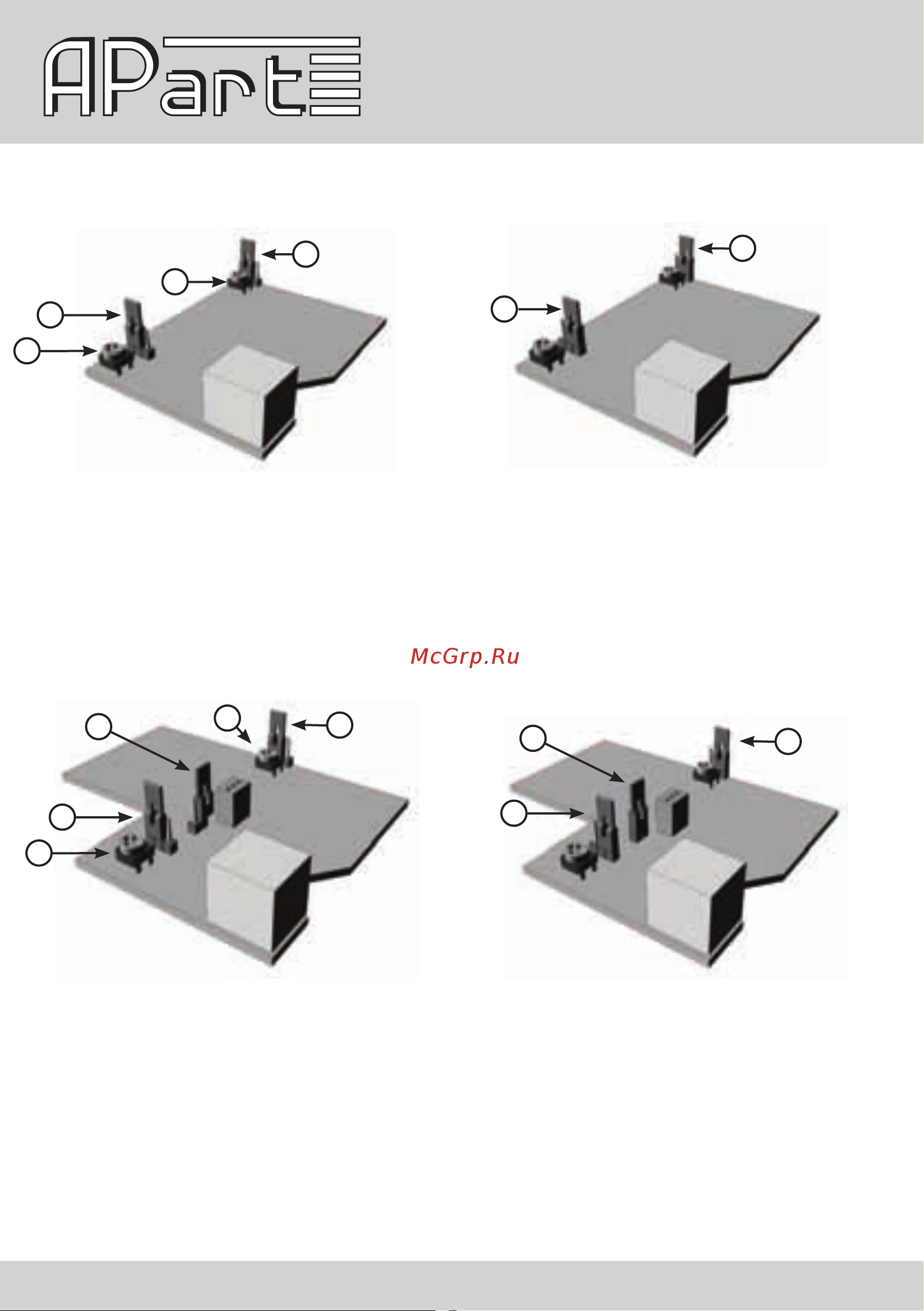

At the rear of both remote panels, you will nd 2 trim potmeters and 2 jumpers (3 jumpers on

PM1122RL). The function of these items is explained below, any combination of jumper settings is

possible:
