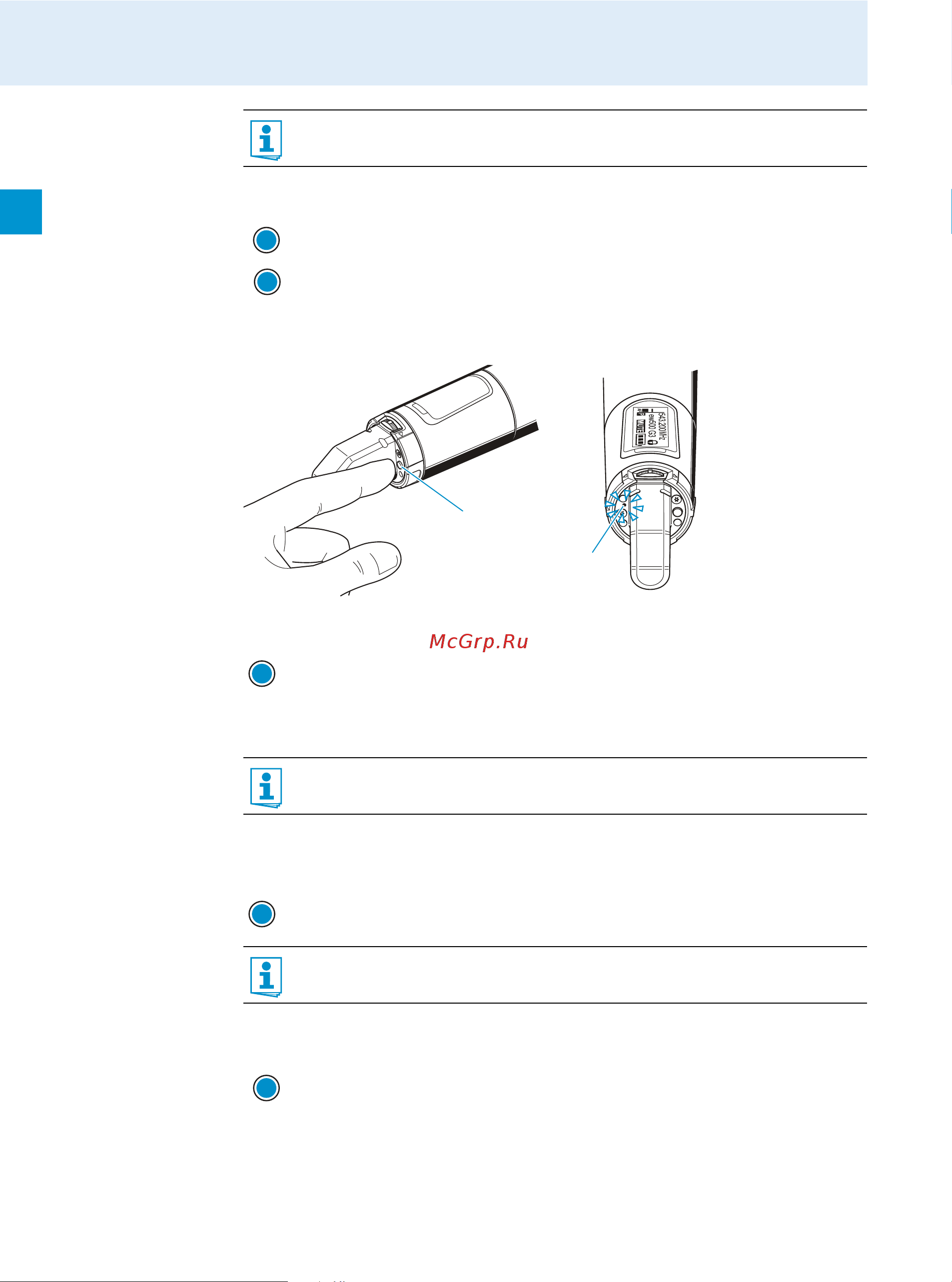

Using the devices
20
To activate the RF signal:
SKM 500 radio microphone
To switch the radio microphone on (online operation):
To switch the radio microphone off:
If necessary, deactivate the lock mode (see page 22).
To switch the radio microphone on and to deactivate the RF signal on switch-on (offline oper-
ation):
Use this function to save battery power or to prepare a bodypack transmitter for use
during live operation without causing interference to existing transmission links.
Briefly press the ON/OFF button .
“RF Mute Off” appears on the display panel.
Press the SET button .
The transmission icon is displayed again.
Briefly press the ON/OFF button .
The radio microphone transmits an RF signal. The transmission icon is
displayed.
The red ON LED lights up and the standard display “Frequency/Name”
appears on the display panel.
You can switch the radio microphone on and deactivate the RF signal on switch-on.
For more information, see below.
Press the ON/OFF button until “OFF” appears on the display panel. The red
ON LED goes off and the display panel turns off.
When in the operating menu, pressing the ON/OFF button will cancel your entry
(ESC function) and return you to the current standard display.
Press the ON/OFF button until “RF Mute On?” appears on the display panel.
SET
SET
ON/OFF
ON/OFF
SET
