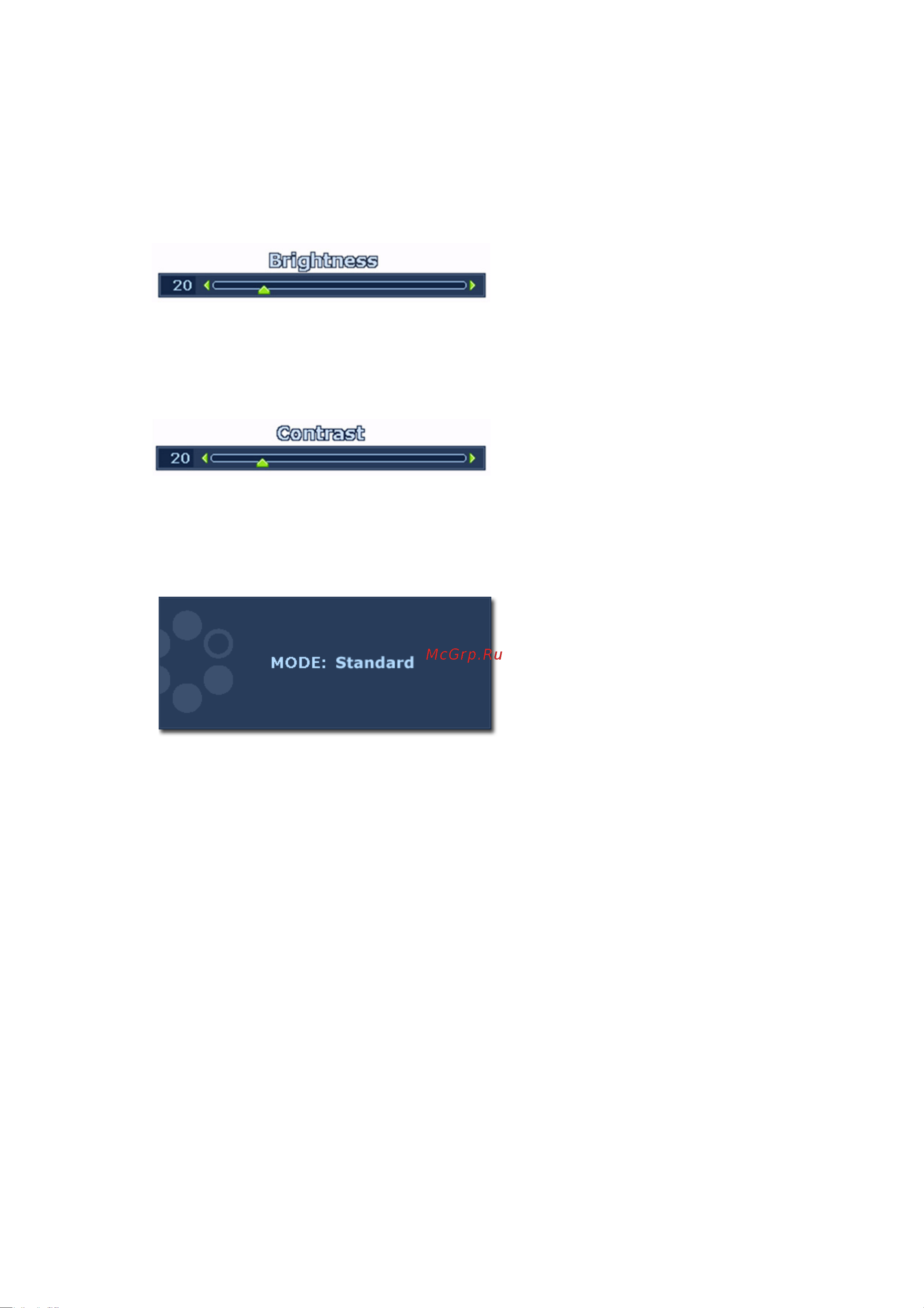

Benq FP222W a [25/36] Hot key mode
![Benq FP222W a [25/36] Hot key mode](/views2/2013167/page25/bg19.png)
25 How to adjust your monitor
Hot key mode
The monitor keys perform as hotkeys to provide direct access to particular functions whenever the
menu isn't currently displaying on-screen.
Brightness hot key
Contrast hot key
Mode hot key
Press the t key to display the Brightness
indicator. Further press the t key to
increase or the u key to decrease the screen
brightness, and press the MENU key to exit.
Press the u key to display the Contrast
indicator. Further press the
t key to
increase or the
u key to decrease the screen
contrast, and press the MENU key to exit.
Press the key continually to switch between
the 4 modes for the main window, including
Standard, Movie, Dynamics, and Photo. The
setting will take effect immediately.
See also Picture Mode on page 31.
