Tesla TA70FFML-24410A [44/60] Drain pipe connection

44

ENG

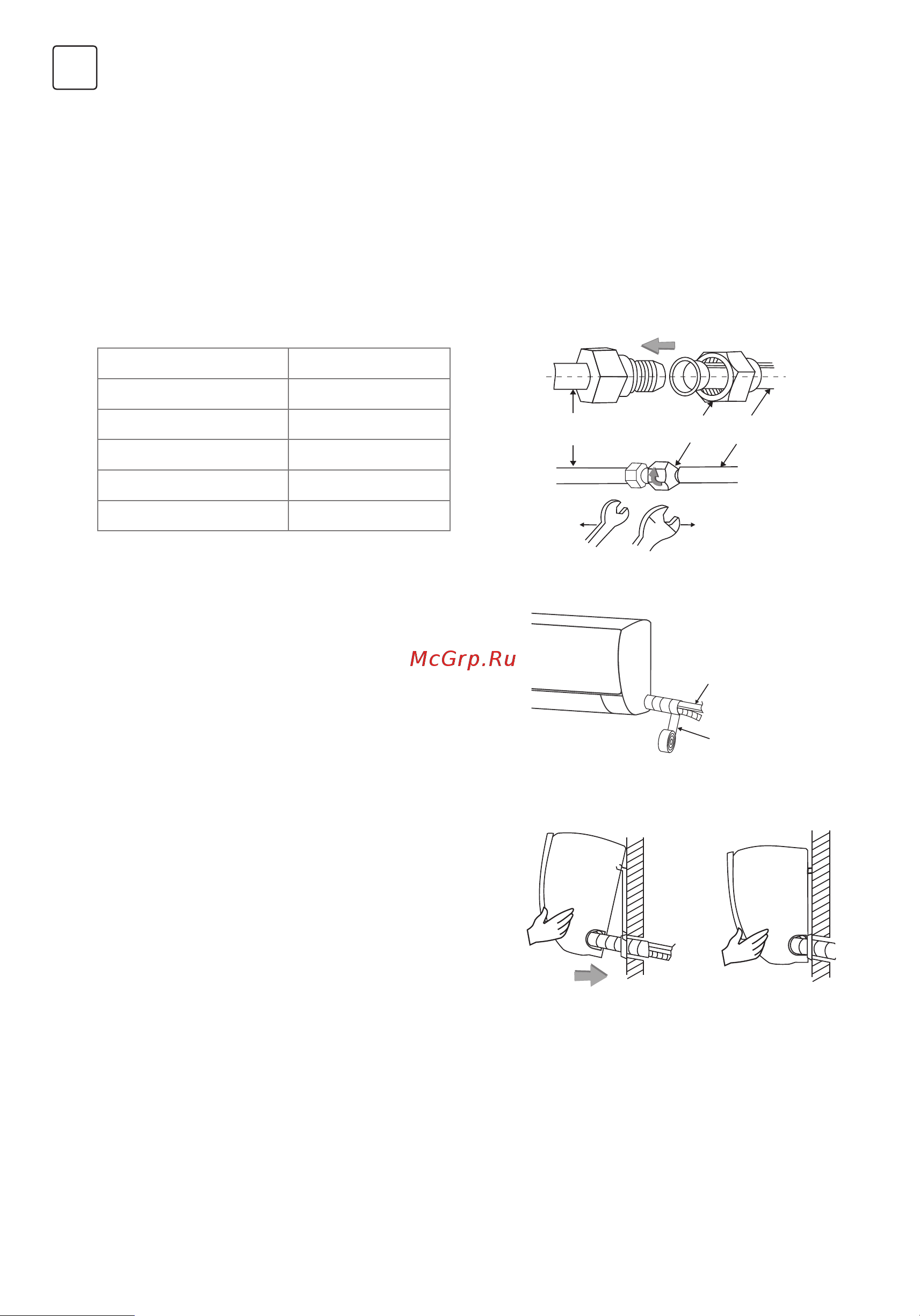

Drain pipe connection

Wrap the Piping

1. Remove the fixed part to pull out pipe of indoor machine from the case. Screw the hexagon nut in the left of the

joint to the end with your hand.

2. Connect the connecting pipe to the indoor unit:

Aim at the pipe center, tighten the Taper nut with fingers, and then tighten the Taper nut with a torque wrench,

and the direction is shown in diagram on the right. The torque used is shown in the following table.

2. Connect the water outlet with drain pipes, and make the

connection pipe, cables, and the drain hose straight.

3. Use plastic cable ties to wrap the connecting pipes, cables

and drain hose. Run the pipe sloping downward.

The size of pipe (mm) Torque (Nm)

ɸ6 / ɸ6. 35 15 ~ 88

ɸ9 / ɸ9. 52 35 ~ 40

ɸ12 / ɸ12.7 45 ~ 60

ɸ15.88 73 ~ 78

ɸ19.05 75 ~ 80

Fixing the Indoor Unit

1. Hang the indoor unit on the peg board, and move the

unit from left to right to ensure that the hook is properly

positioned in the peg board.

2. Push toward the lower left side and the upper right side of

the unit toward the peg board, until the hook is embedded

in the slot and makes a “click” sound.
