Step 3: Turn power on and release [DOWN] button when LCD display blinks

Step 4: Follow the menu instruction to pair or delete transmitter

Transmitter battery replacement

If effective distance seems to be decreased, it is possible the battery level are low and

require replacement. In order to replace the battery, undo the three screws on the back of

transmitter to release the cover. Replace with same type and specification of battery which is

27A 12V

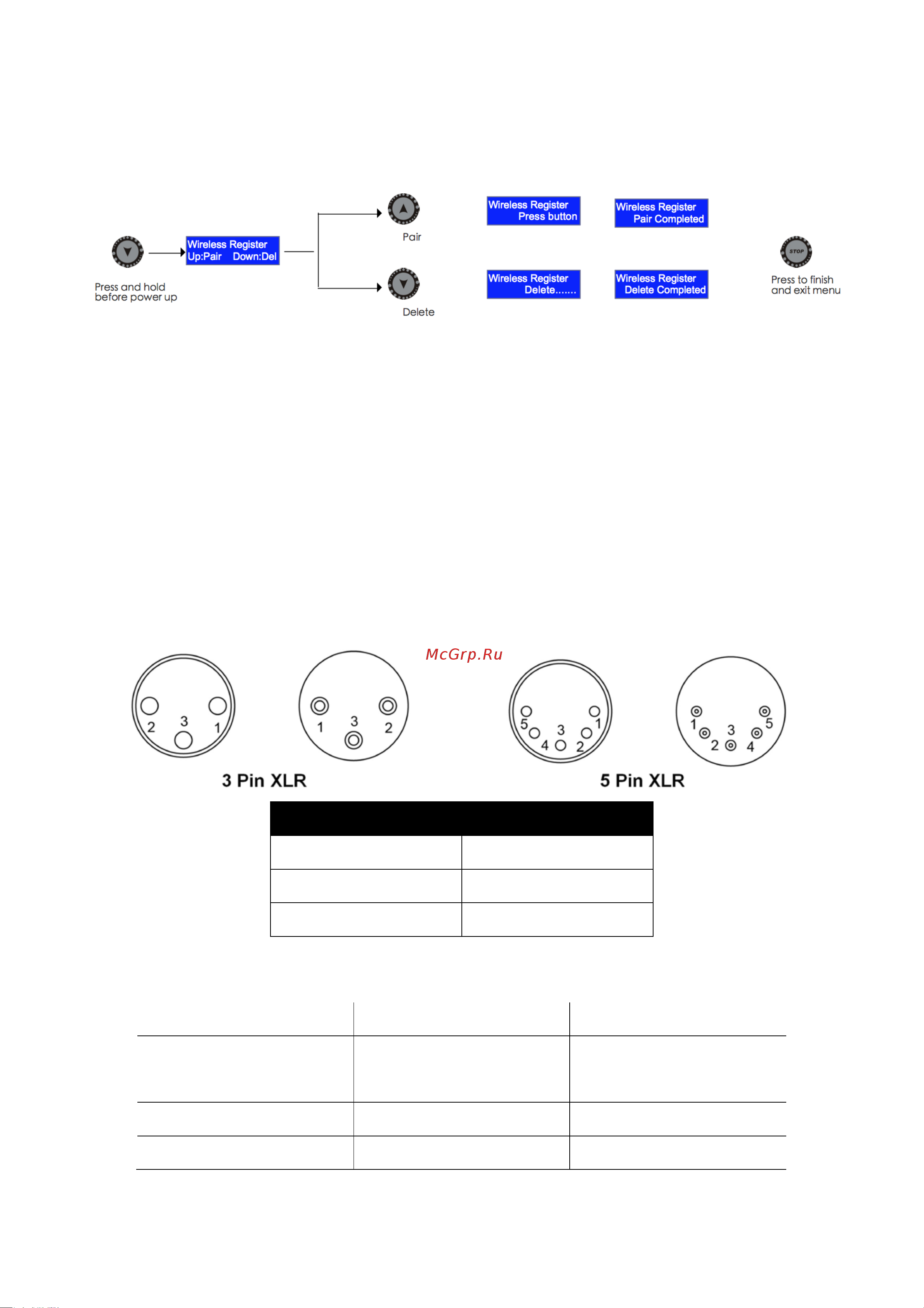

DMX Connector Pin Assignment

The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate

pin assignment information

Pin Function

1 Ground

2 Data-

3 Data+

DMX Channel Function

Channel 1 DMX Value Range Function

Fog

0 – 4

5 – 255

Fog Off

Fog On

Channel 2 DMX Value Range Function

Red LED 0-255 0-100%
