Instruction manual
CM20DTS / CM30DTD / CM60DTD
15
4

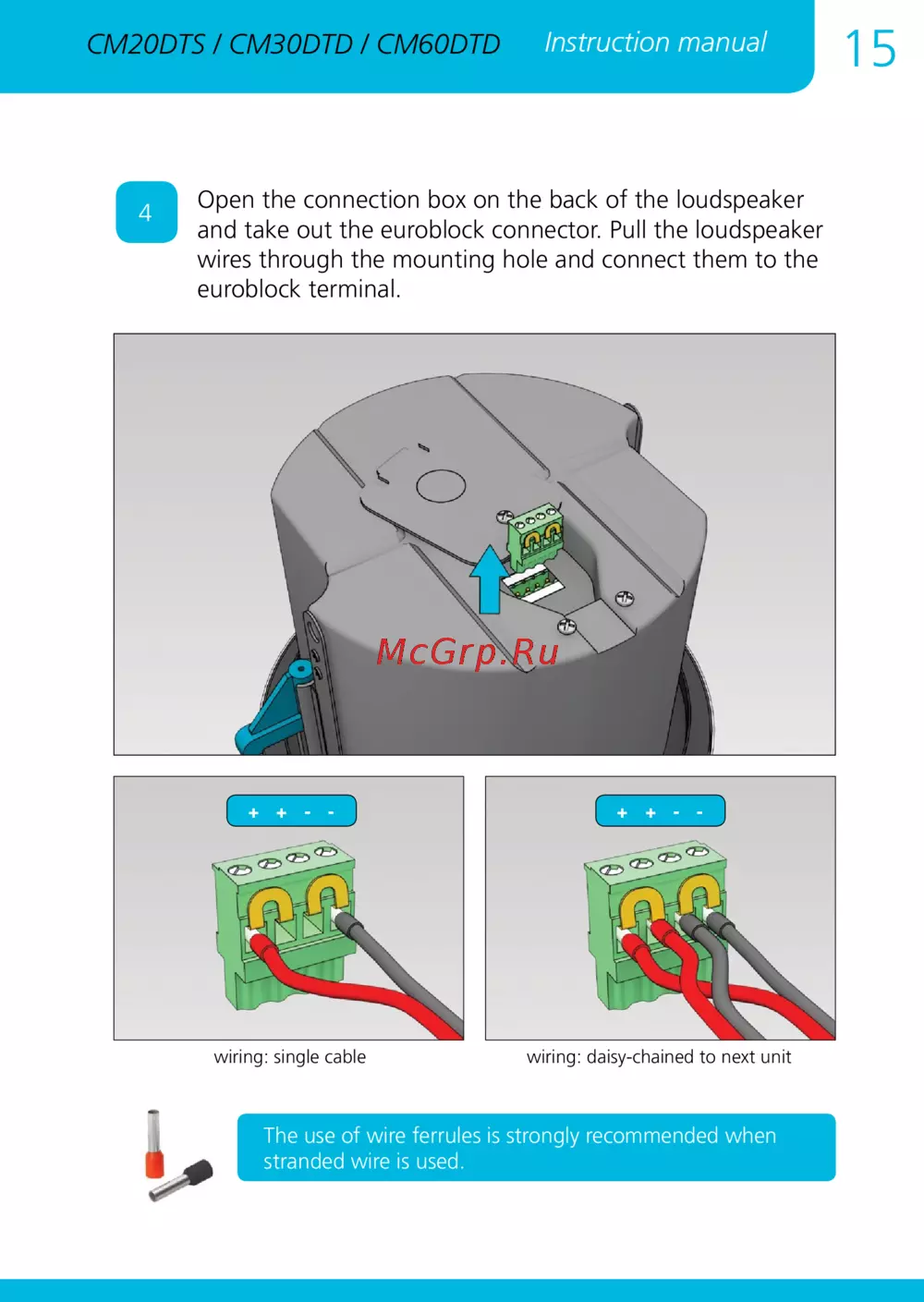

Open the connection box on the back of the loudspeaker
and take out the euroblock connector. Pull the loudspeaker
wires through the mounting hole and connect them to the
euroblock terminal.
+ + - -
The use of wire ferrules is strongly recommended when
stranded wire is used.
wiring: single cable wiring: daisy-chained to next unit
+ + - -
