Instruction manual

CM20DTS / CM30DTD / CM60DTD

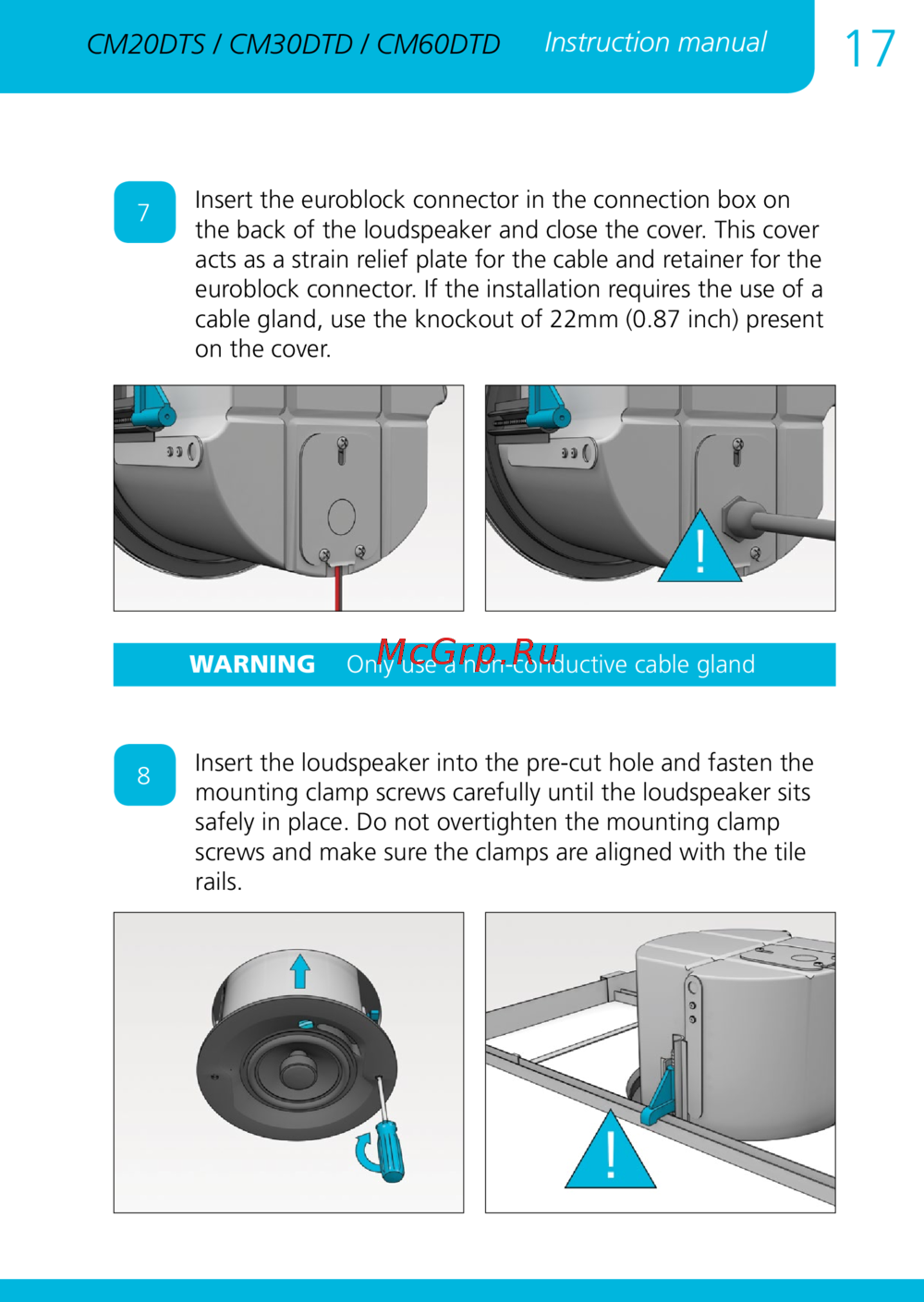

Insert the euroblock connector in the connection box on

the back of the loudspeaker and close the cover. This cover

acts as a strain relief plate for the cable and retainer for the

euroblock connector. If the installation requires the use of a

cable gland, use the knockout of 22mm (0.87 inch) present

on the cover.

Insert the loudspeaker into the pre-cut hole and fasten the

mounting clamp screws carefully until the loudspeaker sits

safely in place. Do not overtighten the mounting clamp

screws and make sure the clamps are aligned with the tile

rails.

WARNING Only use a non-conductive cable gland
