Instruction manual
3
Connection diagram
Important safeguards
• The instruction manual contains important
operating and maintenance instructions. For
your safety, it is necessary to refer to the
manual. Keep the manual for future use.
• Do not hit or drop the unit.
• Do not expose the unit to vibration, direct
sunlight, too high or low temperatures or
humidity.
• Do not disassemble the unit yourselves.
Refer servicing to qualified service personnel.
All the illustrations in this manual are
schematic images, which may differ from
actual objects.
Power supply
• The unit operates on an internal
rechargeable Li-ion battery and 220V mains
via a DC adapter (not included).
• The battery can be recharged with the
provided USB charging cable. Before first
plugging the appliance check that voltage
indicated on the rating label corresponds
to the mains voltage in your home.
• Insert the charging cable into the
DC IN socket on the unit.
•
Connect the charging cable to the power
• For best results, try to fully charge the
battery before each use. If the battery is
drained, please allow it to recharge for a few
hours.
General operations
Bluetooth wireless playback
• This unit can wirelessly playback audio
from any device with Bluetooth A2DP
function.
• The wireless range is approximately
within 10 meters in direct line of sight.
adapter (not included). Plug the
adapter to the power source.
• Put the power switch to the ON
position to switch the unit on. Put it into the
OFF position to switch off.

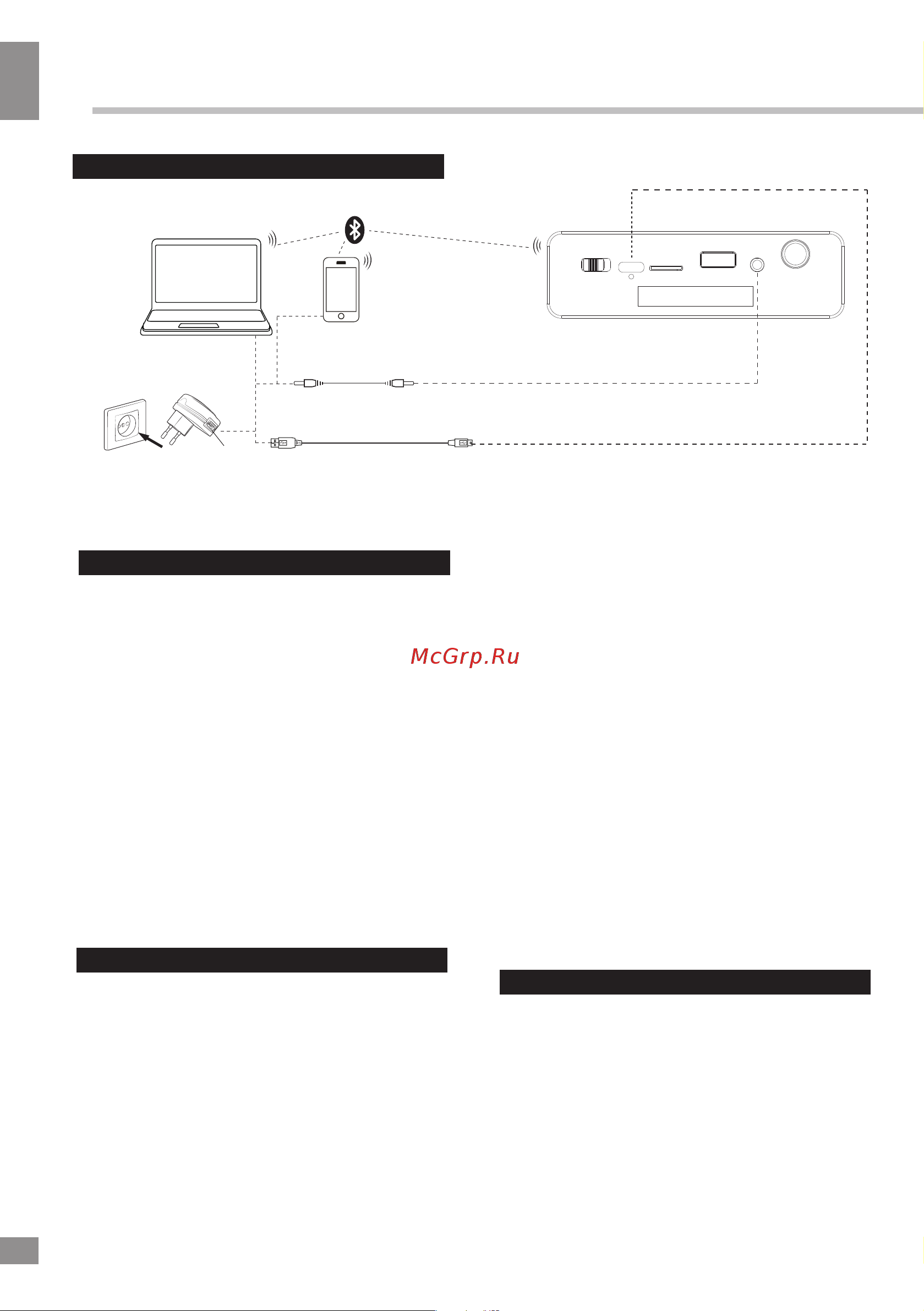

USB to USB
Type-C power
cable
USB port
3.5mm mini-jack to 3.5 mini-
jack audio cable
Mobile device
PC
Socket
DC 5V
TF Card
USB
AUX IN
POWER
MIC IN
BAT FULL
• The battery charging indicator will light
up in red when charging and switch to blue
when the battery is fully charged.
