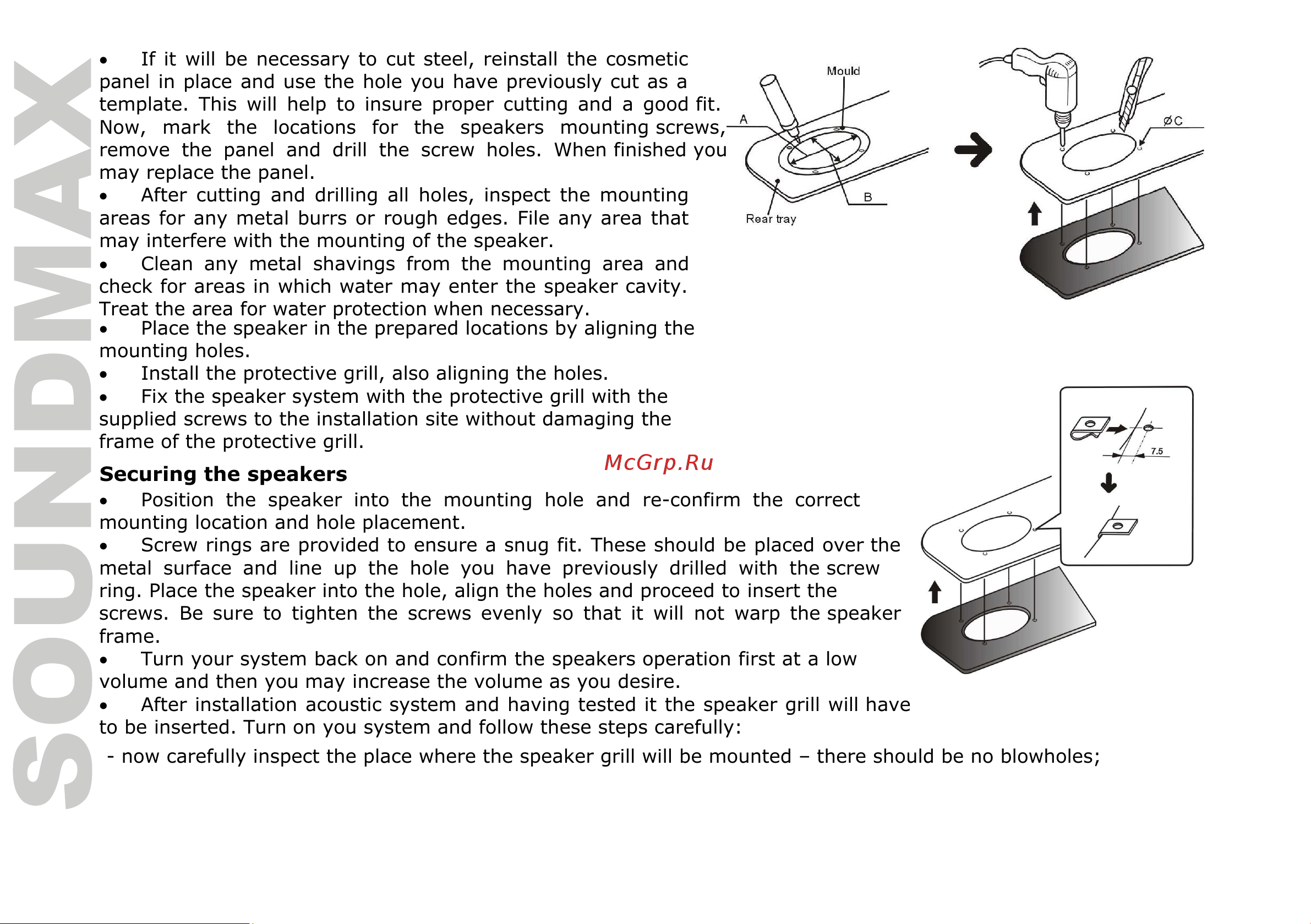

Soundmax SM-CSV693 [4/16] Securing the speakers

 If it will be necessary to cut steel, reinstall the cosmetic

panel in place and use the hole you have previously cut as a

template. This will help to insure proper cutting and a good fit.

Now, mark the locations for the speakers mounting screws,

remove the panel and drill the screw holes. When finished you

may replace the panel.

 After cutting and drilling all holes, inspect the mounting

areas for any metal burrs or rough edges. File any area that

may interfere with the mounting of the speaker.

 Clean any metal shavings from the mounting area and

check for areas in which water may enter the speaker cavity.

Treat the area for water protection when necessary.

 Place the speaker in the prepared locations by aligning the

mounting holes.

 Install the protective grill, also aligning the holes.

 Fix the speaker system with the protective grill with the

supplied screws to the installation site without damaging the

frame of the protective grill.

Securing the speakers

 Position the speaker into the mounting hole and re-confirm the correct

mounting location and hole placement.

 Screw rings are provided to ensure a snug fit. These should be placed over the

metal surface and line up the hole you have previously drilled with the screw

ring. Place the speaker into the hole, align the holes and proceed to insert the

screws. Be sure to tighten the screws evenly so that it will not warp the speaker

frame.

 Turn your system back on and confirm the speakers operation first at a low

volume and then you may increase the volume as you desire.

 After installation acoustic system and having tested it the speaker grill will have

to be inserted. Turn on you system and follow these steps carefully:

- now carefully inspect the place where the speaker grill will be mounted – there should be no blowholes;
