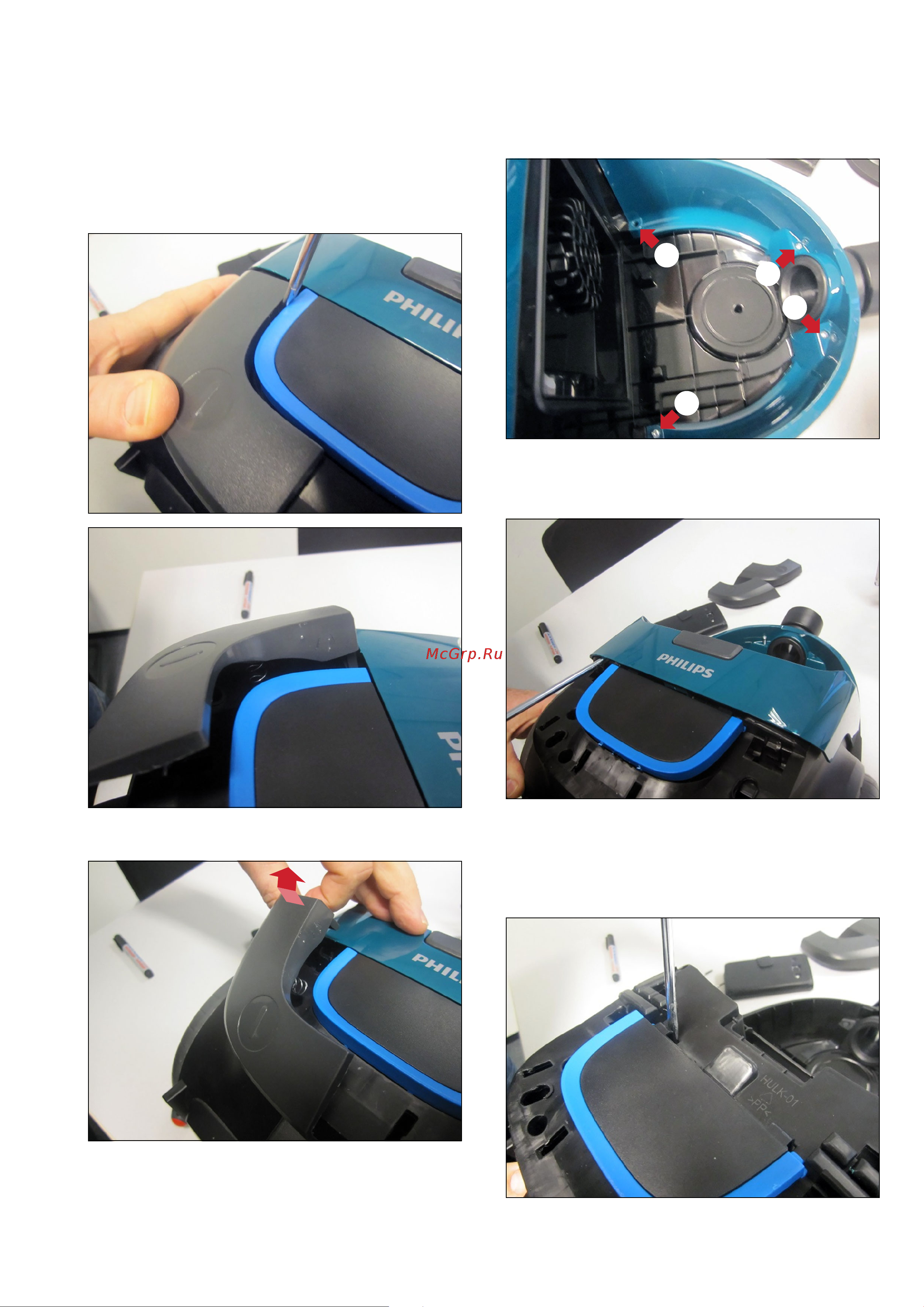

• To open the appliance, first remove the bucket assy

by pushing the dislock-button and lifting the bucket

straight upwards, and remove the Exhaust grille (16) and

Filter (17).

• Remove the buttons L and R (15):

Place a screwdriver on the inside and move upwards.

• Then lift the button and move it towards the front side of

the appliance.

• To disassemble the Upper housing:

Remove the 4 Screws (A) in the dustchamber/housing.

• Now the Midframe (13) housing can be removed.

Lift with a screw driver to unlock the 2 click knocks and

remove the housing upwards.

• Before disassembling the Midframe:

The unlock button (2 parts) and Spring (12+12a) need

to be removed (with a small screw driver).

• Then remove the Light Guide Cover, using a screwdriver

to unclick.

Disassembly- and Reassembly advice
