FC9331/09 /19

11-15

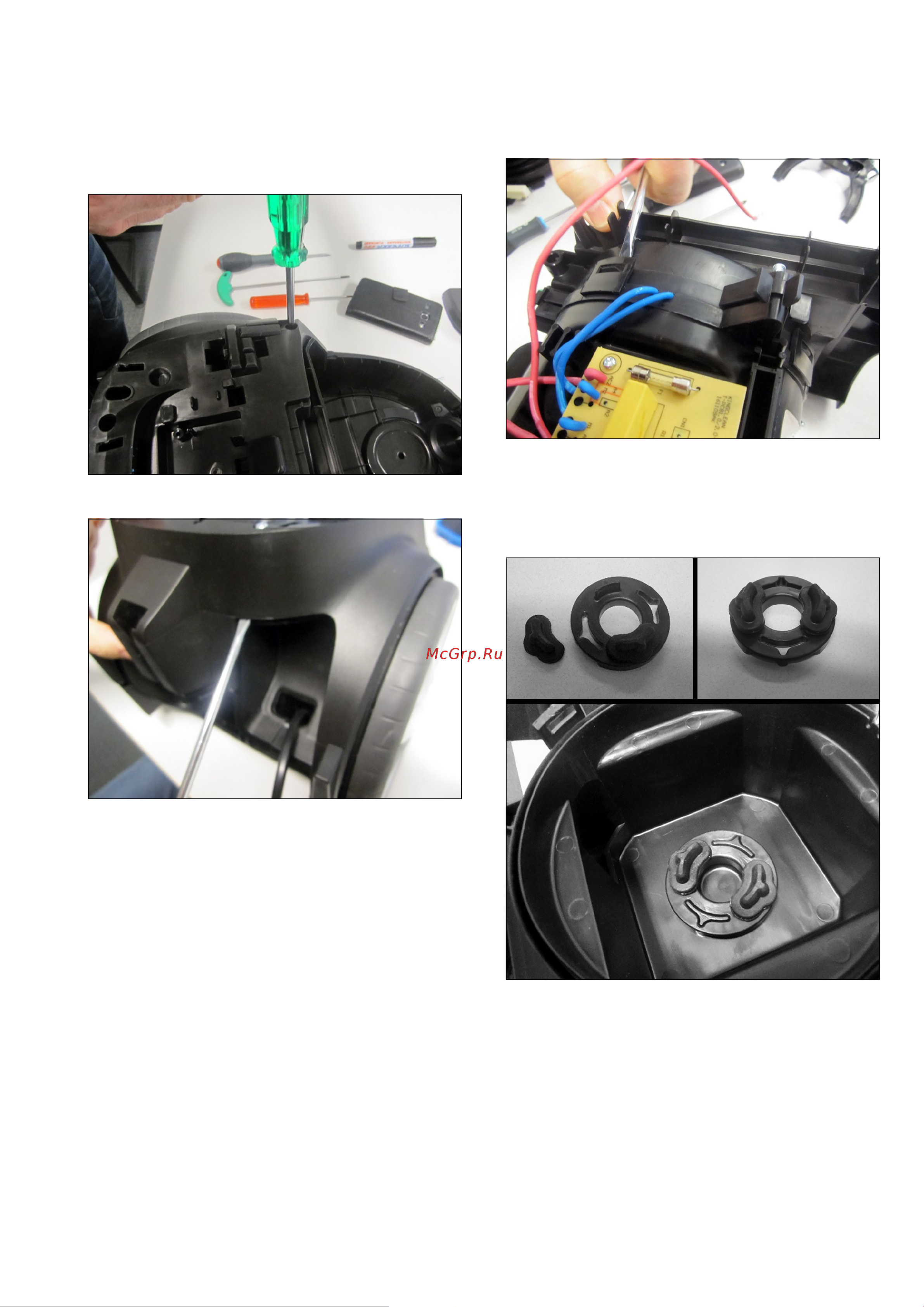

• To remove the Top cover (18):

Remove the 4 screws (B) (two are placed under the

Buttons and the other two are placed under the

Midframe)

• Lift up the Top cover on 2 places at the back side.

• To reach all screws of the motor housing, the Cordwinder

assy (20) has to be removed first.

Remove screw (C) and the cord outlet, now the

Cordwinder assy can be removed upwards (see exploded

view on page 7-15).

• To remove the motor housing:

Remove the 4 screws (D) (see exploded view on page

8-15).

• When disassembling the motor housing, first remove the

Valve assy (24).

The Valve assy is positioned on the left front side of the

motor housing (seen from the rear).

• To disassemble the motor housing

Remove the 3 screws (E) and unclick the 4 click knocks.

• The PCB (26) can be removed (2 screws) and then be

replaced.

• For re-assembling the motor assy:

First place the plastic + 2 rubber parts into the motor

housing.

• Then place the Motor back in the housing and lead the

wires through the recess.

Disassembly- and Reassembly advice
