BM series 9
Step
6 Connect the specified AC adapter to the balance. Warm up the balance for at least one hour with
nothing on the weighing pan.
Step
7 Confirm correct weighing. If necessary, calibrate the balance. Refer to "8. Calibration".

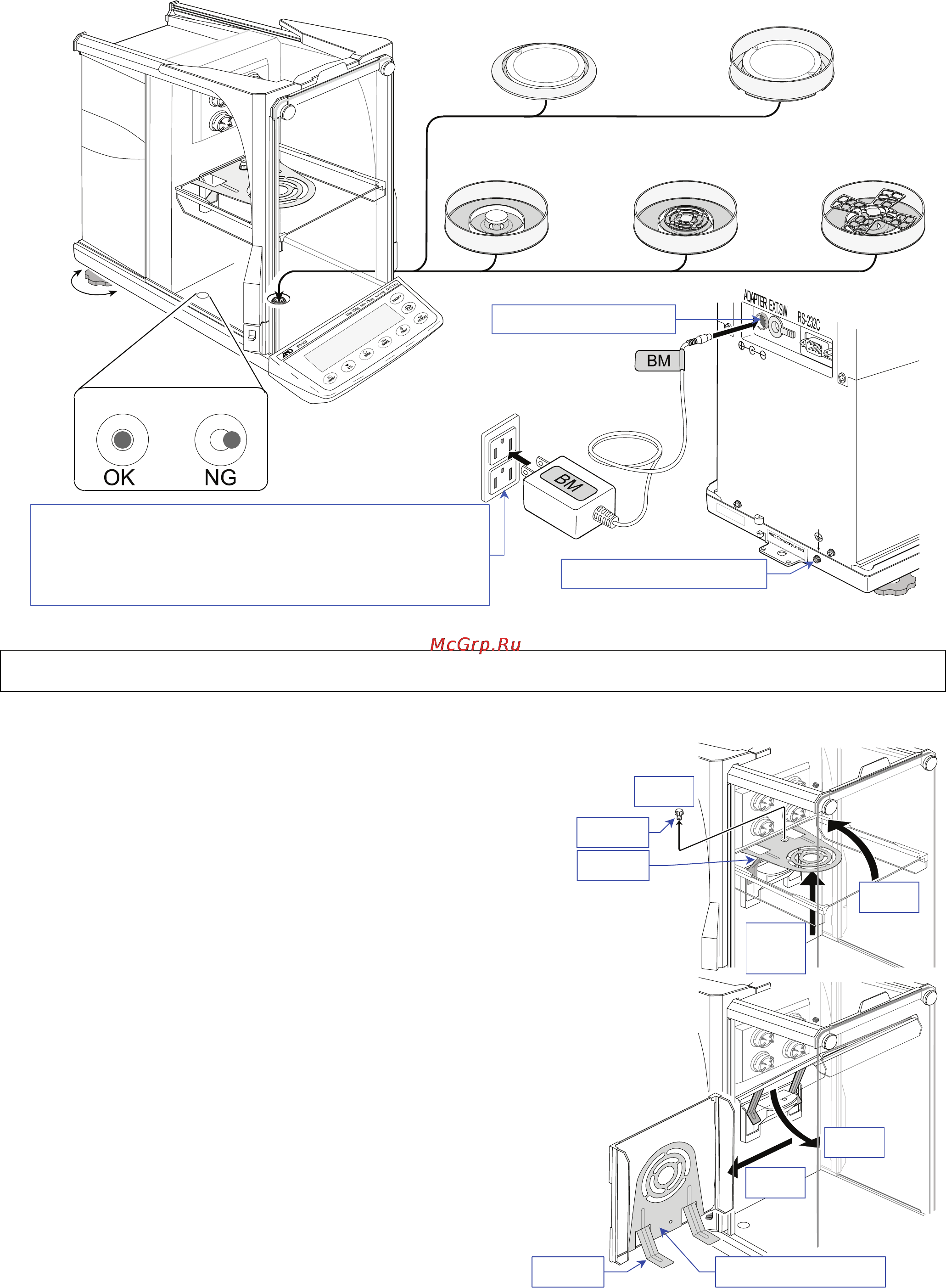

The Separation Plate
Note: Take care that the separation plate is not broken when operating it.
Removing the Separation Plate
Step
1 Support the separation plate and
remove the screw from the plate.
Step
2 Lift the plate and remove hooks.
Step
3 Rotate the plate on the axis of the back edge.
Rotate the plate on the axis of the front edge.
Step
4 Remove the plate from the chamber.
Attaching the Separation Plate
Use the arrows in reverse to attach the plate.
Step
5 Insert the plate into the chamber. (Reversed
Step
4)
Step
6 Rotate the plate on the axis of the front edge.
Level the plate. (Reversed
Step
3)
Step
7 Insert hooks and hook the plate. (Reversed
Step
2)
Step
8 Install and fix the screw. (Reversed
Step
1)
Bubble spirit level
Leveling foo
t
A
C adaptor jac
k
Grounding terminal
Example of outle
t
Note Please confirm that the AC adapter
type is correct for your local voltage
and receptacle type.
BM-252
BM-200､BM-300､
BM-500､BM-252
BM-22 BM-22 BM-22
BM-20 BM-20 BM-20
Hoo
k
Screw
Step
1
Step
1
Step
2
Step
3
Step
3
Step
4
Hoo
k
Separation plate
