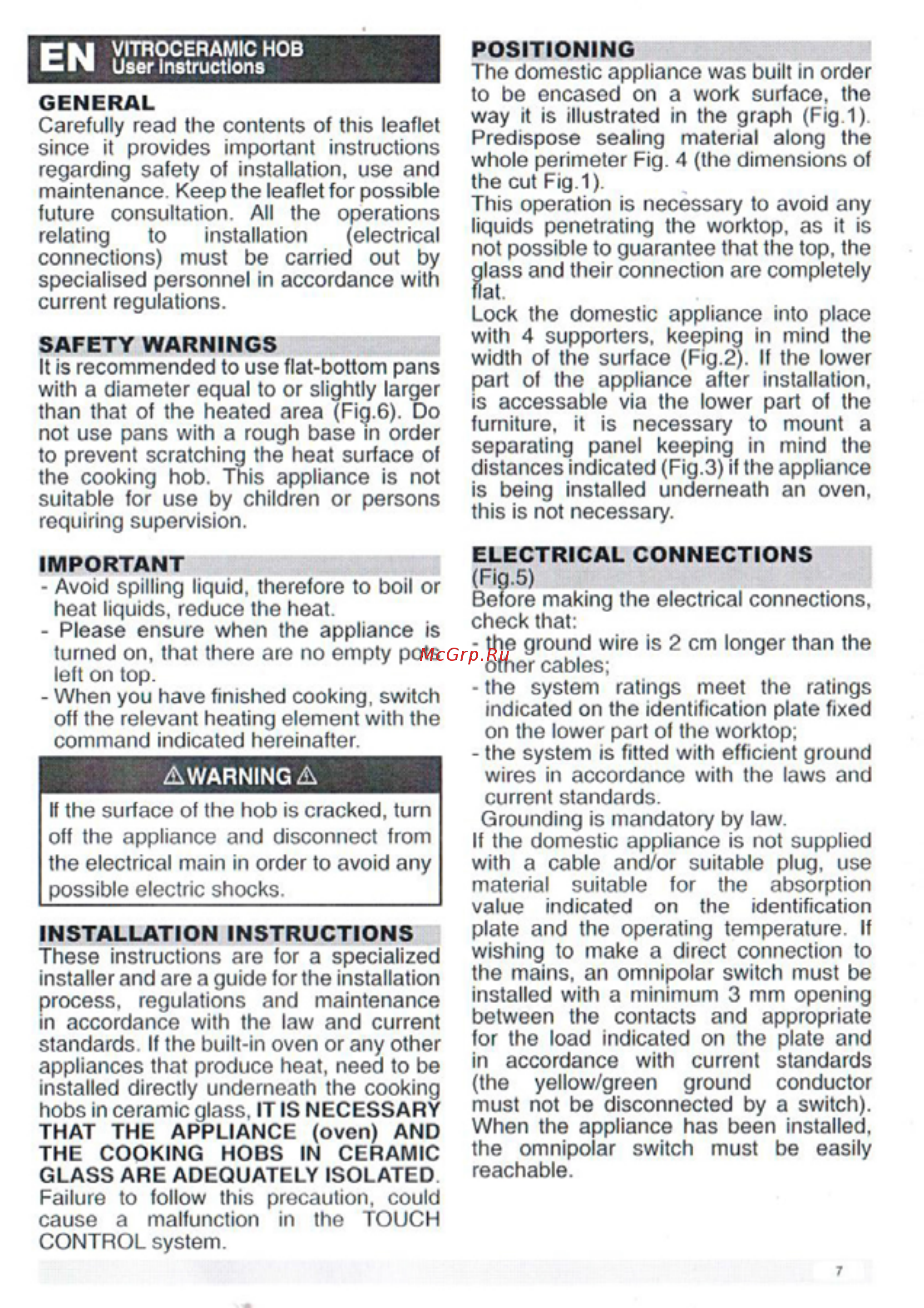

VITROCERAMIC HOB User Instructions GENERAL Carefully read the contents of this leaflet since it provides important instructions regarding safety of installation use and maintenance Keep the leaflet for possible future consultation All the operations relating to installation electrical connections must be carried out by specialised personnel in accordance with current regulations SAFETY WARNINGS It is recommended to use flat bottom pans with a diameter equal to or slightly larger than that of the heated area Fig 6 Do not use pans with a rough base in order to prevent scratching the heat surface of the cooking hob This appliance is not suitable for use by children or persons requiring supervision IMPORTANT Avoid spilling liquid therefore to boil or heat liquids reduce the heat Please ensure when the appliance is turned on that there are no empty pots left on top When you have finished cooking switch off the relevant heating element with the command indicated hereinafter WARNING A If the surface of the hob is cracked turn off the appliance and disconnect from the electrical main in order to avoid any possible electric shocks INSTALLATION INSTRUCTIONS These instructions are for a specialized installer and are a guide for the installation process regulations and maintenance in accordance with the law and current standards If the built in oven or any other appliances that produce heat need to be installed directly underneath the cooking hobs in ceramic glass IT IS NECESSARY THAT THE APPLIANCE oven AND THE COOKING HOBS IN CERAMIC GLASS ARE ADEQUATELY ISOLATED Failure to follow this precaution could cause a malfunction in the TOUCH CONTROL system POSITIONING The domestic appliance was built in order to be encased on a work surface the way it is illustrated in the graph Fig 1 Predispose sealing material along the whole perimeter Fig 4 the dimensions of the cut Fig 1 This operation is necessary to avoid any liquids penetrating the worktop as it is not possible to guarantee that the top the 8lass and their connection are completely at Lock the domestic appliance into place with 4 supporters keeping in mind the width of the surface Fig 2 If the lower part of the appliance after installation is accessable via the lower part of the furniture it is necessary to mount a separating panel keeping in mind the distances indicated Fig 3 if the appliance is being installed underneath an oven this is not necessary ELECTRICAL CONNECTIONS Fig 5 Before making the electrical connections check that the ground wire is 2 cm longer than the other cables the system ratings meet the ratings indicated on the identification plate fixed on the lower part of the worktop the system is fitted with efficient ground wires in accordance with the laws and current standards Grounding is mandatory by law If the domestic appliance is not supplied with a cable and or suitable plug use material suitable for the absorption value indicated on the identification plate and the operating temperature If wishing to make a direct connection to the mains an omnipolar switch must be installed with a minimum 3 mm opening between the contacts and appropriate for the load indicated on the plate and in accordance with current standards the yellow green ground conductor must not be disconnected by a switch When the appliance has been installed the omnipolar switch must be easily reachable r
