Chapter 2 Hardware Installation and Connection

GS2200-8/24 User’s Guide

• Make sure the position of the Switch does not make the rack unstable or top-heavy. Take all

necessary precautions to anchor the rack securely before installing the unit.

2.3.2 Attaching the Mounting Brackets to the Switch

1 Position a mounting bracket on one side of the Switch, lining up the four screw holes on the bracket

with the screw holes on the side of the Switch.

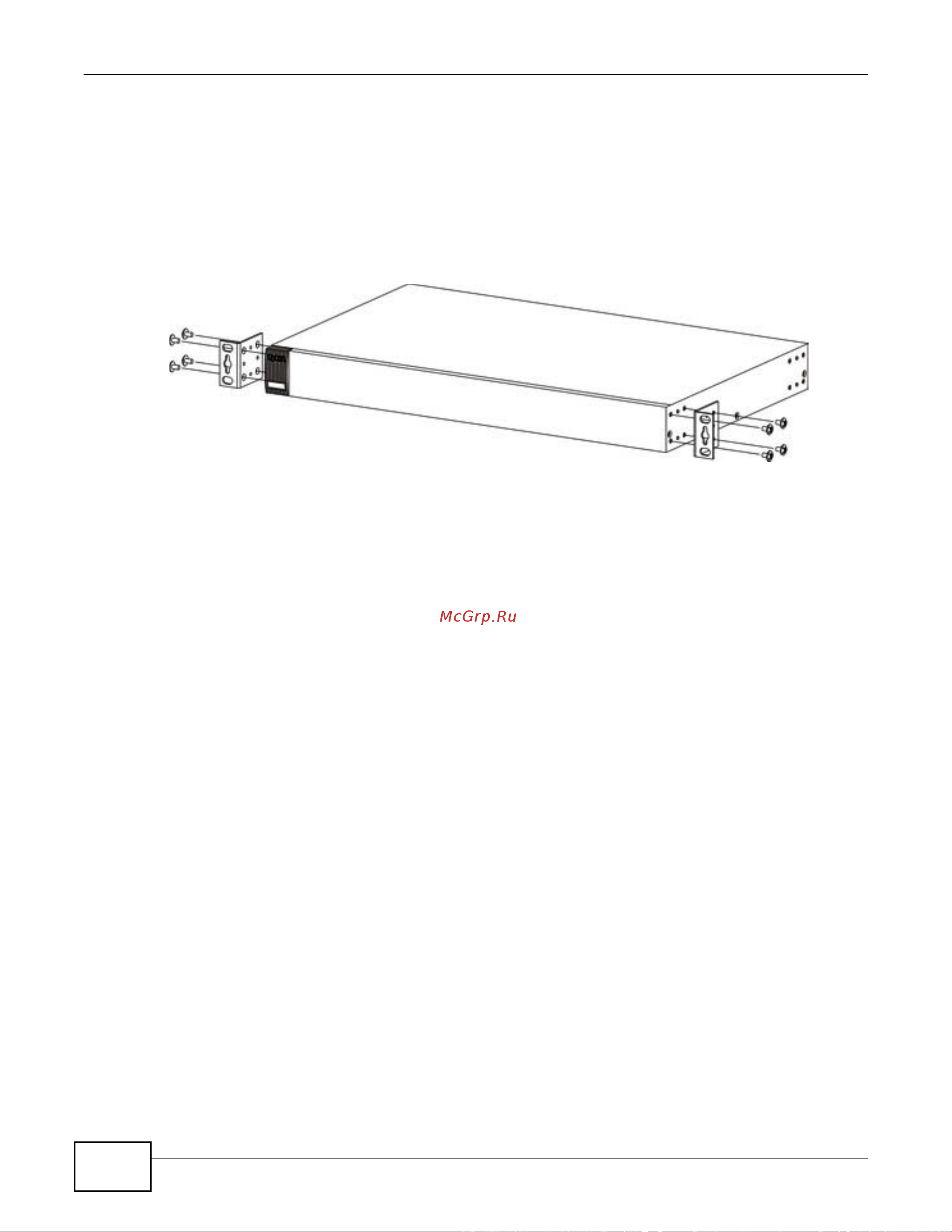

Figure 5 Attaching the Mounting Brackets

2 Using a #2 Philips screwdriver, install the M3 flat head screws through the mounting bracket holes

into the Switch.

3 Repeat steps 1 and 2 to install the second mounting bracket on the other side of the Switch.

4 You may now mount the Switch on a rack. Proceed to the next section.
