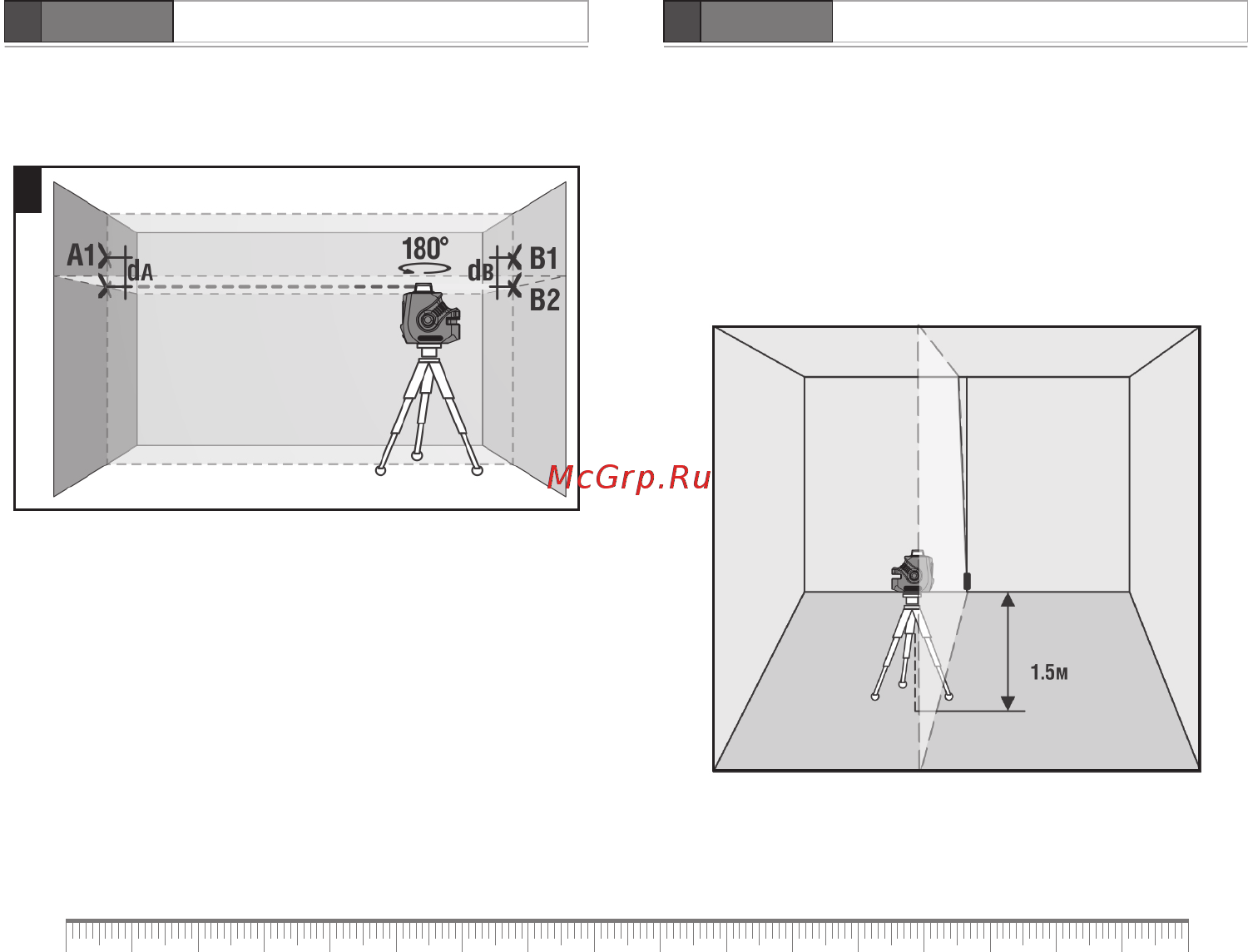

5. Turn the instrument by 180 ° and mark the point where laser lines

intersect each other on the opposite wall as A2 (A1, A2 must be on the

same vertical line) (see figure D).

6. Measure distance dA between points A1 and A2 and dB between

points B1 and B2 (see Figure D). If deviation between dA and dB values

exceeds 3 mm, please contact the service center.

CHECK OF VERTICAL LINE

Use a plumb bob as a reference of a vertical line. Place the instrument

at distance of 1,5m from the plumb bob.

1. Unlock the compensator, switch on the vertical laser line and align it

with the low point of plumb bob.

2. If deviation between the laser line and the plumb bob line exceeds

±0.3 mm per 1m of the plumb bob length (for a 2.5m plumb bob

deviation shouldn’t exceed 0.75 mm) please contact service center.
