Not for

Reproduction

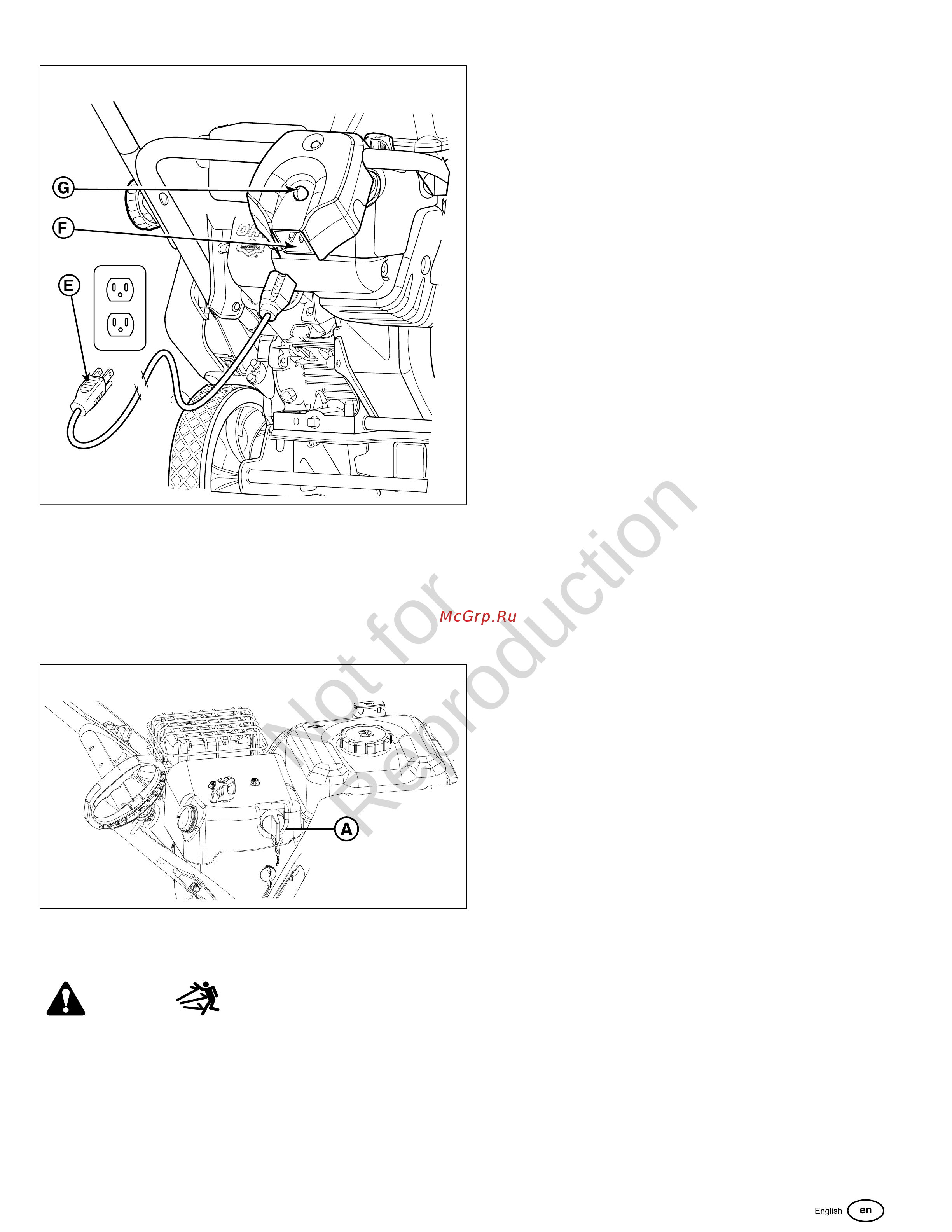

Stop the Engine

1. Turn the ignition key (A, Figure8) to the OFF

position.Remove the ignition key or the Push /Pull key, if

equipped.

2. Keep the key in a safe location out of the reach of

children. The engine cannot start without the key.

Adjusting the Discharge Chute and

Deflector

WARNING

Ice, gravel, or other unintended objects can be picked up by

the auger and thrown from the chute with force.

Objects thrown from the chute could cause death, serious

injury, or property damage.

• Always be aware of the direction the snow is being

thrown.

NOTICE Do not use the chute deflector or the chute

rotation handle to lift the unit. These were designed for

making needed adjustment only.

Chute Rotation - Lever Operated(If equipped)

1. Squeeze and hold the button on the chute control handle

(C, Figure9).

2. Push the handle forward or pull it rearward to rotate the

chute.

3. Release the button to lock the chute in the desired

position.

NOTICE Do not use excessive force when trying to

operate the control.

Chute Rotation - Handle Operated(If equipped)

1. HOLD the chute control handle at the base of the chute

(D, Figure9).

2. Turn the handle left or right to rotate the chute. A tension

plate holds the chute in the desired position.

Chute Rotation - Switch Operated(If equipped)

1. Push the switch (E, Figure9) to rotate the chute.

2. Release the switch to lock the chute in the desired

position.

Chute Rotation - Crank Operated(If equipped)

1. Turn the crank (S, Figure9) clockwise to move the

discharge chute to the right.

2. Turn the crank counter-clockwise to move the discharge

chute to the left.

Deflector Adjustment

1. Squeeze and hold the button on the deflector control

handle (F, Figure9), or loosen the wing knob (F).

2. Move the deflector up or down to adjust the snow

discharge height and distance.

3. Release the button to lock the deflector in the desired

position, or tighten the wing knob.
