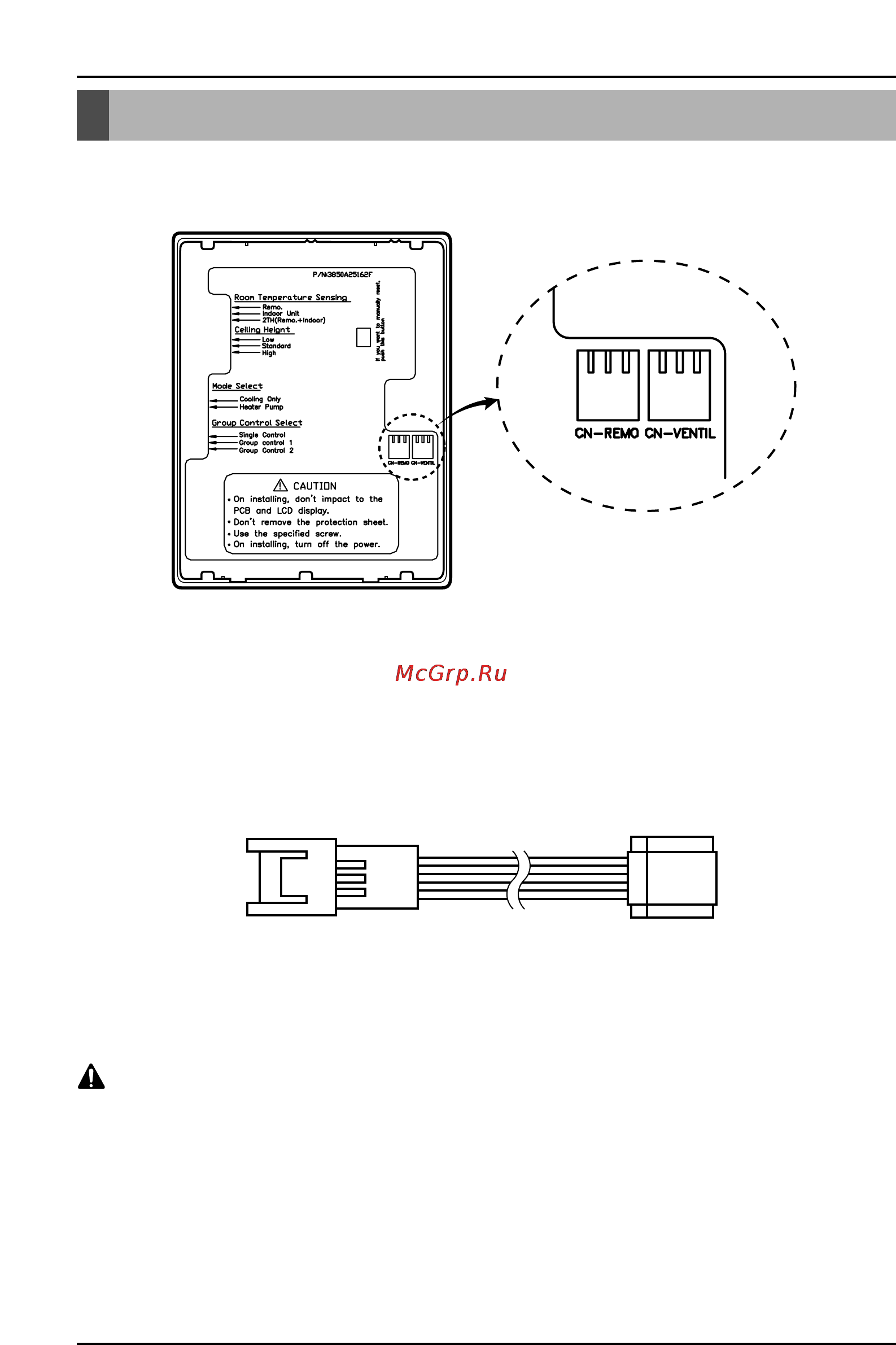

Remote controller connection method
Remote controller connection method
10 Weekly Wired Remote Controller
1. Check the cable is conneced with CN-REMO
(CN-VENTIL is used if remocon is connected with ventilator)
2. Connect the cables between the indoor unit and the remote controller.
Connector for the
remote controller side
Connector for the
indoor unit side
* When installing the wired remote controller, do not install it buried within the wall.
(It can cause problems to the temperature sensor.)
Do not install the cable for longer distance than 50m. (It can cause a communication error.)
When installing the cable, check the connector between the remote controller and the connector. The
connector will not be connected well when connected backwards.
CAUTION
