8 Deluxe wired remote controller

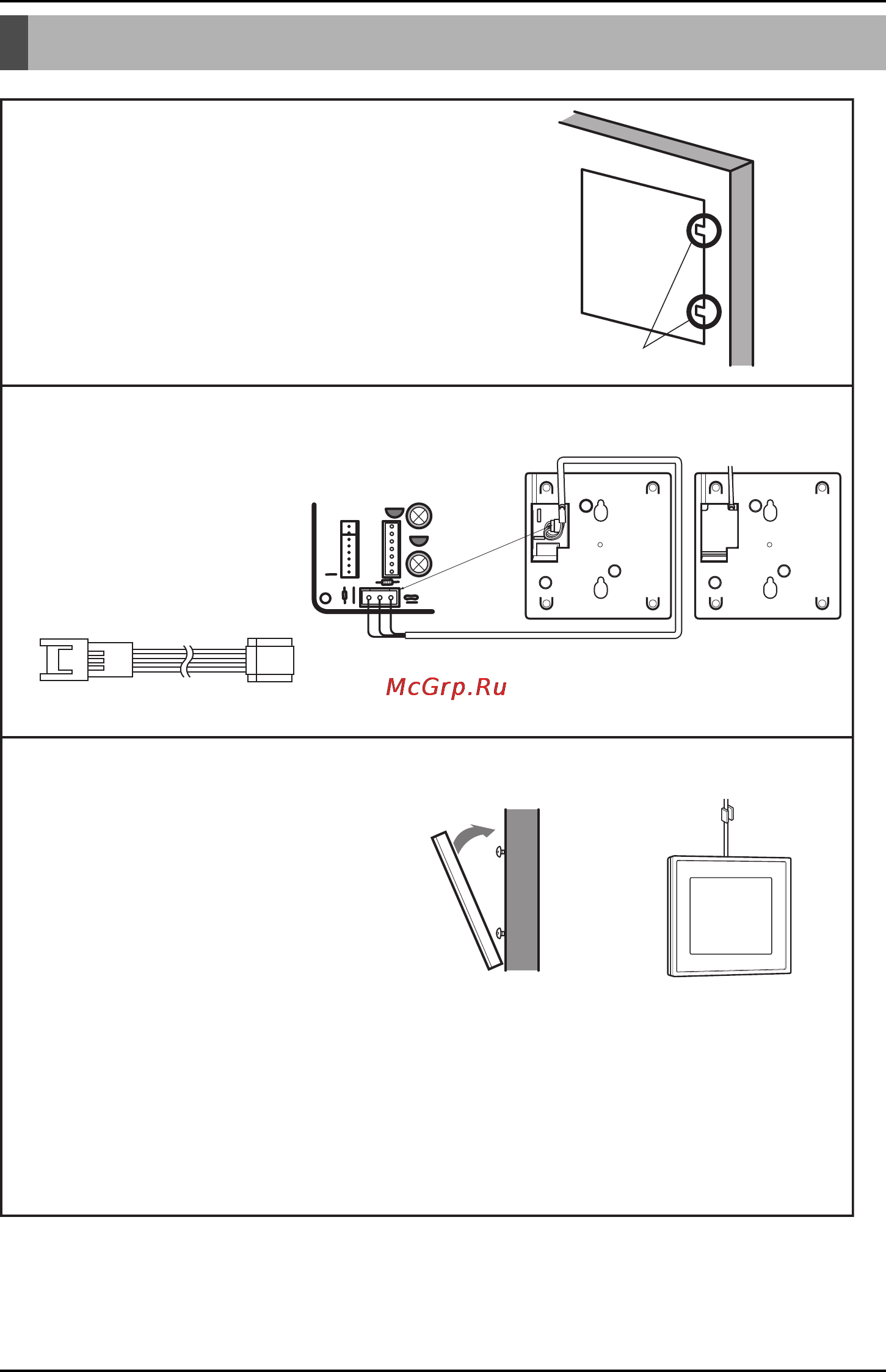

Installation Method
The position of the fixing screws
Side of
remote Controller
Side of
Indoor Unit
Fixing the
remote controller
Fixing the
connecting cable
Main frame
CN-REMO
LO2K
J15
LO1K
LO1D
C07D
C01K
J14
CN-DISP
CN-M CN-ZONEC
IC01A
Be careful not to alter the colors
of the remote controller
connection cables.
Brown
Red Yellow
Yellow
Yellow
1
Put the installation paper on the place and determine the
position and height of the fixing screws of the deluxe wired
remote controller.
• Refer to the printed side of the installation paper.
2
Plug the connecting cable into
the indoor unit.
• The product is being shipped
with the cable connected only
to the remote controller. Put
each cable to the remote
controller according to the
color match
3
Remove the installation paper before installing
the remote controller so that it can fit into the
right place.
* When installing the deluxe wired remote controller, do not install it so that it is buried to the wall.
(This can cause error in the temperature sensor)
* When installing multiple deluxe wired remote controllers horizontally in one location, leave a minimum
distance apart (2cm). (This can cause error in the temperature sensor)
* Do not install the cable with a distance of 50 m or longer. (This can cause communication error.)
* When installing the cable, check whether the connector between the remote controller and the product is
installed properly. The connector will not be connected when installed in opposite sides.
❏ Supply the power after connecting deluxe wired remote controller.
When you need to change deluxe wired remote controller, switch off the main power and change it Before
switch off the main power if changed the deluxe wired remote controller , you can't use the option function of
the indoor unit.
