8 Simple Wired Remote Controller
Installation Method
CN-REMO
LO2K
J15
LO1K
LO1D
C07D
C01K
J14
CN-DISP
CN-M CN-ZONEC
IC01A
The position of the fixing screws
Side of
remote Controller
Side of
Indoor Unit
Main
indoor unit
Red Yellow Brown
Main frame
Fixing the
remote controller
2cm

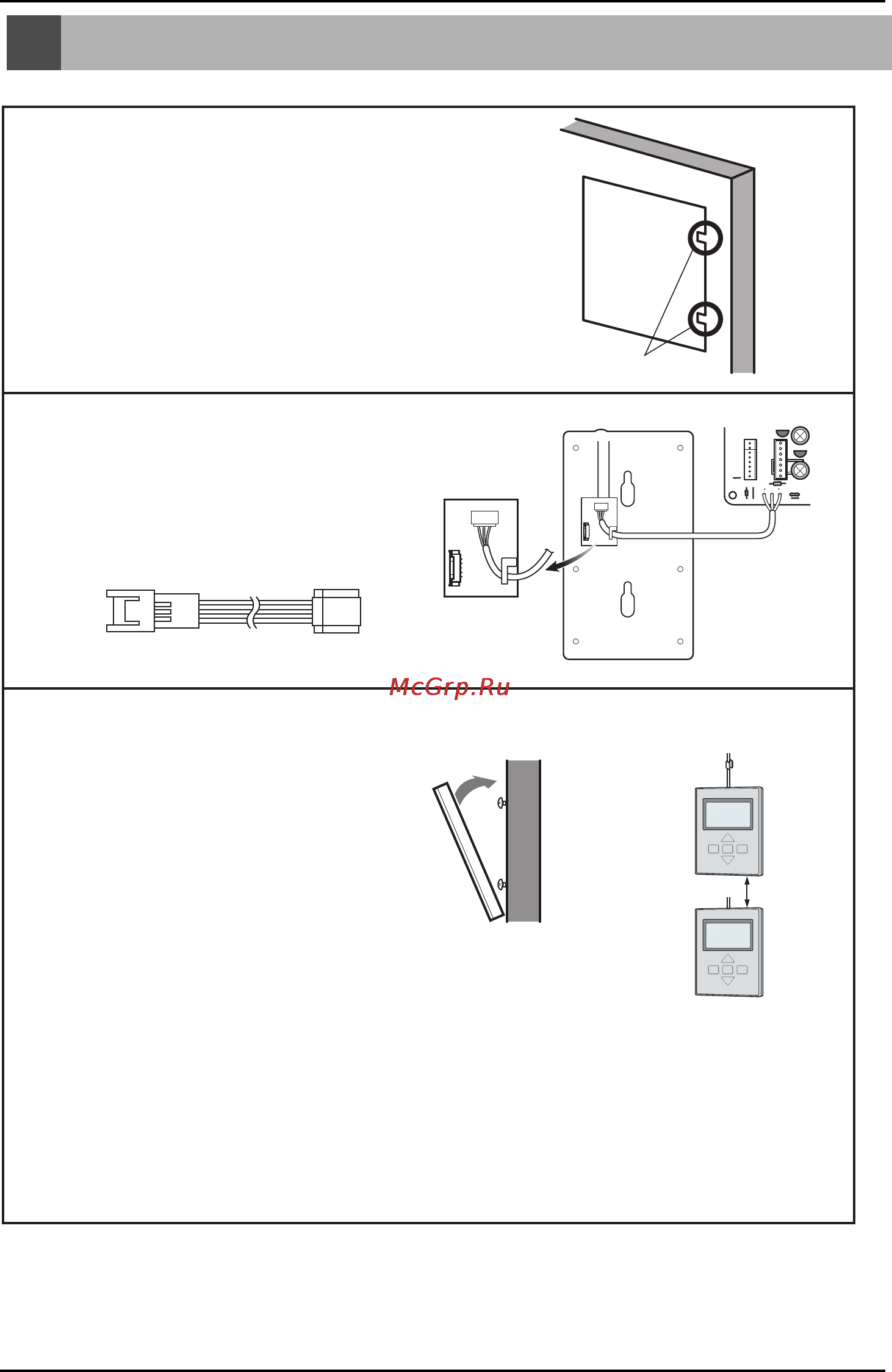

1
Put the installation paper on the place and determine the
position and height of the fixing screws of the wired remote
controller.
• Refer to the printed side of the installation paper.
2
Plug the connecting cable into the indoor unit.
• The product is being shipped with the cable
connected only to the remote controller.
Fix the connecting cable with the cable rack.
3
Remove the installation paper before installing
the remote controller so that it can fit at the right
place.
* Do not embed the remote controller into the wall. (It may cause the breakdown of the temperature
sensor.)
* If you want to install a number of remote controller at the same place in a vertical line, install them at
regular intervals of 2cm. (It may cause the breakdown of the temperature sensor.)
* Do not install the cable with a distance of 50 m or longer. (This can cause communication error.)
* When installing the cable, check whether the connector between the remote controller and the product is
installed properly. The connector will not be connected when installed in opposite sides.
❏ Supply the power after connecting wired remote controller.
When you need to change wired remote controller, switch off the main power and change it.
If the wired remote controller is changed before switching off the main power, the option function of the indoor
unit can't be used. (option function like "slo" fan speed selection)
