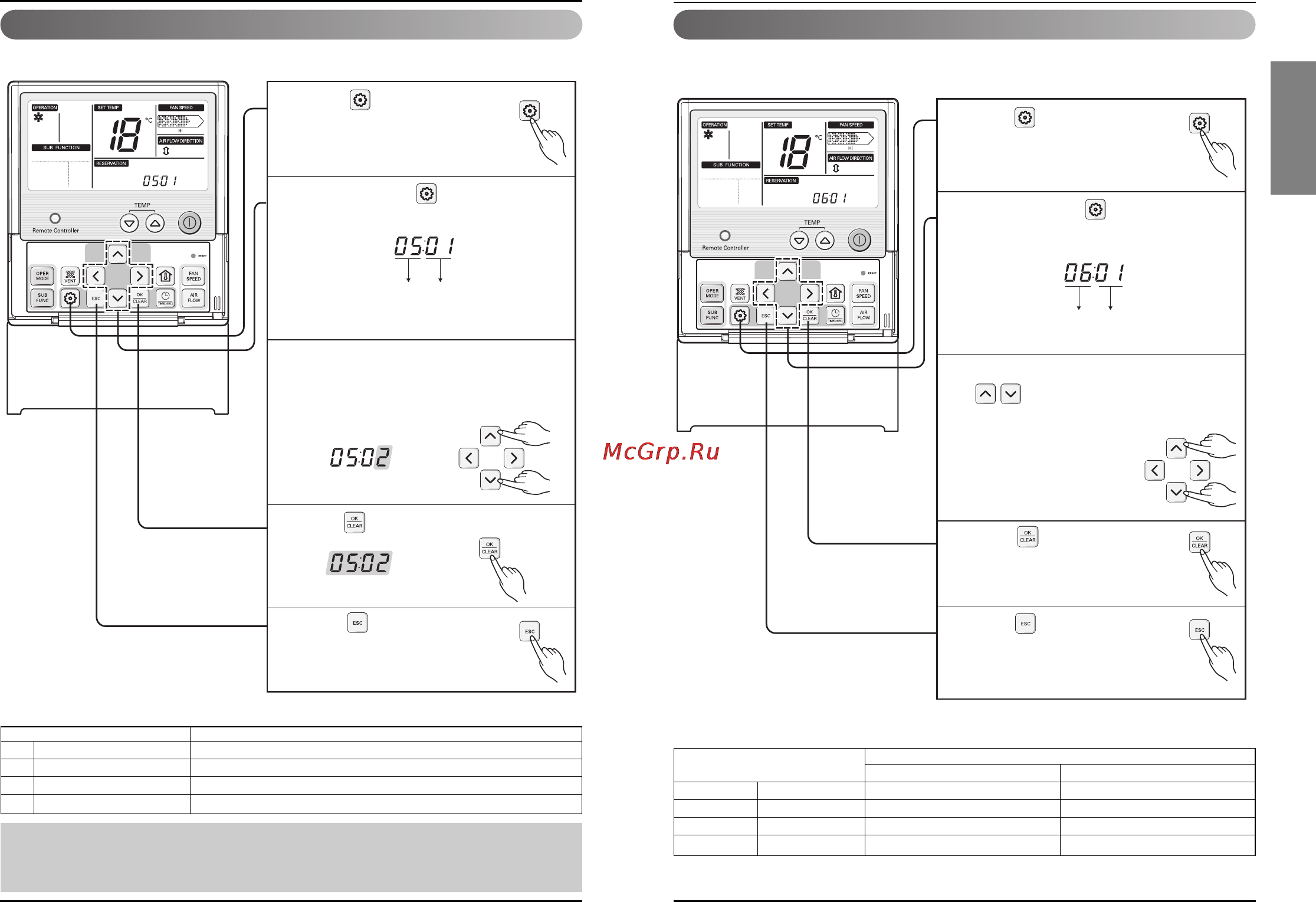

Function Code Ceiling height
Press button for 4 seconds
to enter the installer setting
mode until timer segment
display “01:01”.
1
Repeat pressing button to select
Function code 05.
Ex) Setting Ceiling Height as 'Standard'.
2
Select ceiling height value by pressing
button.
(01:Low, 02:Standard, 03:High,
04:Super high)
3
Press button to save or release.
4
Press button to exit or
system will automatically exit
after 25 seconds without any
input.
5
Owner’s & Installation Manual 17
ENGLISH
16 Wide Wired Remote Controller
Installation instruction
Function Code Pressure
Press button for 4 seconds
to enter the installer setting
mode until timer segment
display “01:01”.
1
Repeat pressing button to select
Function code 06.
2
Select static pressure by pressing
button.
(01:V-H, 02:F-H, 03:V-L, 04:F-L)
3
Press button to save or
release.
4
Press button to exit or
system will automatically exit
after 25 seconds without any
input.
5
Installation instruction
Installer Setting -Ceiling Height Selection Installer Setting -Static Pressure Setting
This function is to adjust FAN Airflow rate according to ceilingheight (only cassette model)
This function is applied to only duct type. Setting this in other cases will cause malfunction.
❊ Ceiling height setting is available only for some products.
❊ Ceiling height of ‘Super high’ function may not exist depending on the indoor unit.
❊ Refer to the product manual for more details.
Pressure selection
Function
Zone state ESP standard value
01 V-H Variable High
02 F-H Fixed High
03 V-L Variable Low
04 F-L Fixed Low
Ceiling Height Level Description
01 Low Decrease the indoor airflow rate 1 step from standard level
02 Standard Set the indoor airflow rate as standard level
03 High Increase indoor airflow rate 1 step from standard level
04 Super high Increase indoor airflow rate 2 steps from standard level
<Ceiling Height Selection Table>
<Static Pressure Setting Table>
