LG PQRNC0 [11/22] White extension cable for indoor unit
![LG PQRNC0 [11/22] White extension cable for indoor unit](/views2/1108212/page11/bgb.png)

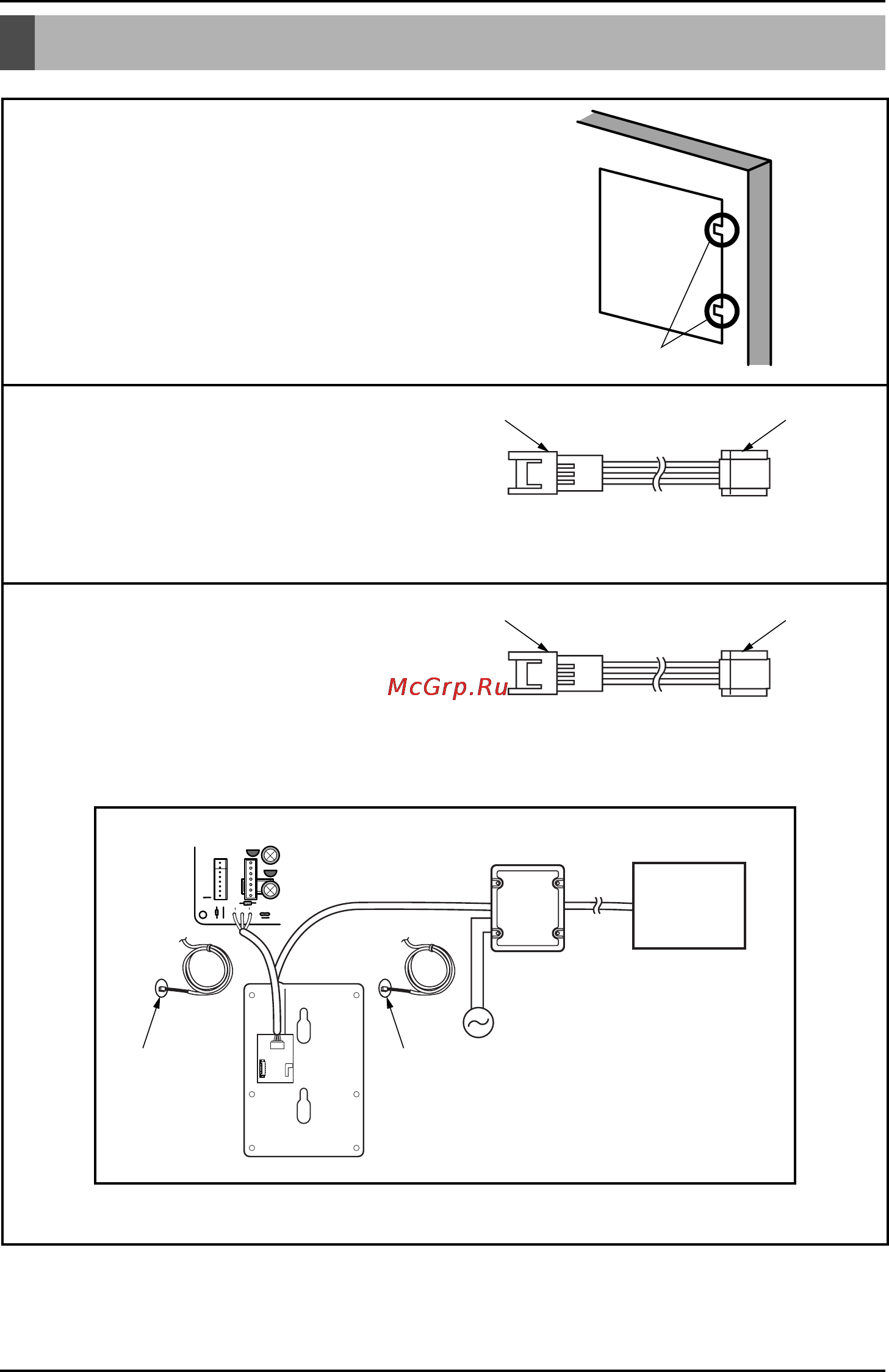

10 Junction Simple Wired Remote controller
Installation Method
CN-REMO
LO2K
J15
LO1K
LO1D
C07D
C01K
J14
CN-DISP
CN-M CN-ZONEC
IC01A
The position of the fixing screws
< Extension Cable for Indoor unit >
< Extension Cable for Dry contact module >
Main
indoor unit
Red Yellow Brown
Main frame
Dry Contact Unit
Indoor Unit PCB
Side of
remote Controller
Side of
Indoor Unit
BlueWhite
Side of
remote Controller
Side of Dry
Contact Module
White(9pin)Yellow
DRY CONTACT UNIT
LG
White :
Extension
Cable for
Indoor unit
Yellow :
Extension Cable for
Dry contact module
AC 220V
Radiator
Or Other
equipment
1
Put the installation paper on the place and determine the
position and height of the fixing screws of the wired remote
controller.
• Refer to the printed side of the installation paper.
2
Plug the Air-conditioner connecting cable into the
indoor unit.
• Use Extension cable for connecting Remote
controller to Indoor Connect cable for
Air-conditioner
3
Plug the Dry contact Module connecting cable
into the Dry contact Modul
Installation Method
