NH-C14

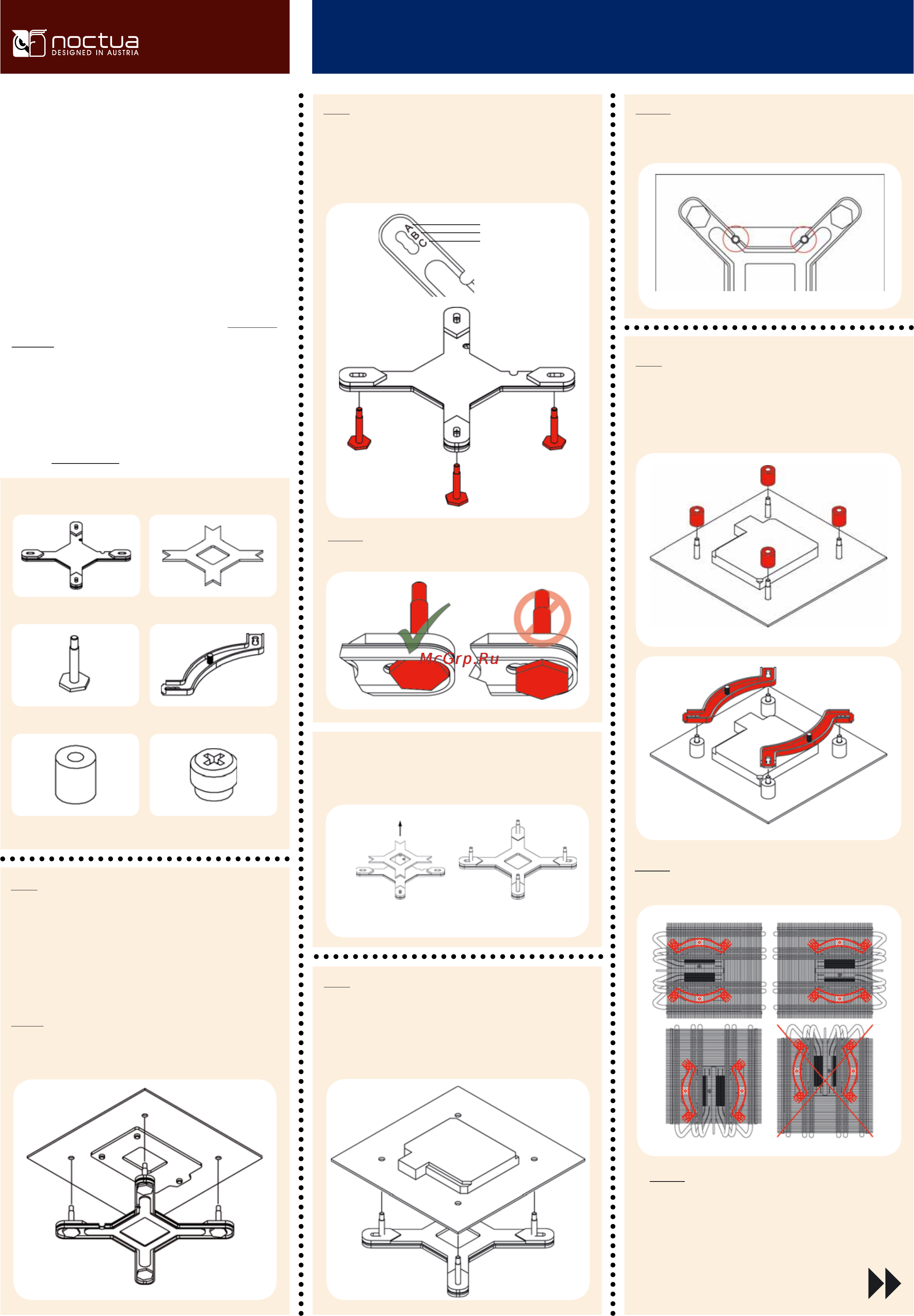

Installation Manual INTEL

Removing the mainboard

Step 1:

In case you want to use the cooler on an assembled system,

you first have to remove the mainboard from the case in order

to be able to install the supplied backplate.

Caution: On LGA1366 and LGA1156/1155, the supplied back-

plate will install over the mainboard’s stock backplate, so the

mainboard’s stock backplate must not be taken off.

Required mounting parts:

First put the four bolts into the holes appropriate for your

mainboard’s CPU socket.

Setting up the backplate

Step 2:

Thank you very much for choosing a Noctua cooler. This

manual will guide you through the installation process of

the SecuFirm2

mounting system step by step.

Prior to installing the cooler, please consult the compat-

ibility list on our website and verify that the cooler is fully

compatible with your motherboard. Should you encounter

any difficulties, please check the FAQs on our website and

don’t hesitate to contact our support team at support@

noctua.at.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Multilingual versions of this manual are available on our

website: www.noctua.at

Caution: Please verify that all four bolts are put into the ap-

propriate holes fully pushed in.

Step 4:

Installing the mounting bars

First put the plastic spacers onto the bolts, then add the

mounting bars.

Noctua NH-C14 INTEL

Installation Manual

4x plastic spacers 4x thumbscrews

1x 3-in-1 Intel backplate

4x bolts for backplate 2x mounting bars

LGA1366 (80mm)

LGA1156/1155 (75mm)

LGA775 (72mm)

For use on LGA1366 and LGA1156/1155 mainboards, please

remove the rubber inlay. Make sure that the rubber inlay is

in place for LGA775.

LGA1366 & LGA1156/1155 LGA775

Caution: On LGA1156/1155, please make sure that the two

cuts in the supplied backplate align with the screws of the

mainboard’s stock backplate.

Caution: Choose the alignment of the mounting bars according

to the desired final orientation of the cooler:

Step 3:

Attaching the backplate

Place the backplate on the rear side of the mainboard so that

the bolts stick through the mounting holes.

1x LGA775 rubber inlay

Caution: In tower style cases, please avoid installing

the NH-C14 with the bends of the heatpipes pointing

upwards as this may result in reduced cooling perform-

ance.
