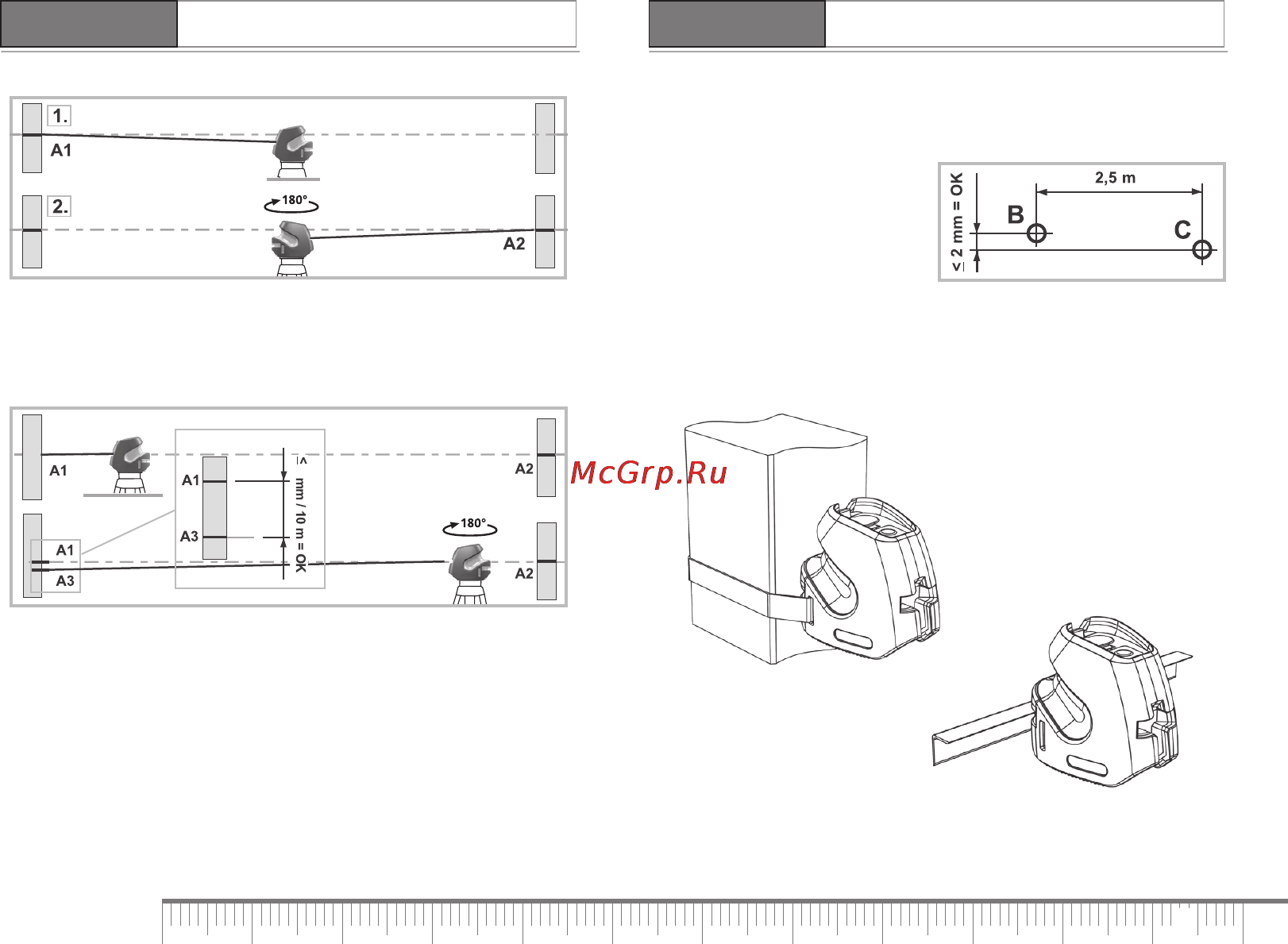

Performing the calibration check

3. Position the device as near as possible to the wall at the height of point A1.

4. Turn the device through 180° and mark point A3. The difference between

points A1 and A3 is the tolerance.

When A1 and A3 are more than 3 mm/10 m apart, an adjustment is necessary.

Contact your authorised dealer or else CONDTROL Service Department.

Checking the vertical line

Position the device about 5 m from a wall. Fix a plumb bob with a line of 2.5 m

length on the wall, making sure that the bob can swing freely. Switch on the

device and align the vertical laser to the plumb line. The precision is within

the specified tolerance if the deviation between the laser line and the plumb

line is not greater than ± 1.5 mm.

Checking the horizontal line

Position the device about 5 m from a wall and switch on the cross laser.

Mark point B on the wall. Turn the laser cross approx. 2.5 m to the right

and mark point C. Check whether

the horizontal line from point C is

level with point B to within ± 2 mm.

Repeat the process by turning the

laser to the left.

MOUNTING OPTIONS
