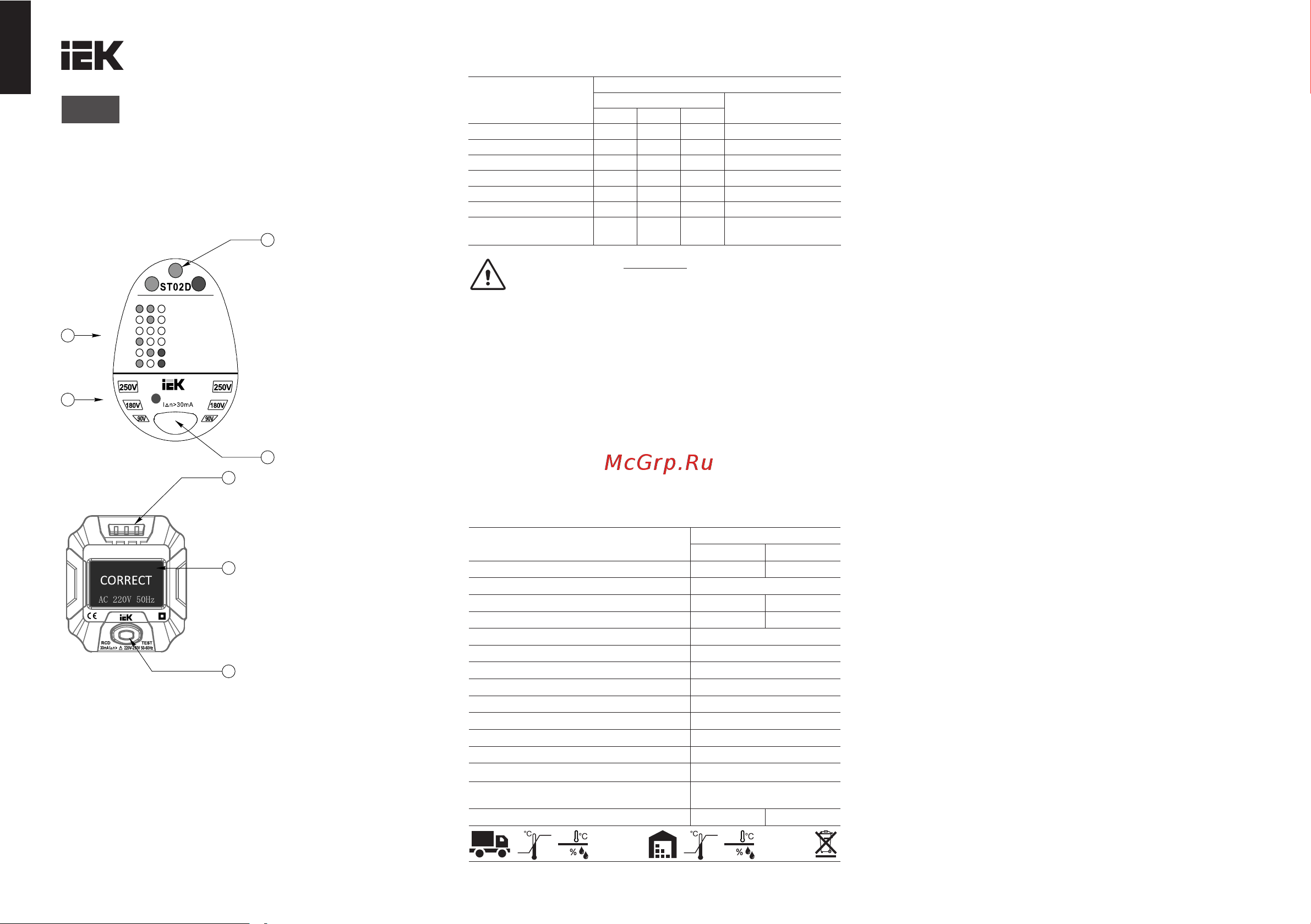

Basic product data
The socket tester is available in two versions:
trademark is designed to check the correct installation
The socket tester meets the requirements of LVD Directive 2014/35/EU,
ÅÌÑ Directive 2014/30/EU, RoHS Directive 2011/65/EU.
ST02D – with LED indication.
ST03D – with indication on the LCD display, with voltage and frequency
measurement function.
Socket tester ST02D, ST03D of ARMA2L 5 series of IEK
of sockets and the operation of residual current devices.
1 LED state indicator
2 Fault table
3 Voltage indicator
4 RCD test button
3 RCD test button
1 LED fault indicator
2 LCD display
Socket tester ST02D
Socket tester ST03D
}
}
НЕИСПРАВНОСТИ НЕТ
ОБРЫВ НЕЙТРАЛИ
ОБРЫВ ФАЗЫ
ОБРЫВ ЗЕМЛИ
ФАЗА И ЗЕМЛЯ
ПЕРЕПУТАНЫ
ФАЗА И НЕЙТРАЛЬ
ПЕРЕПУТАНЫ
ТЕСТ УЗО
1
4
2
3
ST03D ТЕСТЕР РОЗЕТОК
1
2
3
Name of the fault
Type
ST02D
ST03D
Green
Green
Red
No fault
+
+
-
CORRECT
Open neutral
-
+
-
MISSING NEUTRAL
Open phase
-
-
-
-
Open ground
+
-
-
MISSING GROUND
Phase/ground lines reversed
-
+
+
LIVE GROUND REVERSE
Phase/neutral lines reversed
+
-
+
LIVE NEUTRAL REVERSE
Phase/ground lines reversed,
breakage of the ground conductor
-
LIVE GROUND
REVERSE&MISSING GROUND
Èçäàíèå / Version 1
ARMA2L 5
EN
l Do not test mains voltages above 250 V AC.
l The socket tester does not detect the inversion of neutral and
ground.
Safety precaution
l To avoid electric shock, the following rules must be observed:
l Read all instructions carefully before using the device.
l The socket tester is intended for short-term operation, do not leave
the tester in the socket for more than 2 minutes.
l Before using the socket tester, test it on a known working socket.
l If you find a malfunction, contact a specialist for proper installation
of the socket.
Instructions for working with the socket tester
Fault table
To avoid the tester failure, it is forbidden to press
RCD test
ATTENTION
the RCD test button for more than 3 seconds.
Checking the correct installation of the electrical socket
Connect the tester to the socket under test. When the socket is
connected correctly, the green LEDs will light up for the ST02D model, and
"CORRECT" will appear on the display for the ST03D model. In all other
cases, the connection of the outlet is erroneous. The interpretation of the
fault indication is given in the table above.
Before checking the RCD, it is necessary to check the socket for
correct installation according to the previous section. If the socket is
connected correctly, press the "ÒÅÑÒ ÓÇÎ" button. If the RCD and line
are good, the RCD will trip.
Correct connection: neutral conductor on the left, phase conductor
on the right.
The device allows you to check RCDs with settings of 10 mA and 30 mA.
Note:
Technical data
Parameter
Value for tester type
ST02D
LCD display
No
Mains operating voltage, V
90–250 V / 45–65 Hz
Measured mains voltage, V
–
Voltage measurement accuracy, V
–
RCD test, mA
10, 30
Measurement category
CAT III
Pollution degree acc.to IEC 61010-1
2
Protection class acc. to IEC 61140
II
Operating temperature
from 0 °Ñ to plus 40 °Ñ at RH up to 70 %
Power source
2ґ1,5 V AAA battery
Degree of protection acc. to IEC 60529
IP20
Complete set
Socket tester – 1 pc, passport – 1 pc.
Service life, years
10
Warranty period (from the date of sale, subject to the rules of
transportation, storage and operation), years
2
Dimensions (HґWґD), mm
80ґ46ґ66
+25
70
‒ 10
+50
+25
70
‒ 10
+60
