ENGLISH

Cutting Trim Molding and Other Frames (Fig. P)

Sketch B in FigureP shows a joint made by setting the mitre arm at 45° to mitre the two

boards to form a 90° corner. To make this type of joint, set the bevel adjustment to zero and

the mitre arm to 45°. Once again, position the wood with the broad flat side on the table and

the narrow edge against thefence.

The two sketches in FigureP are for four-sided objectsonly.

As the number of sides changes, so do the mitre and bevel angles. The chart below gives the

proper angles for a variety of shapes. The chart assumes that all sides are of equal length. For a

shape that is not shown in the chart, use the following formula. 180° divided by the number of

sides equals the mitre or bevelangle.

EXAMPLES

No. Sides Angle Mitre or Bevel

4 45°

5 36°

6 30°

7 25.7°

8 22.5°

9 20°

10 18°

Cutting Compound Mitres (Fig. Q, R)

A compound mitre is a cut made using a mitre angle and a bevel angle at the same time.

This is the type of cut used to make frames or boxes with slanting sides like the one shown in

FigureQ.

NOTE: If the cutting angle varies from cut to cut, check that the bevel clamp knob and the

mitre lock knob are securely tightened. These knobs must be tightened after making any

changes in bevel ormitre.

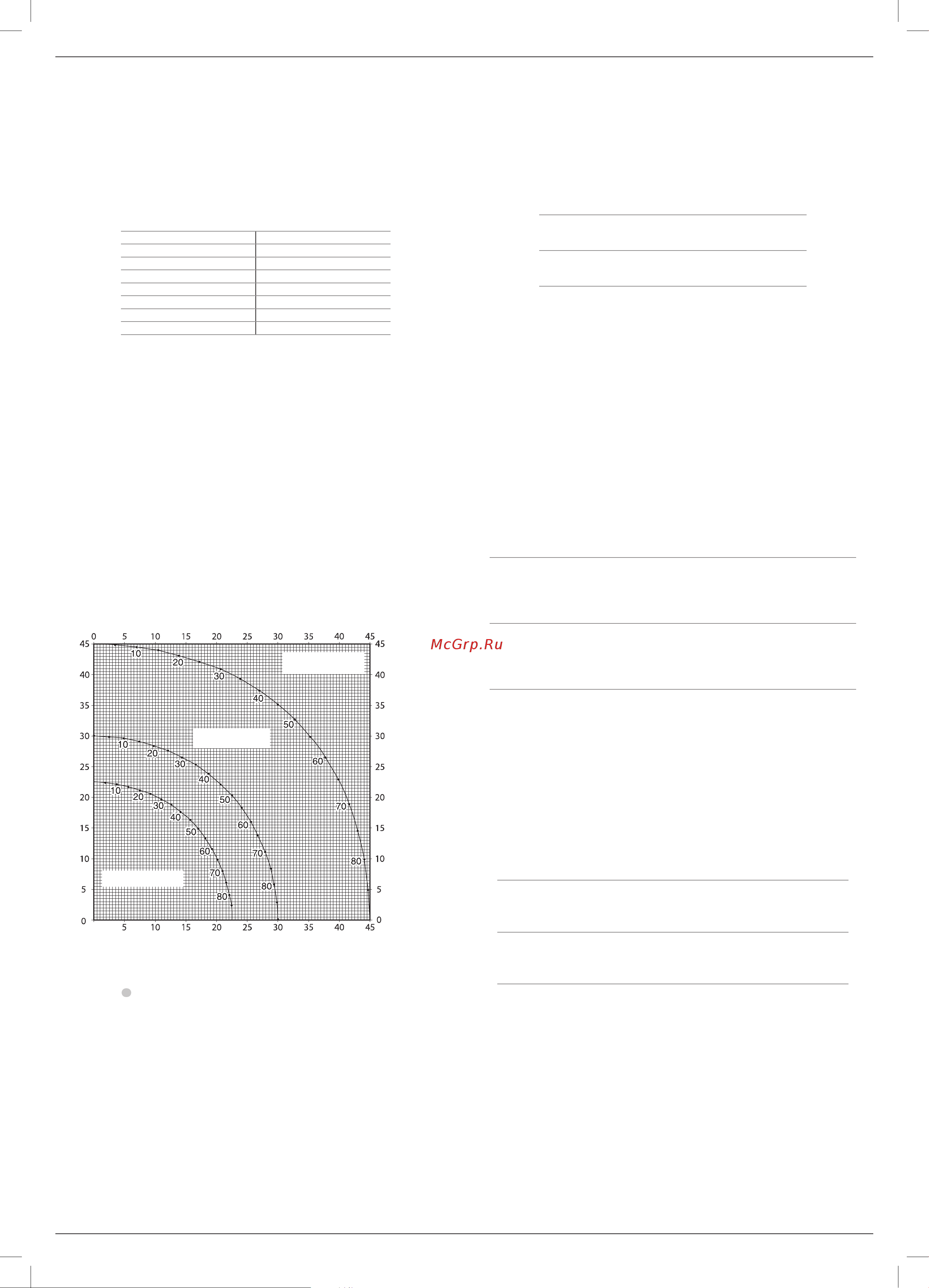

The chart will assist you in selecting the proper bevel and mitre settings for common

compound mitre cuts. To use the chart, select the desired angle “A” (FigureR) of your

project and locate that angle on the appropriate arc in the chart. From that point follow the

chart straight down to find the correct bevel angle and straight across to find the correct

mitreangle.

Set your saw to the prescribed angles and make a few trial cuts. Practice fitting the cut pieces

together until you develop a feel for this procedure and feel comfortable withit.

EXAMPLE: To make a four-sided box with 26° exterior angles (Angle A, FigureR), use the

upper right arc. Find 26° on the arc scale. Follow the horizontal intersecting line to either side

to get mitre angle setting on saw (42°). Likewise, follow the vertical intersecting line to the

top or bottom to get the bevel angle setting on the saw (18°). Always try cuts on a few scrap

pieces of wood to verify settings onsaw.

SET THIS BEVEL ANGLE ON SAW

SET THIS MITER ANGLE ON SAW

ANGLE OF SIDE OF BOX (ANGLE"A")

SQUARE BOX

6 SIDED BOX

8 SIDED BOX

Mitre Scale (Fig.A)

The mitre scale

7

is used when calculating angles. To calculate the proper mitre angle, divide

180° by the number of sides of the box or frame. Refer toExamples.

When Mitreing to the Right

To increase the mitre angle when mitreing to the right, move the arm to align the appropriate

vernier mark with the closest mark on the mitre scale to the right. To decrease the mitre angle

when mitreing to the right, move the arm to align the appropriate vernier mark with the

closest mark on the mitre scale to theleft.

When Mitreing to the Left

To increase the mitre angle when mitreing to the left, move the arm to align the appropriate

vernier mark with the closest mark on the mitre scale to the left. To decrease the mitre angle

when mitreing to the left, move the arm to align the appropriate vernier mark with the closest

mark on the mitre scale to theright.

Cutting Base Molding

ALWAYS MAKE A DRY RUN WITHOUT POWER BEFORE MAKING ANYCUTS.

Straight 90° Cuts (Fig. S)

Position the wood against the fence as shown in FigureS. Turn on the saw, allow the blade to

reach full speed and lower the arm smoothly through thecut.

Cutting Base Molding up to 89 mm High Vertically Against The Fence

(Fig. L, S)

Position molding as shown in FigureS.

All cuts are made with the back of the molding against the fence and bottom of the molding

against thebase.

Inside corner Outside corner

Left side

1. Mitre left 45°

2. Save left side of cut

1. Mitre right 45°

2. Save left side of cut

Right side

1. Mitre right 45°

2. Save right side of cut

1. Mitre left 45°

2. Save right side of cut

Material up to 89 mm can be cut as described above. For wider boards [up to 108 mm] several

minor concessions must bemade.

When cutting a board between 89 mm and 108 mm in width the roller on the tip of the

guard could hang up on the workpiece. If this occurs, simply place your right thumb on the

upper side of the guard and roll the guard up just enough to clear the workpiece, as shown in

FigureL. Once you have cleared the workpiece, you can release the guard and it will continue

to open as the cutprogresses.

When mitreing to the right side of a base molding wider than 89 mm standing vertically

against the fence as in FigureU, the saw can only cut through the board up to 1 inch from the

end of the board. Trying to cut more than an inch will cause the saw’s gear case to interfere

with the workpiece. If you want to cut base molding between 89 mm and 108 mm wide

vertically follow the directionsbelow.

Cutting 89 mm–108 mm Base Molding Vertically Against the Fence

(Fig. S)

• Position molding as shown in FigureS.

• All cuts made with the back of the molding against thefence.

Inside corner Outside corner

Left side*

1. Position molding with bottom of

molding against the base of the saw

2. Mitre left 45°

3. Save left side of cut

1. Position molding with bottom of

molding against the base of the saw

2. Mitre right 45°

3. Save left side of cut

Right side

1. Position molding with bottom of the

molding resting on the base of the saw

2. Mitre right 45°

3. Save right side of cut

1. Position molding with bottom of the

molding against the base of the saw

2. Mitre left 45°

3. Save right side of cut

* NOTE: If the cut must be made somewhere other than 1" from the end of the molding: cut off

the molding at 90° approx. 25.4 mm longer than your final length. Then, make the mitre cut as

described above.

Another method of making the cut is to make a zero degree mitre, 45° bevel cut. Your saw can

cut a bevel 158 mmwide.

Cutting Base Molding Laying Flat and Using the Bevel Feature

• All cuts made with the saw set at 45° bevel and 0mitre.

• All cuts made with back of molding laying flat on thesaw.

• Move the left side fence out of the path of the blade before attempting any of the

followingcuts.

Inside corner Outside corner

Left side

1. Position molding with top of molding

against the fence

2. Save left side of cut

1. Position molding with bottom of the

molding against the fence

2. Save left side of cut

Right side

1. Position molding with bottom of the

molding against the fence

2. Save right side of cut

1. Position molding with top of molding

against the fence

2. Save right side of cut

Cutting Crown Molding

Your mitre saw is better suited to the task of cutting crown molding than any tool made. In

order to fit properly, crown molding must be compound mitreed with extremeaccuracy.

The two flat surfaces on a given piece of crown molding are at angles that, when added

together, equal exactly 90°. Most, but not all, crown molding has a top rear angle (the section

that fits flat against the ceiling) of 52° and a bottom rear angle (the part that fits flat against the

wall) of 38°.

Your mitre saw has special pre-set mitre detent points at 31.62° left and right for cutting crown

molding at the proper angle. There is also a mark on the Bevel scale at 33.85°.

The Bevel Setting/Type of Cut chart gives the proper settings for cutting crown molding. (The

numbers for the mitre and bevel settings are very precise and are not easy to accurately set

on your saw.) Since most rooms do not have angles of precisely 90°, you will have to fine tune

your settingsanyway.

PRETESTING WITH SCRAP MATERIAL IS EX TREME LY IMPORTANT!
