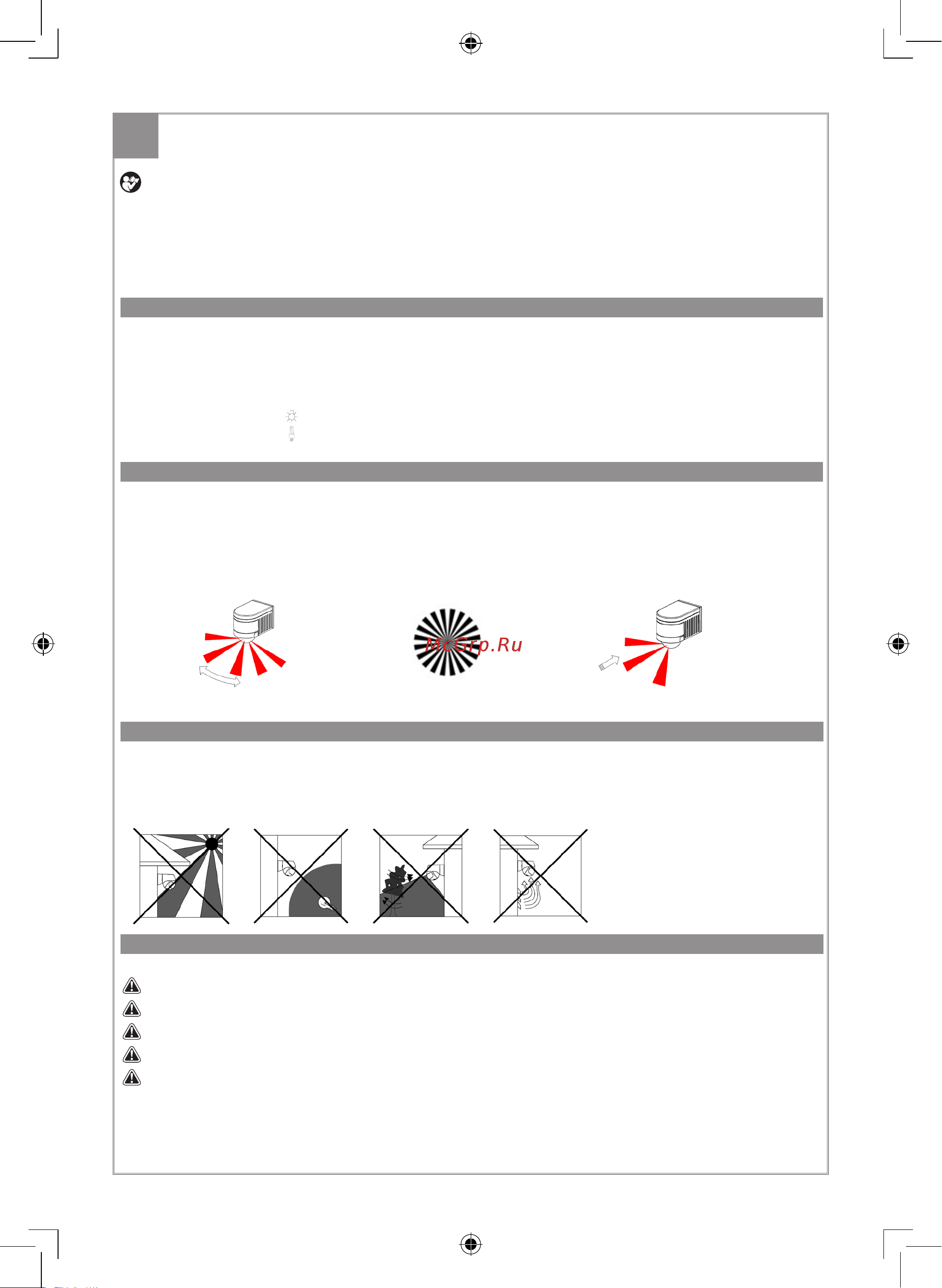

INFRARED MOTION SENSOR

Welcome to use 28503 8 Infrared motion sensor!

The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety,

saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can

start the load at once when one enters detection eld. It can identify day and night automatically. It is easy to install

and used widely.

SPECIFICATION

• Power Source: 220-240V/AC • Detection Range: 360°

• Power Frequency: 50Hz • Detection Distance: 12m max(<24°C)

• Ambient Light: <3-2000LUX (adjustable) • Working Temperature: -20~+40°C

• Time Delay: Min. 10sec±3sec • Working Humidity: <93%RH

Max. 15min±2min • Power Consumption: approx 0.5W

• Rated Load: Max. 800W • Installation Height: 1.8-2.5m

Max. 400W • Detection Moving Speed: 0.6-1.5m/s

FUNCTION

• Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the

daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than

3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing

pattern.

• Time-Delay is added continually: When it receives the second induction signals within the rst induction, it will

restart to time from the moment.

Good sensitivity Poor sensitivity

INSTALLATION ADVICE

As the detector responds to changes in temperature, avoid the following situations:

• Avoid pointing the detector towards objects with highly reective surfaces, such as mirrors etc.

• Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.

• Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.

CONNECTION

Warning. Danger of death through electric shock!

Must be installed by professional electrician.

Disconnect power source.

Cover or shied any adjacent live components.

Ensure device cannot be switched on.

Check power supply is disconnected.

• Unload the cover near the detection window and adjust the TIME and LUX knob. If you need detection range less

then 360°, you can install the plastic cover above the detection window. (refer to gure1). Unscrew the screw below

the detection window and unload the bottom (refer to gure 2). Also unscrew the two screws at the bottom and

unload the bottom into two parts. (refer to gure 3 ).
