• Find the wire hole at the bottom and pass the power wire through the hole. Connect the power with the

connection-wire column according to the Connection-wire Diagram.

• Fix the bottom on the selected position with the inated screw.

• Fix the sensor at the bottom and tighten the screw. Switch on the power and then you can test it.

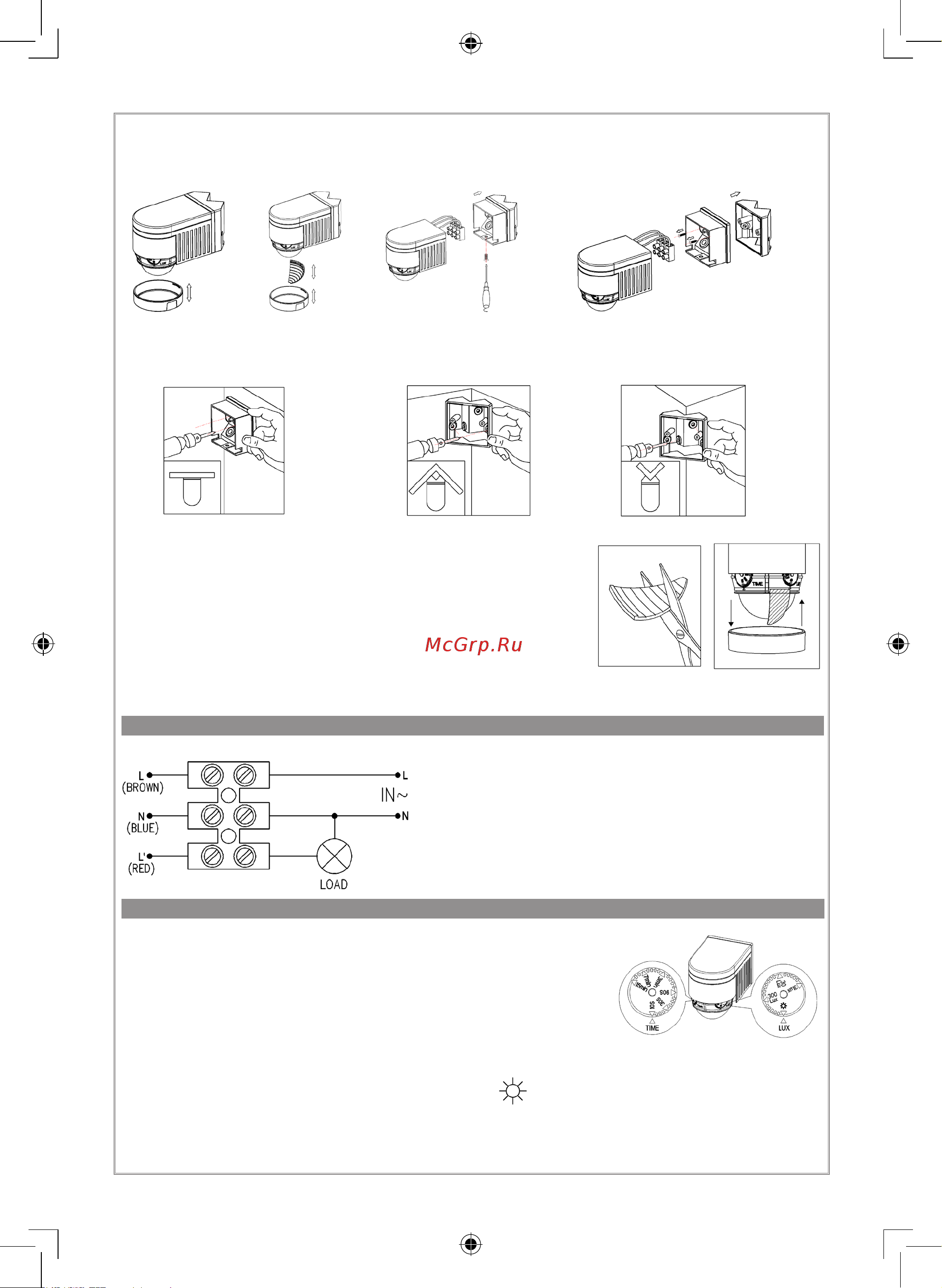

Figure 1 Figure 2 Figure 3

• It not only can install on the wall directly but also can install in the inner corner or outer corner with the help of the

widget (refer to photograph below).

Flat mounted Inner corner mounted

Outer corner mounted

Note: you can cut the plastic cover whatever shape you want and make

different detection range. (refer to right gure).

CONNECTION-WIRE DIAGRAM

See the right gure

TEST

• Turn the TIME knob anti-clockwise on the minimum (10s). Turn the LUX knob

clockwise on the maximum (sun)

• Switch on the power; the sensor and its connected lamp will have no signal at

the beginning. After Warm-up 30sec, the sensor can start work .If the sensor

receives the induction signal, the lamp will turn on. While there is no another

induction signal any more, the load should stop working within 10sec±3sec

and the lamp would turn off.

• Turn LUX knob anti-clockwise on the minimum (3LUX). If the ambient light is more than 3LUX, the sensor would

not work and the lamp stop working too. If the ambient light is less than 3LUX (darkness), the sensor

would work. Under no induction signal condition, the sensor should stop working within 10sec±3sec.

Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor lamp could

not work!
