Sven MS-908 [17/20] Ms 908

Operation Мanual

ENG

MS-908

2.1 Multimedia Speaker System

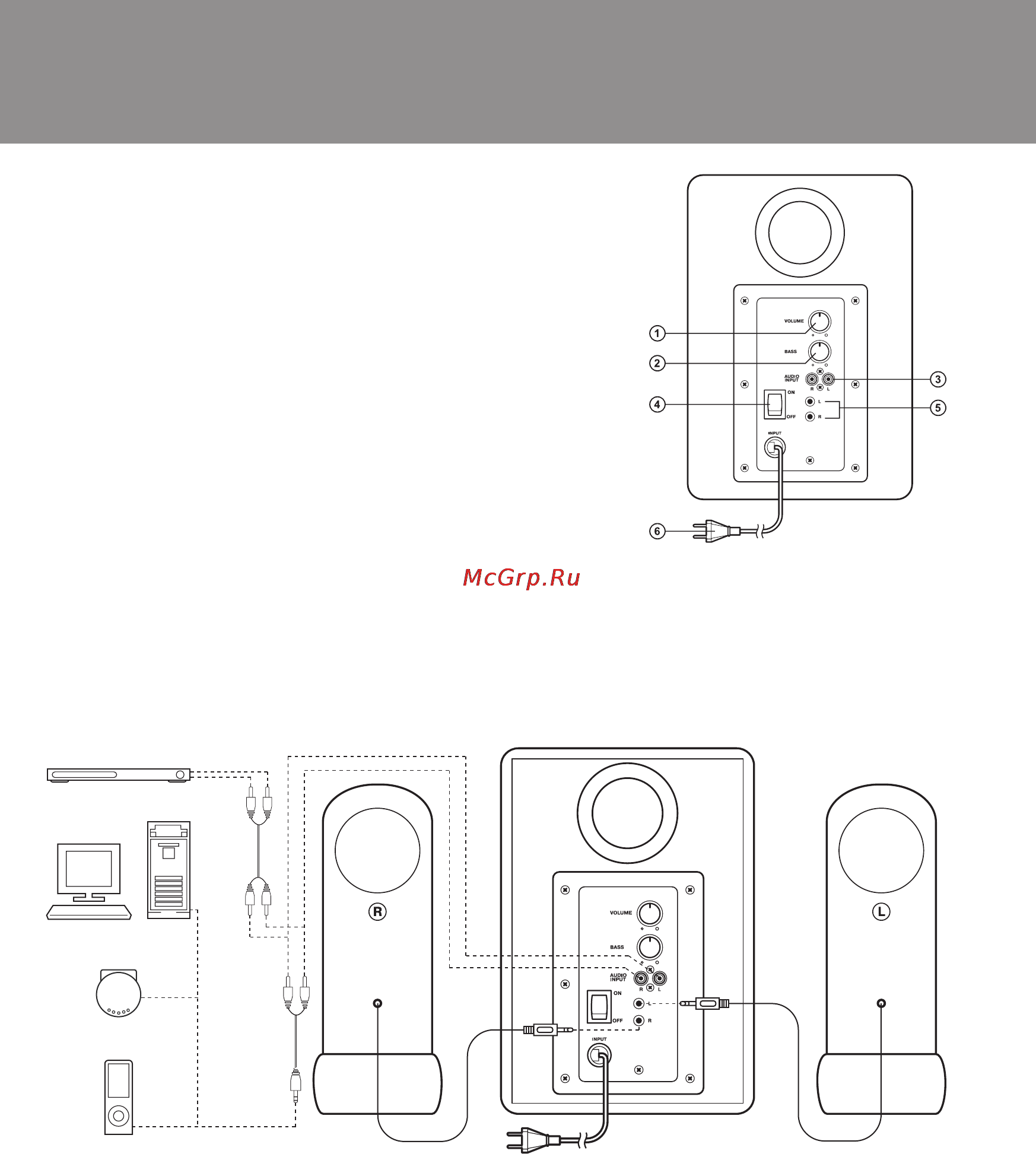

Fig. 2. Connection diagram

2RCA tо 2RCA

signal cable

2RCA tо mini-jack

signal cable

Player

Control panel

a VOLUME: Master volume control

b BASS: Bass level control

c AUDIO INPUT: Audio input

d Power switch

e AUDIO OUTPUT: audio output for satellites

f Power cord

5. PREPARATION AND OPERATION

Speaker placement

• Place the speakers symmetrically to the listener at least one

meter away. The subwoofer emits non-directional sound, therefore

it can be located in any place of the room where it sounds the best.

• Place MSS far away from monitors and TV sets, as insignificant

image distortion in these supersensitive devices is possible.

MSS сonnecting and control

WARNING! All components should be switched off before

connection.

• Connect the built-in audio cables to the audio outputs e on the rear panel of subwoofer (see Fig. 2).

• To connect the MSS to a PC or МР3/CD player, use the 2RCA – mini-jack signal cable (included). For

this at first plug the RCA jacks of the signal cable into input connector AUDIO INPUT of subwoofer c,

and another mini-jack of cable should be plugged in Ø 3.5 mm LINE OUT port of the computer sound

card or audio output of player as shown in Fig. 2.

Fig.1. Control panel

DVD
