ENG
23
Operation Manual
MS-2100
CD
PC
DVD
Player
FM
ANT
Right
speaker
FM antenna
2RCA to 2RCA
signal cable
2RCA to mini-jack
signal cable
AUX
PC
R
R
L
L
OFF
ON
Left
speaker
USB/SD-card
connection
CD player
AUD I O OUTPUT
RA DIO A NT
A
U
DIO IN
P
UT
R
L
POWER SWITCH

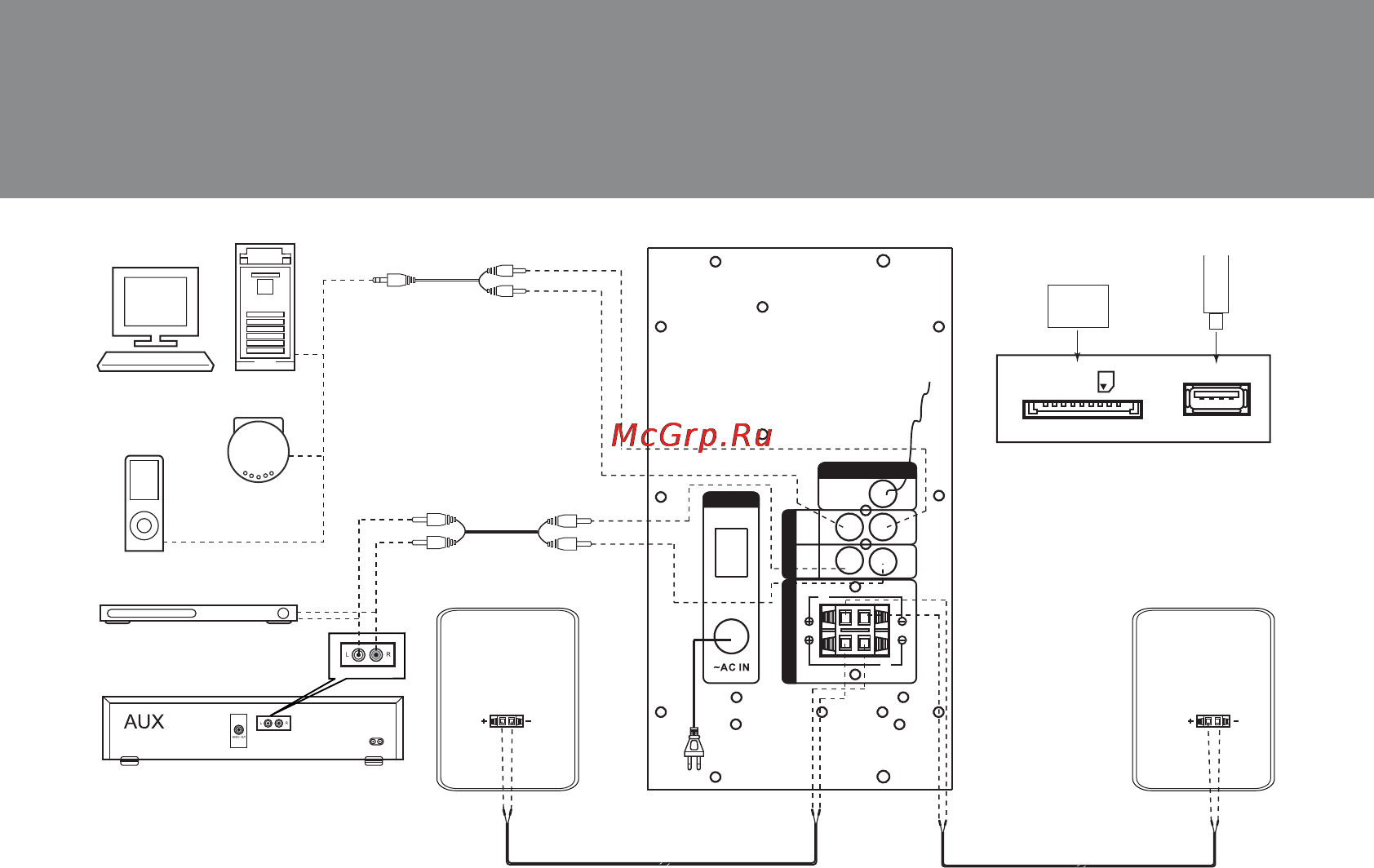

Fig. 4. Connection diagram
SD/MMC
CARD
USB
USB
SD
speaker – to the AUDIO OUTPUT L. Pay attention that the plus (red) cable wires of speakers must be
connected to the subwoofer plus terminals (+ → +) and the minus (
black)
cable wires of speakers – to the
subwoofer minus terminals (– → –) (see connection diagram in Fig. 4).
Note. Check the reliable fixation of wires in the terminals, polarity of connection and ab-
sence of contact of the bared wires with each other and the metal parts of the hardware.
• To connect the MSS to a PC, МР3/CD player, use a 2RCA to mini-jack signal cable (included).
Connect the RCA jacks of the signal cable to the L and R jacks of the PC AUDIO INPUT l, and the
mini-jack (Ø 3.5 mm) of the signal cable – to the LINE OUT port of your PC sound card or to the
audio output (OUTPUT) of your МР3/ CD player, as shown in Fig. 4.
• To connect the MSS to a TV or DVD/CD player, use the 2RCA to 2RCA signal cable (not included).
Connect the RCA jacks of the signal cable to the L and R jacks of the AUX AUDIO INPUT m, and the
other RCA jacks – to your TV or DVD/CD player audio output jacks, as shown in Fig. 4.
• Connect the subwoofer to the mains outlet with the power cord j.
• Turn on the MSS power supply using the ON/OFF switch (i, ON) on the subwoofer rear panel.
• Turn on the MSS using VOLUME knob h on the front panel or button q on the remote control.
• Select a desired signal source pressing short the INPUT button h on the control panel or pressing
the INPUT button a on the remote control.
• Adjust the master volume as desired with VOLUME knob h on the control panel or with the
VOL+/- buttons k on the remote control.
