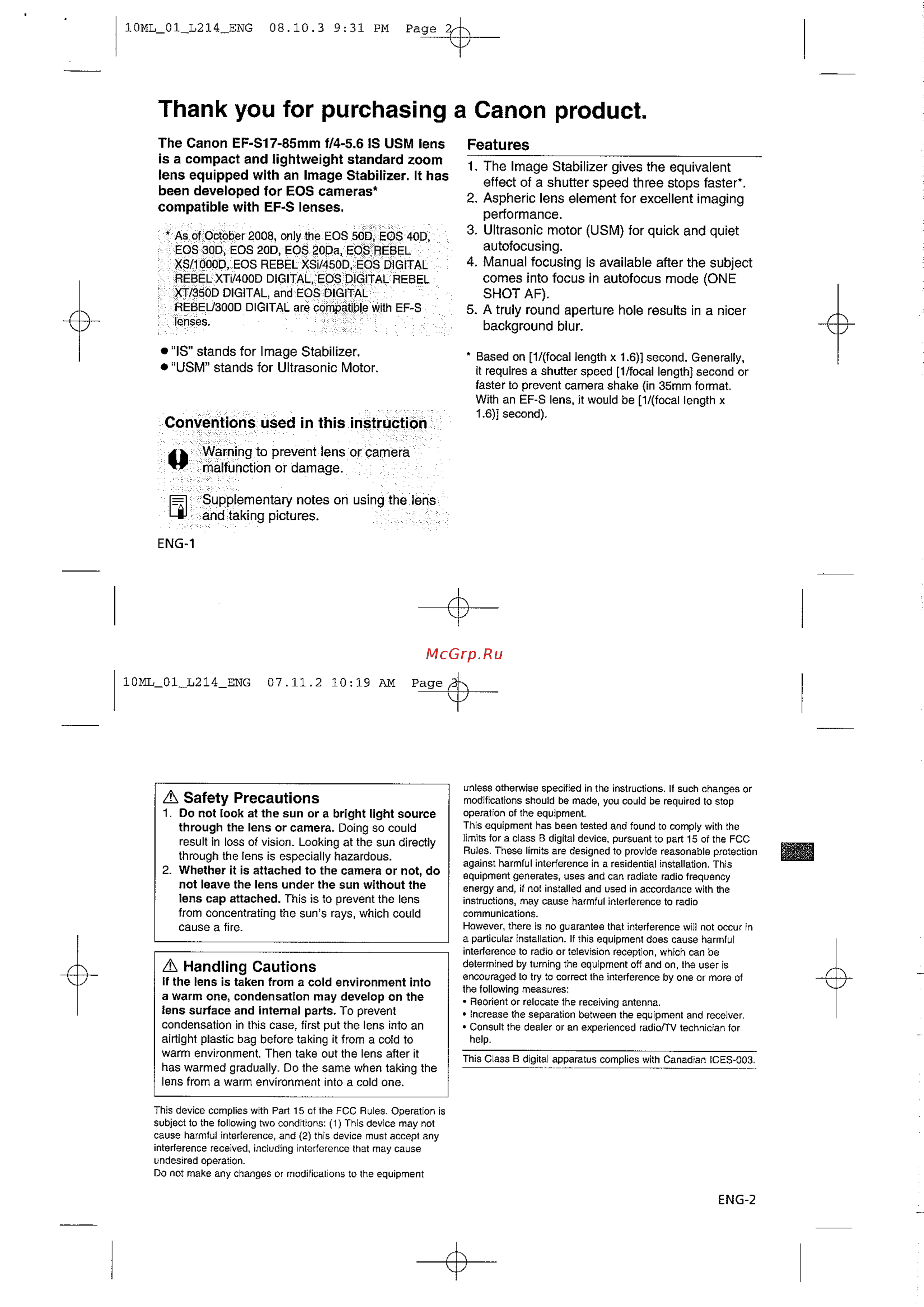

10ML_01_L214_ENG 08 10 3 9 31 PM Page Thank you for purchasing a Canon product The Canon EF S17 85mm f 4 5 6 IS USM lens Features is a compact and lightweight standard zoom 1 The Image Stabilizer gives the equivalent effect of a shutter speed three stops faster 2 Aspheric lens element for excellent imaging performance 3 Ultrasonic motor USM for quick and quiet autofocusing 4 Manual focusing Is available after the subject comes into focus in autofocus mode ONE SHOT AF 5 A truly round aperture hole results in a nicer background blur lens equipped with an Image Stabilizer It has been developed for EOS cameras compatible with EF S lenses As of October 2008 only the EOS 50D EOS 40D EOS 30D EOS 20D EOS 20Da EOS REBEL XS 1000D EOS REBEL XSI 450D EOS DIGITAL 1 REBEL XTI 400D DIGITAL EOS DIGITAL REBEL XT 350D DIGITAL and EOS DIGITAL REBEL 300D DIGITAL are compatible with EF S lenses IS stands for Image Stabilizer USM stands for Ultrasonic Motor Conventions used in this instruction Based on 1 focal length x 1 6 second Generally it requires a shutter speed 1 focal length second or faster to prevent camera shake in 35mm format With an EF S lens it would be 1 focal length x 1 6 second k Warning to prevent lens or camera malfunction or damage a Supplementary notes on using the lens and taking pictures ENG 1 10ML_01_L214_ENG 07 11 2 10 19 AM Page A Safety Precautions 1 Do not look at the sun or a bright light source through the lens or camera Doing so could result in loss of vision Looking at the sun directly through the lens is especially hazardous 2 Whether it is attached to the camera or not do not leave the lens under the sun without the lens cap attached This is to prevent the lens from concentrating the sun s rays which could cause a fire A Handling Cautions if the lens is taken from a cold environment into a warm one condensation may develop on the lens surface and internal parts To prevent condensation in this case first put the lens into an airtight plastic bag before taking it from a cold to warm environment Then take out the lens after it unless otherwise specified in the instructions If such changes or modifications should be made you could be required to stop operation of the equipment This equipment has been tested and found to comply with the limits for a class B digital device pursuant to part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications However there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Consult the dealer or an experienced radio TV technician for help This Class B digital apparatus complies with Canadian ICES 003 has warmed gradually Do the same when taking the lens from a warm environment into a cold one This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions 1 This device may not cause harmful interference and 2 this device must accept any interference received including interference that may cause undesired operation Do not make any changes or modifications to the equipment ENG 2
