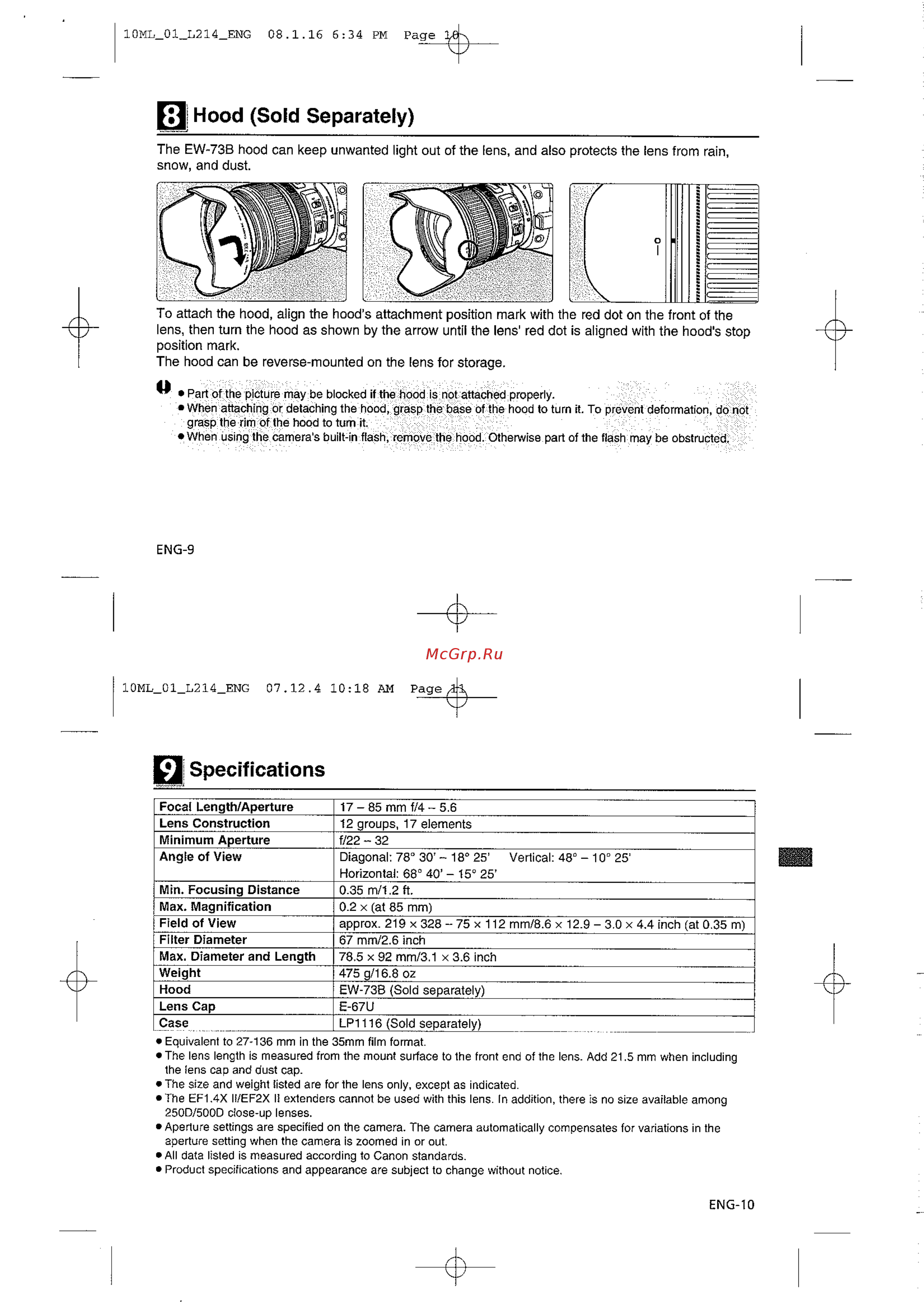

10ML_01_L214_ENG 08 1 16 6 34 PM Page Hood Sold Separately The EW 73B hood can keep unwanted light out of the lens and also protects the lens from rain snow and dust To attach the hood align the hood s attachment position mark with the red dot on the front of the lens then turn the hood as shown by the arrow until the lens red dot is aligned with the hood s stop position mark The hood can be reverse mounted on the lens for storage Part of the picture may be blocked if the hood is not attached properly When attaching or detaching the hood grasp the base of the hood to turn it To prevent deformation do not grasp the rim of the hood to turn it When using the camera s built in flash remove the hood Otherwise part of the flash may be obstructed ENG 9 10ML_01_L214_ENG 07 12 4 10 18 AM Page Specifications Focal Length Aperture 17 85 mmf 4 5 6 Lens Construction 12 groups 17 elements Minimum Aperture f 22 32 Angie of View Diagonal 78 30 18 25 Vertical 48 10 25 Min Focusing Distance 0 35 m 1 2ft Max Magnification 0 2 x at 85 mm Field of View approx 219 x 328 75 x 112 mm 8 6 x 12 9 3 0 x 4 4 inch at 0 35 m Horizontal 68 40 15 25 Filter Diameter 67 mm 2 6 inch Max Diameter and Length 78 5 x 92 mm 3 1 x 3 6 inch Weight 475 g 16 8 oz Hood EW 73B Sold separately Lens Cap E 67U Case LP1116 Sold separately Equivalent to 27 136 mm in the 35mm film format The lens length is measured from the mount surface to the front end of the lens Add 21 5 mm when including the lens cap and dust cap The size and weight listed are for the lens only except as indicated The EF1 4X II EF2X II extenders cannot be used with this lens In addition there is no size available among 250D 500D close up lenses Aperture settings are specified on the camera aperture setting when the camera is zoomed in or out All data listed is measured according to Canon standards The camera automatically compensates for variations in the Product specifications and appearance are subject to change without notice ENG 10
